设备树替换
Seeed在出厂烧录的固件中挂载的设备树为stm32mp1-seeed-npi-base.dtb,默认情况下此设备树是不支持Wi-Fi的，如需使用Wifi功能就需要挂载stm32mp1-seeed-npi-full.dtb这个设备树。

直接修改uEnv.txt文件，此文件会在uboot引导Linux内核的时候主动去加载/boot/dtbs/4.19.9-stm32-r1目录下指定的设备树文件。

1.打开uEnv.txt
vim /boot/uEnv.txt

2.编辑uEnv.txt文件将dtb修改为stm32mp1-seeed-npi-full.dtb

1. uname_r=4.19.9-stm32-r1

2. #uuid=

3. dtb=stm32mp1-seeed-npi-full.dtb                ##修改此处

4.

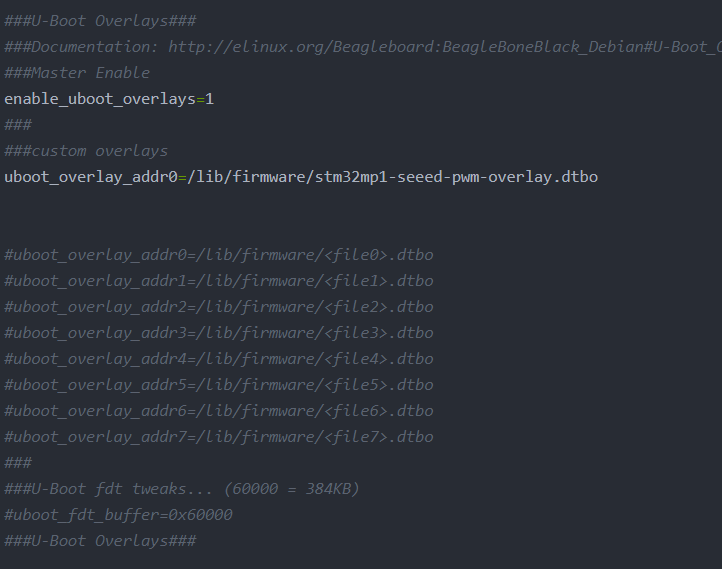

5. ###U-Boot Overlays###

6.

7. ###Master Enable

8. enable_uboot_overlays=1

9. ###

10. ###custom overlays

11. uboot_overlay_addr0=/lib/firmware/stm32mp1-seeed-pwm-overlay.dtbo

12.

13.

14. #uboot_overlay_addr0=/lib/firmware/<file0>.dtbo

15. #uboot_overlay_addr1=/lib/firmware/<file1>.dtbo

16. #uboot_overlay_addr2=/lib/firmware/<file2>.dtbo

17. #uboot_overlay_addr3=/lib/firmware/<file3>.dtbo

18. #uboot_overlay_addr4=/lib/firmware/<file4>.dtbo

19. #uboot_overlay_addr5=/lib/firmware/<file5>.dtbo

20. #uboot_overlay_addr6=/lib/firmware/<file6>.dtbo

21. #uboot_overlay_addr7=/lib/firmware/<file7>.dtbo

22. ###

23. ###U-Boot fdt tweaks... (60000 = 384KB)

24. #uboot_fdt_buffer=0x60000

25. ###U-Boot Overlays###

26.

27. cmdline=coherent_pool=1M net.ifnames=0 quiet

28.

29. #In the event of edid real failures, uncomment this next line:

30. #cmdline=coherent_pool=1M net.ifnames=0 quiet video=HDMI-A-1:1024x768@60e

31.

32. #Use an overlayfs on top of a read-only root filesystem:

33. #cmdline=coherent_pool=1M net.ifnames=0 quiet overlayroot=tmpfs

34.

35. ##enable Generic eMMC Flasher:

36. ##make sure, these tools are installed: dosfstools rsync

37. #cmdline=init=/opt/scripts/tools/eMMC/init-eMMC-flasher-v3-stm32mp1.sh

38.

39.

40. # specify kernel eth0 mac address

41. ethaddr=42:9a:42:e1:f7:23

复制代码

Wi-Fi连接

1. robot@ev3dev:~$ sudo connmanctl

2. Error getting VPN connections: The name net.connman.vpn was not provided by any

3. connmanctl> enable wifi

4. Enabled wifi

5. connmanctl> scan wifi

6. Scan completed for wifi

7. connmanctl> services

8. *AO Wired                ethernet_b827ebbde13c_cable

9.                          wifi_e8de27077de3_hidden_managed_none

10.     AH04044914           wifi_e8de27077de3_41483034303434393134_managed_psk

11.     Frissie              wifi_e8de27077de3_46726973736965_managed_psk

12.     ruijgt gast          wifi_e8de27077de3_7275696a67742067617374_managed_psk

13.     schuur               wifi_e8de27077de3_736368757572_managed_psk

14. connmanctl> agent on

15. Agent registered

16. connmanctl> connect wifi_e8de27077de3_41483034303434393134_managed_psk                ##对应的wifi名称的实际编码

17. Agent RequestInput wifi_e8de27077de3_41483034303434393134_managed_psk

18.   Passphrase = [ Type=psk, Requirement=mandatory ]

19. Passphrase? *************                        ##wifi密码

20. Connected wifi_e8de27077de3_41483034303434393134_managed_psk

21. connmanctl> quit

复制代码

我们可以使用下面的指令来找到ODYSSEY – STM32MP157C的IP地址：

1. ifconfig

复制代码

————————————————
版权声明：Argon_Ghost
