基于STM32的水质检测系统设计

[复制链接]

STMCU小助手发布时间：2022-12-7 16:03

文章
文章封面:
文章简介:	基于STM32的水质检测系统设计

一、题目要求

说明：（溶解氧浓度的硬件太贵就没做这个）
功能如下：
1.通过TFT屏实现实时各数据，可进行多级菜单切换
2.可以通过按键进行温度、PH、采集频率调节
3.可以通过语音控制温度、PH、采集频率的调节（SU-03T语音模块）
4.通过ESP8266将采取的数据上传到Onenet云端
5.采取的数据超过设置阈值会进行报警提示
6.大气压采取BMP180模块

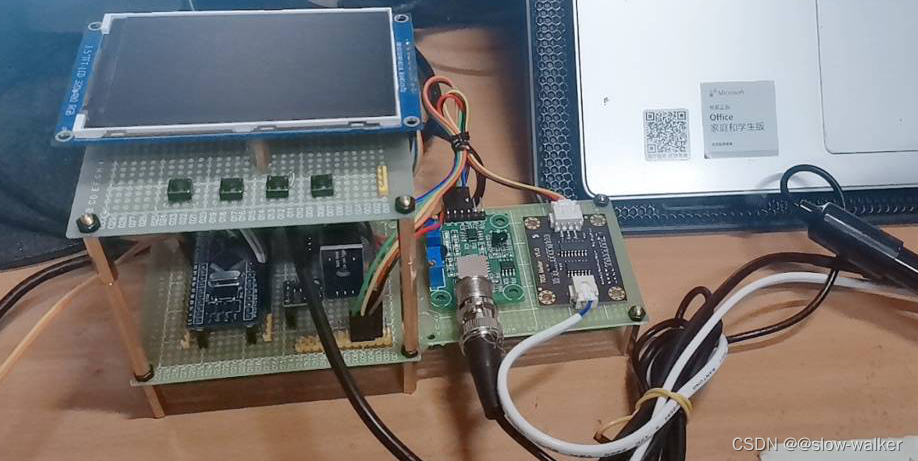

成品展示

二、硬件材料

$NG6{J5GIRT8S~SZ_C9OH4KV.png$

STM32F103C9T6最小系统

SU-03T语音模块

PH传感器模块（这个相对来说比较贵60几吧）

ESP8266模块

TDS传感器

BMP180大气压传感器

DS18B20温度传感器

TFT显示屏

蜂鸣器

三、部分代码

/*-----------------------main.c------------------*/
#include "led.h"
#include "delay.h"
#include "key.h"
#include "sys.h"
#include "lcd.h"
#include "lcd_init.h"
#include "beep.h"
#include "time.h"
#include "ds18b20.h"
#include "adc.h"
#include "bmp180.h"
#include "iic.h"
//外设层
#include "oled.h"
#include "usart.h"
#include "esp8266.h"
//网络协议层
#include "onenet.h"
//网络设备
#include "esp8266.h"
//c库
#include "string.h"
/*---------------------------------水质检测系统-----------------------------------*
Author:slow-walker
Date:2022-10-26
功能：
1.实时数据显示TFT屏 2.OneNet云平台数据显示（ESP8266远端传输） 3.ST-03T语音控制 4.按键调节
----------------------------------------------------------------------------------*/
/*--------------------------------------全局变量定义--------------------------------*/
unsigned int set_time = 1; //设置刷新数据的频率默认500ms 1s 2s
unsigned char time_flag = 0; //定时器开始标志
unsigned char display_flag = 0; //刷新标志
float temper = 15.0; //温度数据变量
float max_temper = 40.0,min_temper = 0.0,PH_Set = 7.0; //温度设置阀值 0-50 默认为最大值
unsigned char key_value = 0,key = 0;
unsigned char Index = 0,flag_function = 0; //界面索引
float ph, tds,p; //ph 浊度大气压
unsigned char buzzer_flag = 0;//警报标志
/*-------------------------------------界面显示函数---------------------------------*/
/*-------------------------------功能操作界面--------------------------*/
void Init_Interface(void)
{
static unsigned int i = 0;
LCD_ShowChinese(80,0,(unsigned char *)"欢迎使用水质监测系统",RED,Q_BLUE,32,0);
LCD_ShowString(90,40,(unsigned char *)"Author:Slow-Walker",RED,GREEN,32,0);
LCD_ShowString(110,80,(unsigned char *)"Date:2022-10-26",RED,GREEN,32,0);
LCD_ShowString(140,240,(unsigned char *)"WIFI",RED,GREEN,32,0);
LCD_ShowChinese(220,240,(unsigned char *)"加载中",RED,GREEN,32,0);
while(i*8 < 472)
{
LCD_ShowString(i*8,280,(unsigned char *)".",RED, WHITE,32,0);
delay_ms(50);
i++;
}
delay_ms(500);
//LCD_ShowChinese(140,240,(unsigned char *)"加载成功",RED,GREEN,32,0);
//LCD_Init();
}
void Interface1(void)
{
LCD_ShowChinese(80,0,(unsigned char *)"欢迎使用水质监测系统",RED,Q_BLUE,32,0);
LCD_ShowChinese(150,120,(unsigned char *)"参数查看",RED,GREEN,32,0);
LCD_ShowChinese(150,160,(unsigned char *)"参数设置",RED,GREEN,32,0);
}
void Interface2(void)
{
LCD_ShowChinese(80,0,(unsigned char *)"欢迎使用水质监测系统",RED,Q_BLUE,32,0);
LCD_ShowChinese(120,80,(unsigned char *)"温度阈值：",RED,GREEN,32,0);
LCD_ShowFloatNum1(320,80,max_temper,4,RED,GREEN,32);
LCD_ShowChinese(120,120,(unsigned char *)"当前温度：",RED,GREEN,32,0);
LCD_ShowFloatNum1(320,120,temper,4,RED,GREEN,32);
LCD_ShowChinese(120,160,(unsigned char *)"当前",RED,GREEN,32,0);
LCD_ShowString(200,160,(unsigned char *)"PH",RED,GREEN,32,0);
LCD_ShowFloatNum1(320,160,ph,4,RED,GREEN,32);
LCD_ShowChinese(120,200,(unsigned char *)"大气压值：",RED,GREEN,32,0);
LCD_ShowIntNum(320,200,bmp180.p,6,RED,GREEN,32);
LCD_ShowChinese(120,240,(unsigned char *)"水电导率：",RED,GREEN,32,0);
LCD_ShowFloatNum1(320,240,tds,6,RED,GREEN,32);
}
void Interface3(void)
{
LCD_ShowChinese(80,0,(unsigned char *)"欢迎使用水质监测系统",RED,Q_BLUE,32,0);
LCD_ShowChinese(120,80,(unsigned char *)"温度阈值",RED,GREEN,32,0);
LCD_ShowFloatNum1(320,80,max_temper,4,RED,GREEN,32);
LCD_ShowString(120,120,(unsigned char *)"PH",RED,GREEN,32,0);
LCD_ShowChinese(200,120,(unsigned char *)"阈值",RED,GREEN,32,0);
LCD_ShowFloatNum1(320,120,PH_Set,4,RED,GREEN,32);
LCD_ShowChinese(120,160,(unsigned char *)"刷新频率：",RED,GREEN,32,0);
LCD_ShowIntNum(320,160,set_time,1,RED,GREEN,32);
}
void Interface4(void)
{
LCD_ShowChinese(80,0,(unsigned char *)"欢迎使用水质监测系统",RED,Q_BLUE,32,0);
LCD_ShowChinese(120,120,(unsigned char *)"温度阈值",RED,GREEN,32,0);
LCD_ShowFloatNum1(320,120,max_temper,4,RED,GREEN,32);
}
void Interface5(void)
{
LCD_ShowChinese(80,0,(unsigned char *)"欢迎使用水质监测系统",RED,Q_BLUE,32,0);
LCD_ShowString(120,120,(unsigned char *)"PH",RED,GREEN,32,0);
LCD_ShowChinese(200,120,(unsigned char *)"阈值",RED,GREEN,32,0);
LCD_ShowFloatNum1(320,120,PH_Set,4,RED,GREEN,32);
}
void Interface6(void)
{
LCD_ShowChinese(80,0,(unsigned char *)"欢迎使用水质监测系统",RED,Q_BLUE,32,0);
LCD_ShowChinese(120,120,(unsigned char *)"刷新频率：",RED,GREEN,32,0);
LCD_ShowIntNum(320,120,set_time,1,RED,GREEN,32);
}
/*----------------------------------按键操作函数--------------------------------------*/
unsigned char Key_Mode(void)
{
key_value = KEY_Scan(); //按键1来进行模式的切换
//按键每按一下蜂鸣器响200ms然后关掉按键提示音
if(key_value)
{
LCD_Init();
}
if(key_value == 1) //判断按键1是否被按下
{
Index++;
BEEP_ON();
delay_ms(200);
BEEP_OFF();
delay_ms(200);
}
if(key_value == 2) //判断按键1是否被按下
{
Index--;
BEEP_ON();
delay_ms(200);
BEEP_OFF();
delay_ms(200);
}
switch(Index)
{
case 1: Interface1();break;
case 2: Interface2();break;
case 3: Interface3();break;
case 4: Interface4();flag_function = 3;break;
case 5: Interface5();flag_function = 4;break;
case 6: Interface6();flag_function = 5;break;
default:break;
}
key_value = 0;
return flag_function; //返回功能函数的标志位
}
void Param_Set(void)
{
unsigned char keyvalue = 0;
keyvalue = KEY_Scan(); //按键1来进行模式的切换
//按键每按一下蜂鸣器响200ms然后关掉按键提示音
if(flag_function == 3)
{
if(keyvalue == 3)
{
BEEP_ON();
delay_ms(200);
BEEP_OFF();
max_temper += 2;
if(max_temper >= 50)
{
max_temper = 50;
}
}
if(keyvalue == 4)
{
BEEP_ON();
delay_ms(200);
BEEP_OFF();
max_temper -= 2;
if(max_temper == 0)
{
max_temper = 0;
}
}
}
else if(flag_function == 4)
{
if(keyvalue == 3)
{
BEEP_ON();
delay_ms(200);
BEEP_OFF();
PH_Set += 1;
}
if(keyvalue == 4)
{
BEEP_ON();
delay_ms(200);
BEEP_OFF();
PH_Set -= 1;
}
}
else if(flag_function == 5)
{
if(keyvalue == 3)
{
BEEP_ON();
delay_ms(200);
BEEP_OFF();
set_time += 1;
if(set_time > 3)
{
set_time = 3;
}
}
if(keyvalue == 4)
{
BEEP_ON();
delay_ms(200);
BEEP_OFF();
set_time -= 1;
if(set_time == 1)
{
set_time = 1;
}
}
}
flag_function = 0;
keyvalue = 0;
}
/*-------------------------------------主函数-----------------------------------------*/
int main(void)
{
unsigned char *dataPtr = NULL;
unsigned short timeCount = 0; //发送间隔变量
delay_init(); //延时函数初始化
NVIC_Configuration(); //设置NVIC中断分组2:2位抢占优先级，2位响应优先级
Led_Init(); //LED端口初始化
Adc_Init(); //adc初始化
KEY_Init(); //按键初始化
Beep_Init(); //蜂鸣器初始化
Time_Init(); //定时器2初始化
DS18B20_Init();
BMP_Init();
BMP_ReadCalibrationData();
delay_ms(50);
uart_init(9600);//串口1初始化
uart3_init(115200); //串口3初始化
LCD_Init(); //LCD初始化
LCD_Fill(0,0,LCD_W,LCD_H,GREEN); //LCD屏颜色初始化
Init_Interface(); //初始界面显示
ESP8266_Init(); //初始化ESP8266
printf("8266_INIT_END\n");
while(OneNet_DevLink()) //接入OneNET
delay_ms(500);
printf("接入onenet成功");
LCD_ShowString(140,240,(unsigned char *)"WIFI",RED,GREEN,32,0);
LCD_ShowChinese(220,240,(unsigned char *)"加载成功",RED,GREEN,32,0);
delay_ms(500);
while(1)
{
if(display_flag)
{
display_flag = 0;
temper = DS18B20_GetTemperture(); //读取温度
Get_PH_and_TUR(); //获取PH这里没有读取浊度
Get_TDS(); //TDS 水电导率
BMP_UncompemstatedToTrue(); //大气压
}
//测量的温度不在温度范围内进行蜂鸣器报警
if( temper > max_temper)
{
buzzer_flag = 1;
BEEP_ON();
delay_ms(300);
BEEP_OFF();
delay_ms(300);
}
else
{
buzzer_flag = 0;
BEEP_OFF();
}
//PH超出阈值后报警
if( ph > PH_Set)
{
buzzer_flag = 1;
BEEP_ON();
delay_ms(300);
BEEP_OFF();
delay_ms(300);
}
else
{
buzzer_flag = 0;
BEEP_OFF();
}
//
//printf("PH = %.1f TDS = %.2f Temper = %.2f Press:%ld\r\n",ph,tds,temper,bmp180.p);
//delay_ms(200);
//key = Key_Mode();
// printf( "OneNet_SendData\r\n");//通过串口1发送提示信息（要开始发送数据了）
OneNet_SendData();//发送数据给onenet
// printf("send_data_end\n");
delay_ms(100);
ESP8266_Clear();
dataPtr = ESP8266_GetIPD(0);//获取平台返回的数据
if(dataPtr != NULL)//如果返回数据不为空
OneNet_RevPro(dataPtr);//平台返回数据检测
delay_ms(100);
}
}
/*-----------------------100ms定时器中断处理---------------------*/
void TIM2_IRQHandler(void) //TIM2 中断
{
static unsigned char count = 0,t = 0;
if(TIM_GetITStatus(TIM2, TIM_IT_Update) != RESET) //检查 TIM2 更新中断发生与否
{
count++;
t++;
if(count >= set_time) //set_time 通过按键来改变
{
display_flag = 1;
count = 0; //计数清零
}
if(t == 10)
{
Key_Mode();
Param_Set();
t = 0;
}
TIM_ClearITPendingBit(TIM2, TIM_IT_Update ); //清除 TIM2 更新中断标志
}
}
/*-------------------------------串口中断服务函数-------------------------*/
void USART1_IRQHandler(void)
{
char cmd = 0,Alarm = 0;
if(USART_GetITStatus(USART1, USART_IT_RXNE) != RESET) //接收中断
{
cmd = USART_ReceiveData(USART1);
//printf("%c",cmd);
if(cmd == 0xAA)
{
max_temper++;
}
else if(cmd == 0xBB)
{
max_temper--;
}
else if(cmd == 0xCC)
{
PH_Set++;
}
else if(cmd == 0**)
{
PH_Set--;
}
else if(cmd == 0xEE)
{
for(Alarm =0;Alarm<8;Alarm++)
{
BEEP_ON();
delay_ms(300);
BEEP_OFF();
delay_ms(300);
}
}
else if(cmd == 0xFF)
{
//Alarm = 0;
BEEP_OFF();
}
else if(cmd == 0xCD)
{
set_time = 1; //500ms
}
else if(cmd == 0xDE)
{
set_time = 2;//2s
}
else if(cmd == 0xEF)
{
set_time = 3; //3.5s
}
USART_ClearFlag(USART1, USART_FLAG_RXNE);
}
}
