ST NUCLEO-U575ZI HAL移植U8G2的测评

[复制链接]
STMCU小助手 发布时间：2023-1-10 15:51

原来在arduino上使用了u8g2.今天偿试用stm32cubeIde进行移植。

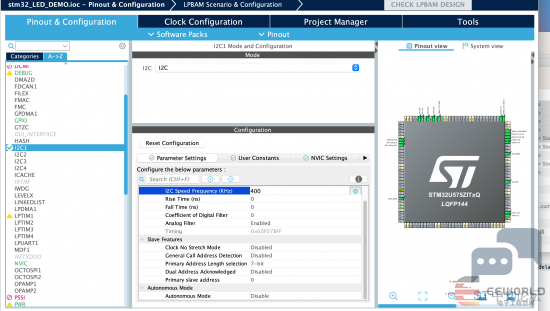

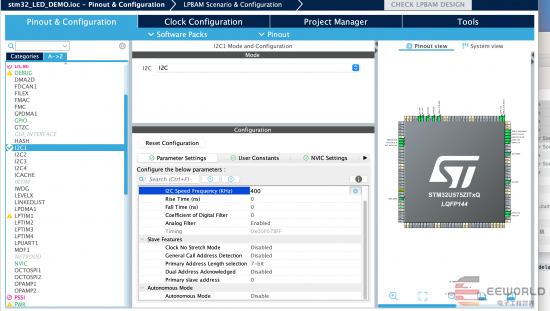

一、用stm32cubeIDE进行配置i2c:

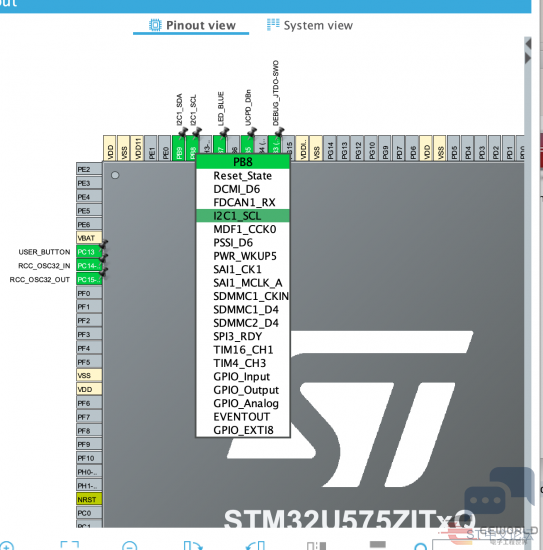

  这次用到的为PB8-SCL、PB9-SDA，在管脚上配置好：




保存生成工程文件。


二、下载u8g2

下载后解压，把csrc整个目录拷到IDE的目录下面。把工程添加到工程里面：

项目右键

--properties

----C/C++ General

------Paths and Symbols

--------Includes

----------Add

------------WorkSpaces

--------------选择自己在项目中新建的文件夹

大家记得把Release也要加一下，要不然编译时老是提示找不到头文件。

二、删除多除的以8x8-d的其他屏的驱动文件

我这里只留下 u8x8_d_ssd1306_128x64_noname.c


三、删除u8g2_d_setup.c文件里面其他不用的文件，我这里只留下了：

  1. /* u8g2_d_setup.c */
  2. /* generated code, codebuild, u8g2 project */

  4. #include "u8g2.h"


  7. /* ssd1306 f */
  8. void u8g2_Setup_ssd1306_i2c_128x64_noname_f(u8g2_t *u8g2, const u8g2_cb_t *rotation, u8x8_msg_cb byte_cb, u8x8_msg_cb gpio_and_delay_cb)
  9. {
  10.   uint8_t tile_buf_height;
  11.   uint8_t *buf;
  12.   u8g2_SetupDisplay(u8g2, u8x8_d_ssd1306_128x64_noname, u8x8_cad_ssd13xx_fast_i2c, byte_cb, gpio_and_delay_cb);
  13.   buf = u8g2_m_16_8_f(&tile_buf_height);
  14.   u8g2_SetupBuffer(u8g2, buf, tile_buf_height, u8g2_ll_hvline_vertical_top_lsb, rotation);
  15. }

  17. /* end of generated code */
复制代码


四、新建oled.h、oled.c以及测试test.h、test.c

  1. /*
  2. * oled.h
  3. *
  4. *  Created on: Dec 20, 2022
  5. *      Author: liujianhua
  6. */

  8. #ifndef INC_OLED_H_
  9. #define INC_OLED_H_
  10. #ifdef __cplusplue
  11.         extern "C" {
  12. #endif
  13. #include "main.h"
  14. #include "u8g2.h"

  16. #define u8 unsigend char
  17. #define MAX_LEN 128
  18. #define OLED_ADDRES 0x78
  19. #define OLED_CMD 0x00
  20. #define OLED_DATA 0x40

  22. /* USER CODE BEGIN Prototypes */
  23.         uint8_t u8x8_byte_hw_i2c(u8x8_t *u8x8, uint8_t msg, uint8_t arg_int, void *arg_ptr);
  24.         uint8_t u8x8_gpio_and_delay(u8x8_t *u8x8, uint8_t msg, uint8_t arg_int, void *arg_ptr);
  25.         void u8g2Init(u8g2_t *u8g2);
  26. #ifdef __cplusplue
  27.         }
  28. #endif

  30. #endif /* INC_OLED_H_ */
复制代码
  1. /*
  2. * oled.c
  3. *
  4. *  Created on: Dec 20, 2022
  5. *      Author: liujianhua
  6. */
  7. #include "oled.h"
  8. #include "main.h"
  9. #include "stm32u5xx_hal_i2c.h"

  11. extern I2C_HandleTypeDef hi2c1;
  12. uint8_t u8x8_byte_hw_i2c(u8x8_t *u8x8, uint8_t msg, uint8_t arg_int, void *arg_ptr)
  13. {
  14.     /* u8g2/u8x8 will never send more than 32 bytes between START_TRANSFER and END_TRANSFER */
  15.     static uint8_t buffer[128];
  16.     static uint8_t buf_idx;
  17.     uint8_t *data;

  19.     switch (msg)
  20.     {
  21.     case U8X8_MSG_BYTE_INIT:
  22.     {
  23.         /* add your custom code to init i2c subsystem */
  24.         //MX_I2C1_Init(); //I2C初始化
  25.     }
  26.     break;

  28.     case U8X8_MSG_BYTE_START_TRANSFER:
  29.     {
  30.         buf_idx = 0;
  31.     }
  32.     break;

  34.     case U8X8_MSG_BYTE_SEND:
  35.     {
  36.         data = (uint8_t *)arg_ptr;

  38.         while (arg_int > 0)
  39.         {
  40.             buffer[buf_idx++] = *data;
  41.             data++;
  42.             arg_int--;
  43.         }
  44.     }
  45.     break;

  47.     case U8X8_MSG_BYTE_END_TRANSFER:
  48.     {
  49.         if (HAL_I2C_Master_Transmit(&hi2c1, (OLED_ADDRES), buffer, buf_idx, 1000) != HAL_OK)
  50.             return 0;
  51.     }
  52.     break;

  54.     case U8X8_MSG_BYTE_SET_DC:
  55.         break;

  57.     default:
  58.         return 0;
  59.     }

  61.     return 1;
  62. }

  64. void delay_us(uint32_t time)
  65. {
  66.     uint32_t i = 8 * time;
  67.     while (i--)
  68.         ;
  69. }

  71. uint8_t u8x8_gpio_and_delay(u8x8_t *u8x8, uint8_t msg, uint8_t arg_int, void *arg_ptr)
  72. {
  73.     switch (msg)
  74.     {
  75.     case U8X8_MSG_DELAY_100NANO: // delay arg_int * 100 nano seconds
  76.         __NOP();
  77.         break;
  78.     case U8X8_MSG_DELAY_10MICRO: // delay arg_int * 10 micro seconds
  79.         for (uint16_t n = 0; n < 320; n++)
  80.         {
  81.             __NOP();
  82.         }
  83.         break;
  84.     case U8X8_MSG_DELAY_MILLI: // delay arg_int * 1 milli second
  85.         HAL_Delay(1);
  86.         break;
  87.     case U8X8_MSG_DELAY_I2C: // arg_int is the I2C speed in 100KHz, e.g. 4 = 400 KHz
  88.         delay_us(5);
  89.         break;                    // arg_int=1: delay by 5us, arg_int = 4: delay by 1.25us
  90.     case U8X8_MSG_GPIO_I2C_CLOCK: // arg_int=0: Output low at I2C clock pin
  91.         break;                    // arg_int=1: Input dir with pullup high for I2C clock pin
  92.     case U8X8_MSG_GPIO_I2C_DATA:  // arg_int=0: Output low at I2C data pin
  93.         break;                    // arg_int=1: Input dir with pullup high for I2C data pin
  94.     case U8X8_MSG_GPIO_MENU_SELECT:
  95.         u8x8_SetGPIOResult(u8x8, /* get menu select pin state */ 0);
  96.         break;
  97.     case U8X8_MSG_GPIO_MENU_NEXT:
  98.         u8x8_SetGPIOResult(u8x8, /* get menu next pin state */ 0);
  99.         break;
  100.     case U8X8_MSG_GPIO_MENU_PREV:
  101.         u8x8_SetGPIOResult(u8x8, /* get menu prev pin state */ 0);
  102.         break;
  103.     case U8X8_MSG_GPIO_MENU_HOME:
  104.         u8x8_SetGPIOResult(u8x8, /* get menu home pin state */ 0);
  105.         break;
  106.     default:
  107.         u8x8_SetGPIOResult(u8x8, 1); // default return value
  108.         break;
  109.     }
  110.     return 1;
  111. }
  112. void u8g2Init(u8g2_t *u8g2)
  113. {

  115.         u8g2_Setup_ssd1306_i2c_128x64_noname_f(u8g2, U8G2_R0, u8x8_byte_hw_i2c, u8x8_gpio_and_delay); // 初始化 u8g2 结构体(u8g2, U8G2_R0, u8x8_byte_hw_i2c, u8x8_gpio_and_delay); // 初始化 u8g2 结构体
  116.         u8g2_InitDisplay(u8g2);                                                                       // 根据所选的芯片进行初始化工作，初始化完成后，显示器处于关闭状态
  117.         u8g2_SetPowerSave(u8g2, 0);                                                                   // 打开显示器
  118.         u8g2_ClearBuffer(u8g2);
  119. }




  124. /*
  125. * test.h
  126. *
  127. *  Created on: Dec 20, 2022
  128. *      Author: liujianhua
  129. */

  131. #ifndef INC_TEST_H_
  132. #define INC_TEST_H_


  135. #include "main.h"
  136. #include "u8g2.h"

  138. void testDrawProcess(u8g2_t *u8g2);
  139. void testShowFont(u8g2_t *u8g2);
  140. void testDrawFrame(u8g2_t *u8g2);
  141. void testDrawRBox(u8g2_t *u8g2);
  142. void testDrawCircle(u8g2_t *u8g2);
  143. void testDrawFilledEllipse(u8g2_t *u8g2);
  144. void testDrawMulti(u8g2_t *u8g2);
  145. void testDrawXBM(u8g2_t *u8g2);

  147. void u8g2DrawTest(u8g2_t *u8g2);


  150. #endif /* INC_TEST_H_ */
复制代码
  1. /*
  2. * test.c
  3. *
  4. *  Created on: Dec 20, 2022
  5. *      Author: liujianhua
  6. */

  8. #include "test.h"

  10. //---------------U8g2测试函数

  12. #define SEND_BUFFER_DISPLAY_MS(u8g2, ms)\
  13.   do {\
  14.     u8g2_SendBuffer(u8g2); \
  15.     HAL_Delay(ms);\
  16.   }while(0);


  19. //进度条显示
  20. void testDrawProcess(u8g2_t *u8g2)
  21. {
  22.         for(int i=10;i<=80;i=i+2)
  23.         {
  24.                 u8g2_ClearBuffer(u8g2);

  26.                 char buff[20];
  27.                 sprintf(buff,"%d%%",(int)(i/80.0*100));

  29.                 u8g2_SetFont(u8g2,u8g2_font_ncenB12_tf);
  30.                 u8g2_DrawStr(u8g2,16,32,"STM32 U8g2");//字符显示

  32.                 u8g2_SetFont(u8g2,u8g2_font_ncenB08_tf);
  33.                 u8g2_DrawStr(u8g2,100,49,buff);//当前进度显示

  35.                 u8g2_DrawRBox(u8g2,16,40,i,10,4);//圆角填充框矩形框
  36.                 u8g2_DrawRFrame(u8g2,16,40,80,10,4);//圆角矩形

  38.                 u8g2_SendBuffer(u8g2);
  39.         }
  40.         HAL_Delay(500);
  41. }


  44. //字体测试 数字英文可选用 u8g2_font_ncenB..(粗) 系列字体
  45. //u8g2_font_unifont_t_symbols/u8g2_font_unifont_h_symbols(细 圆润)
  46. void testShowFont(u8g2_t *u8g2)
  47. {
  48.         int t = 1000;
  49.         char testStr[14] = "STM32U575";

  51.         u8g2_ClearBuffer(u8g2);

  53.         u8g2_SetFont(u8g2,u8g2_font_u8glib_4_tf);
  54.         u8g2_DrawStr(u8g2,0,5,testStr);
  55.         SEND_BUFFER_DISPLAY_MS(u8g2,t);

  57.         u8g2_SetFont(u8g2,u8g2_font_ncenB08_tf);
  58.         u8g2_DrawStr(u8g2,0,30,testStr);
  59.         SEND_BUFFER_DISPLAY_MS(u8g2,t);

  61.     u8g2_SetFont(u8g2,u8g2_font_ncenB10_tr);
  62.         u8g2_DrawStr(u8g2,0,60,testStr);
  63.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  64. }

  66. //画空心矩形
  67. void testDrawFrame(u8g2_t *u8g2)
  68. {
  69.         int t = 1000;
  70.         int x = 16;
  71.         int y = 32;
  72.         int w = 50;
  73.         int h = 20;
  74.         u8g2_ClearBuffer(u8g2);
  75.         u8g2_DrawStr(u8g2,0, 15, "DrawFrame");

  77.         u8g2_DrawFrame(u8g2, x, y, w, h);
  78.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  79.         u8g2_DrawFrame(u8g2, x+w+5, y-10, w-20, h+20);
  80.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  81. }

  83. //画实心圆角矩形
  84. void testDrawRBox(u8g2_t *u8g2)
  85. {
  86.         int t = 1000;
  87.         int x = 16;
  88.         int y = 32;
  89.         int w = 50;
  90.         int h = 20;
  91.         int r = 3;
  92.         u8g2_ClearBuffer(u8g2);
  93.         u8g2_DrawStr(u8g2,0, 15, "DrawRBox");

  95.         u8g2_DrawRBox(u8g2, x, y, w, h, r);
  96.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  97.         u8g2_DrawRBox(u8g2, x+w+5, y-10, w-20, h+20, r);
  98.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  99. }

  101. //画空心圆
  102. void testDrawCircle(u8g2_t *u8g2)
  103. {
  104.         int t = 600;
  105.         int stx = 0;  //画图起始x
  106.         int sty = 16; //画图起始y
  107.         int with = 16;//一个图块的间隔
  108.         int r = 15;   //圆的半径
  109.         u8g2_ClearBuffer(u8g2);
  110.         u8g2_DrawStr(u8g2, 0, 15, "DrawCircle");

  112.         u8g2_DrawCircle(u8g2, stx, sty - 1 + with, r, U8G2_DRAW_UPPER_RIGHT); //右上
  113.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  114.         u8g2_DrawCircle(u8g2, stx + with, sty, r, U8G2_DRAW_LOWER_RIGHT); //右下
  115.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  116.         u8g2_DrawCircle(u8g2, stx - 1 + with * 3, sty - 1 + with, r, U8G2_DRAW_UPPER_LEFT); //左上
  117.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  118.         u8g2_DrawCircle(u8g2, stx - 1 + with * 4, sty, r, U8G2_DRAW_LOWER_LEFT); //左下
  119.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  120.         u8g2_DrawCircle(u8g2, stx - 1 + with * 2, sty - 1 + with * 2, r, U8G2_DRAW_ALL);//整个圆
  121.         SEND_BUFFER_DISPLAY_MS(u8g2,t);

  123.     u8g2_DrawCircle(u8g2, 32*3, 32, 31, U8G2_DRAW_ALL);//右侧整个圆
  124.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  125. }

  127. //画实心椭圆
  128. void testDrawFilledEllipse(u8g2_t *u8g2)
  129. {
  130.         int t = 800;
  131.         int with = 16;//一个图块的间隔
  132.         int rx = 27;  //椭圆x方向的半径
  133.         int ry = 22;  //椭圆y方向的半径
  134.         u8g2_ClearBuffer(u8g2);
  135.         u8g2_DrawStr(u8g2,0, 14, "DrawFilledEllipse");

  137.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  138.         u8g2_DrawFilledEllipse(u8g2, 0, with, rx, ry, U8G2_DRAW_LOWER_RIGHT);//右下
  139.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  140.         u8g2_DrawFilledEllipse(u8g2, with * 4 - 1, with, rx, ry, U8G2_DRAW_LOWER_LEFT); //左下
  141.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  142.         u8g2_DrawFilledEllipse(u8g2, 0, with * 4 - 1, rx, ry, U8G2_DRAW_UPPER_RIGHT); //右上
  143.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  144.         u8g2_DrawFilledEllipse(u8g2, with * 4 - 1, with * 4 - 1, rx, ry, U8G2_DRAW_UPPER_LEFT); //左上
  145.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  146.         u8g2_DrawFilledEllipse(u8g2, with * 6, with * 2.5, rx, ry, U8G2_DRAW_ALL);//整个椭圆
  147.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  148. }

  150. //环形测试
  151. void testDrawMulti(u8g2_t *u8g2)
  152. {
  153.         u8g2_ClearBuffer(u8g2);
  154.         for (int j = 0; j < 64; j+=16)
  155.         {
  156.                 for (int i = 0; i < 128; i+=16)
  157.                 {
  158.                         u8g2_DrawPixel(u8g2, i, j);
  159.                         u8g2_SendBuffer(u8g2);
  160.                 }
  161.         }

  163.         //实心矩形逐渐变大
  164.     u8g2_ClearBuffer(u8g2);
  165.         for(int i=30; i>0; i-=2)
  166.         {
  167.                 u8g2_DrawBox(u8g2,i*2,i,128-i*4,64-2*i);
  168.                 u8g2_SendBuffer(u8g2);
  169.         }
  170.         //空心矩形逐渐变小
  171.         u8g2_ClearBuffer(u8g2);
  172.         for(int i=0; i<32; i+=2)
  173.         {
  174.                 u8g2_DrawFrame(u8g2,i*2,i,128-i*4,64-2*i);
  175.                 u8g2_SendBuffer(u8g2);
  176.         }

  178.         //实心圆角矩形逐渐变大
  179.         u8g2_ClearBuffer(u8g2);
  180.         for(int i=30; i>0; i-=2)
  181.         {
  182.                 u8g2_DrawRBox(u8g2,i*2,i,128-i*4,64-2*i,10-i/3);
  183.                 u8g2_SendBuffer(u8g2);
  184.         }
  185.     //空心圆角矩形逐渐变小
  186.         u8g2_ClearBuffer(u8g2);
  187.         for(int i=0; i<32; i+=2)
  188.         {
  189.                 u8g2_DrawRFrame(u8g2,i*2,i,128-i*4,64-2*i,10-i/3);
  190.                 u8g2_SendBuffer(u8g2);
  191.         }

  193.         //实心圆逐渐变大
  194.         u8g2_ClearBuffer(u8g2);
  195.         for(int i=2; i<64; i+=3)
  196.         {
  197.                 u8g2_DrawDisc(u8g2,64,32,i, U8G2_DRAW_ALL);
  198.                 u8g2_SendBuffer(u8g2);
  199.         }
  200.         //空心圆逐渐变小
  201.         u8g2_ClearBuffer(u8g2);
  202.         for(int i=64; i>0; i-=3)
  203.         {
  204.                 u8g2_DrawCircle(u8g2,64,32,i, U8G2_DRAW_ALL);
  205.                 u8g2_SendBuffer(u8g2);
  206.         }

  208.         //实心椭圆逐渐变大
  209.     u8g2_ClearBuffer(u8g2);
  210.         for(int i=2; i<32; i+=3)
  211.         {
  212.                 u8g2_DrawFilledEllipse(u8g2,64,32, i*2, i, U8G2_DRAW_ALL);
  213.                 u8g2_SendBuffer(u8g2);
  214.         }
  215.     //空心椭圆逐渐变小
  216.     u8g2_ClearBuffer(u8g2);
  217.         for(int i=32; i>0; i-=3)
  218.         {
  219.                 u8g2_DrawEllipse(u8g2,64,32, i*2, i, U8G2_DRAW_ALL);
  220.                 u8g2_SendBuffer(u8g2);
  221.         }
  222. }


  225. // width: 128, height: 48
  226. const unsigned char bilibili[] U8X8_PROGMEM = { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x00, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x80, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1e, 0xe0, 0x03, 0x00, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x0e, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3c, 0xf0, 0x00, 0x00, 0xf8, 0x00, 0x00, 0x00, 0x80, 0x0f, 0x00, 0x00, 0x00, 0x00, 0x00, 0xfc, 0xff, 0xff, 0xff, 0x01, 0xfc, 0x00, 0x00, 0x00, 0xc0, 0x0f, 0x00, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0x03, 0xfc, 0x00, 0x00, 0x3c, 0xc0, 0x0f, 0x00, 0x80, 0x03, 0x00, 0x80, 0xff, 0xff, 0xff, 0xff, 0x07, 0xfc, 0x00, 0x00, 0x3c, 0xc0, 0x0f, 0x00, 0xc0, 0x07, 0x00, 0x80, 0xff, 0xff, 0xff, 0xff, 0x0f, 0xfc, 0x00, 0x00, 0x3c, 0x80, 0x0f, 0x00, 0xc0, 0x07, 0x00, 0xc0, 0x0f, 0x00, 0x00, 0x80, 0x0f, 0xf8, 0x00, 0x00, 0x3c, 0x80, 0x0f, 0x00, 0x80, 0x07, 0x00, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf8, 0x00, 0x00, 0x78, 0x80, 0x0f, 0x00, 0x80, 0x07, 0x00, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf8, 0x00, 0x00, 0x78, 0x80, 0x0f, 0x00, 0x80, 0x07, 0x00, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf8, 0x00, 0x80, 0x79, 0x80, 0x0f, 0x00, 0x98, 0x07, 0x00, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf8, 0x00, 0xe0, 0x79, 0x9f, 0x0f, 0x00, 0xbe, 0xe7, 0x01, 0xc0, 0x07, 0x10, 0x40, 0x00, 0x1f, 0xf8, 0x00, 0xe0, 0x7b, 0x1f, 0x0f, 0x00, 0xbe, 0xe7, 0x01, 0xc0, 0x87, 0x1f, 0xe0, 0x0f, 0x1f, 0xf8, 0x00, 0xe0, 0x7b, 0x1e, 0x0f, 0x00, 0x3e, 0xe7, 0x01, 0xc0, 0xe7, 0x3f, 0xe0, 0x3f, 0x1f, 0xf0, 0x00, 0xe0, 0x7b, 0x1e, 0x0f, 0x00, 0x3e, 0xe7, 0x01, 0xc0, 0xe7, 0x3f, 0xe0, 0x3f, 0x1f, 0xf0, 0x00, 0x60, 0x71, 0x1e, 0x0f, 0x00, 0x34, 0xe7, 0x01, 0xc0, 0xe7, 0x07, 0x00, 0x3f, 0x1f, 0xf0, 0x00, 0x00, 0x70, 0x00, 0x1f, 0x00, 0x00, 0x07, 0x00, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf0, 0x00, 0xc0, 0x73, 0x1e, 0x1f, 0x00, 0x3c, 0xc7, 0x01, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf0, 0x00, 0xc0, 0x73, 0x1e, 0x1f, 0x00, 0x7c, 0xe7, 0x01, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf0, 0x00, 0xc0, 0x73, 0x1e, 0x1f, 0x00, 0x7c, 0xef, 0x01, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf0, 0x01, 0xc0, 0x77, 0x1e, 0x1e, 0x00, 0x7c, 0xef, 0x01, 0xc0, 0x07, 0x00, 0x03, 0x00, 0x1f, 0xf0, 0xff, 0xc1, 0xf7, 0x1e, 0xfe, 0x1f, 0x78, 0xef, 0x01, 0xc0, 0x07, 0x70, 0x37, 0x00, 0x1f, 0xe0, 0xff, 0x87, 0xf7, 0x1e, 0xfe, 0xff, 0x78, 0xee, 0x01, 0xc0, 0x07, 0xe0, 0x3f, 0x00, 0x1f, 0xe0, 0xff, 0x9f, 0xf7, 0x1e, 0xfe, 0xff, 0x79, 0xce, 0x01, 0xc0, 0x07, 0xc0, 0x18, 0x00, 0x1f, 0xe0, 0xff, 0xbf, 0xe7, 0x1e, 0xfe, 0xff, 0x7b, 0xce, 0x01, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xe0, 0xc7, 0xbf, 0xe7, 0x1e, 0xfe, 0xf8, 0x77, 0xce, 0x01, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xe0, 0x0f, 0x3f, 0xe7, 0x1c, 0xfe, 0xf0, 0x77, 0xce, 0x03, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xe0, 0xcf, 0x3f, 0xe7, 0x1c, 0xfe, 0xf8, 0xf3, 0xce, 0x03, 0xc0, 0xff, 0xff, 0xff, 0xff, 0x0f, 0xe0, 0xef, 0x1f, 0xe7, 0x1c, 0xfe, 0xfe, 0xf1, 0xce, 0x03, 0x80, 0xff, 0xff, 0xff, 0xff, 0x0f, 0xe0, 0xff, 0x0f, 0xcf, 0x1c, 0xfc, 0xff, 0xf0, 0xc0, 0x03, 0x00, 0xff, 0xff, 0xff, 0xff, 0x07, 0xe0, 0xff, 0x03, 0x06, 0x1c, 0xfc, 0x7f, 0x60, 0xc0, 0x01, 0x00, 0xfe, 0xff, 0xff, 0xff, 0x03, 0xe0, 0xff, 0x00, 0x00, 0x00, 0xfc, 0x0f, 0x00, 0x00, 0x00, 0x00, 0xfc, 0xff, 0xff, 0xff, 0x00, 0xc0, 0x0f, 0x00, 0x00, 0x00, 0xfc, 0x00, 0x00, 0x00, 0x00, 0x00, 0xc0, 0x03, 0x00, 0x1e, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x01, 0x00, 0x0c, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 };
  227. // width: 128, height: 48
  228. const unsigned char three_support[] U8X8_PROGMEM = { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xc0, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x06, 0x00, 0x00, 0x00, 0x00, 0xc0, 0x01, 0x00, 0x00, 0x00, 0xe0, 0x07, 0x00, 0x00, 0x00, 0x00, 0x07, 0x00, 0x00, 0x00, 0x00, 0xe0, 0x03, 0x00, 0x00, 0x00, 0xfc, 0x1f, 0x00, 0x00, 0x00, 0x00, 0x0f, 0x00, 0x00, 0x00, 0x00, 0xe0, 0x03, 0x00, 0x00, 0x00, 0xfe, 0x7f, 0x00, 0x00, 0x00, 0x80, 0x0f, 0x00, 0x00, 0x00, 0x00, 0xe0, 0x03, 0x00, 0x00, 0x00, 0xff, 0xff, 0x00, 0x00, 0x00, 0x80, 0x1f, 0x00, 0x00, 0x00, 0x00, 0xf0, 0x03, 0x00, 0x00, 0x80, 0x0f, 0xf0, 0x00, 0x00, 0x00, 0xc0, 0x3f, 0x00, 0x00, 0x00, 0x00, 0xf8, 0x03, 0x00, 0x00, 0x80, 0x0f, 0xf0, 0x01, 0x00, 0x00, 0xfc, 0xff, 0x01, 0x00, 0x00, 0xc0, 0xfd, 0xff, 0x00, 0x00, 0xc0, 0x7f, 0xfe, 0x01, 0x00, 0x00, 0xff, 0xff, 0x0f, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x01, 0x00, 0xc0, 0x1f, 0xf8, 0x03, 0x00, 0x00, 0xff, 0xff, 0x0f, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x01, 0x00, 0xc0, 0x0f, 0xf0, 0x03, 0x00, 0x00, 0xfe, 0xff, 0x07, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x01, 0x00, 0xc0, 0x67, 0xe6, 0x03, 0x00, 0x00, 0xfc, 0xff, 0x03, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x01, 0x00, 0xc0, 0x67, 0xe6, 0x03, 0x00, 0x00, 0xf8, 0xff, 0x01, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x00, 0x00, 0xc0, 0x67, 0xe6, 0x03, 0x00, 0x00, 0xf0, 0x7f, 0x00, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x00, 0x00, 0xc0, 0x67, 0xee, 0x03, 0x00, 0x00, 0xe0, 0x7f, 0x00, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x00, 0x00, 0x80, 0x7f, 0xfe, 0x01, 0x00, 0x00, 0xe0, 0xff, 0x00, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x00, 0x00, 0x80, 0x7f, 0xfe, 0x01, 0x00, 0x00, 0xf0, 0xff, 0x00, 0x00, 0x00, 0xe0, 0xfd, 0x7f, 0x00, 0x00, 0x00, 0xff, 0xff, 0x00, 0x00, 0x00, 0xf0, 0xff, 0x00, 0x00, 0x00, 0xe0, 0xfd, 0x7f, 0x00, 0x00, 0x00, 0xfe, 0xff, 0x00, 0x00, 0x00, 0xf8, 0xf9, 0x01, 0x00, 0x00, 0xe0, 0xfd, 0x7f, 0x00, 0x00, 0x00, 0xfe, 0x7f, 0x00, 0x00, 0x00, 0xf8, 0xf0, 0x00, 0x00, 0x00, 0xe0, 0xfd, 0x1f, 0x00, 0x00, 0x00, 0xf8, 0x1f, 0x00, 0x00, 0x00, 0x30, 0xc0, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xc0, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 };

  230. void testDrawXBM(u8g2_t *u8g2)
  231. {
  232.         int t = 1000;
  233.         u8g2_ClearBuffer(u8g2);
  234.         u8g2_DrawStr(u8g2,0, 14, "DrawXBM");

  236.         u8g2_DrawXBM(u8g2,0, 16, 128, 48, bilibili);
  237.         SEND_BUFFER_DISPLAY_MS(u8g2,t);

  239.         u8g2_ClearBuffer(u8g2);
  240.         u8g2_DrawStr(u8g2,0, 14, "bilib");
  241.         u8g2_DrawXBM(u8g2,0, 16, 128, 48, three_support);
  242.         SEND_BUFFER_DISPLAY_MS(u8g2,t);
  243. }

  245. void u8g2DrawTest(u8g2_t *u8g2)
  246. {
  247.         testDrawProcess(u8g2);
  248.         testDrawMulti(u8g2);
  249.         testDrawFrame(u8g2);
  250.         testDrawRBox(u8g2);
  251.         testDrawCircle(u8g2);
  252.         testDrawFilledEllipse(u8g2);
  253.         testShowFont(u8g2);
  254.         testDrawXBM(u8g2);

  256. }
复制代码

五、主函数main.c

  1. /* USER CODE BEGIN Header */
  2. /**
  3.   ******************************************************************************
  4.   * @File : main.c
  5.   * @brief : Main program body
  6.   ******************************************************************************
  7.   * @attention *
  8.   * Copyright (c) 2022 STMicroelectronics.
  9.   * All rights reserved.
  10.   *
  11.   * This software is licensed under terms that can be found in the LICENSE file
  12.   * in the root directory of this software component.
  13.   * If no LICENSE file comes with this software, it is provided AS-IS.
  14.   *
  15.   ******************************************************************************
  16.   */
  17. /* USER CODE END Header */
  18. /* Includes ------------------------------------------------------------------*/
  19. #include "main.h"


  22. /* Private includes ----------------------------------------------------------*/

  24. /* USER CODE BEGIN Includes */
  25. #include "oled.h"
  26. #include "u8g2.h"
  27. #include "test.h"

  29. /* USER CODE END Includes */

  31. /* Private typedef -----------------------------------------------------------*/
  32. /* USER CODE BEGIN PTD */

  34. /* USER CODE END PTD */

  36. /* Private define ------------------------------------------------------------*/
  37. /* USER CODE BEGIN PD */
  38. /* USER CODE END PD */

  40. /* Private macro -------------------------------------------------------------*/
  41. /* USER CODE BEGIN PM */

  43. /* USER CODE END PM */

  45. /* Private variables ---------------------------------------------------------*/
  46. ADC_HandleTypeDef hadc1;

  48. I2C_HandleTypeDef hi2c1;

  50. UART_HandleTypeDef huart1;

  52. PCD_HandleTypeDef hpcd_USB_OTG_FS;

  54. /* USER CODE BEGIN PV */

  56. /* USER CODE END PV */

  58. /* Private function prototypes -----------------------------------------------*/
  59. void SystemClock_Config(void);
  60. static void SystemPower_Config(void);
  61. static void MX_GPIO_Init(void);
  62. static void MX_ADC1_Init(void);
  63. static void MX_UCPD1_Init(void);
  64. static void MX_USART1_UART_Init(void);
  65. static void MX_USB_OTG_FS_PCD_Init(void);
  66. static void MX_I2C1_Init(void);
  67. /* USER CODE BEGIN PFP */

  69. /* USER CODE END PFP */

  71. /* Private user code ---------------------------------------------------------*/
  72. /* USER CODE BEGIN 0 */
  73. #include <stdio.h>

  75. #ifdef __GNUC__
  76. #define PUTCHAR_PROTOTYPE int __io_putchar(int ch)
  77. #else
  78. #define PUTCHAR_PROTOTYPE int fputc(int ch, FILE *f)
  79. #endif
  80. PUTCHAR_PROTOTYPE
  81. {
  82.         HAL_UART_Transmit(&huart1,  (uint8_t *)&ch, 1, 0xFFFF);
  83.     return ch;
  84. }
  85. /* USER CODE END 0 */

  87. /**
  88.   * @brief  The application entry point.
  89.   * @retval int
  90.   */
  91. int main(void)
  92. {
  93.   /* USER CODE BEGIN 1 */
  94.         u8g2_t u8g2;                                                                                     // a structure which will contain all the data for one display

  96.   /* USER CODE END 1 */

  98.   /* MCU Configuration--------------------------------------------------------*/

  100.   /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  101.   HAL_Init();

  103.   /* USER CODE BEGIN Init */
  104.   char txbuff[] = "hellworld\r\n";
  105.   /* USER CODE END Init */

  107.   /* Configure the system clock */
  108.   SystemClock_Config();

  110.   /* Configure the System Power */
  111.   SystemPower_Config();

  113.   /* USER CODE BEGIN SysInit */

  115.   /* USER CODE END SysInit */

  117.   /* Initialize all configured peripherals */
  118.   MX_GPIO_Init();
  119.   MX_ADC1_Init();
  120.   MX_UCPD1_Init();
  121.   MX_USART1_UART_Init();
  122.   MX_USB_OTG_FS_PCD_Init();
  123.   MX_I2C1_Init();
  124.   /* USER CODE BEGIN 2 */
  125.
  126.   u8g2Init(&u8g2);
  127.   /* USER CODE END 2 */

  129.   /* Infinite loop */
  130.   /* USER CODE BEGIN WHILE */
  131.   while (1)
  132.   {
  133.     /* USER CODE END WHILE */
  134.            u8g2_FirstPage(&u8g2);
  135.        do
  136.        {
  137.                                  //draw(&u8g2);

  139.                                  u8g2DrawTest(&u8g2);
  140.        } while (u8g2_NextPage(&u8g2));


  143.     /* USER CODE BEGIN 3 */
  144.   }
  145.   /* USER CODE END 3 */
  146. }

  148. /**
  149.   * @brief System Clock Configuration
  150.   * @retval None
  151.   */
  152. void SystemClock_Config(void)
  153. {
  154.   RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  155.   RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  157.   /** Configure the main internal regulator output voltage
  158.   */
  159.   if (HAL_PWREx_ControlVoltageScaling(PWR_REGULATOR_VOLTAGE_SCALE1) != HAL_OK)
  160.   {
  161.     Error_Handler();
  162.   }

  164.   /** Initializes the CPU, AHB and APB buses clocks
  165.   */
  166.   RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI48|RCC_OSCILLATORTYPE_HSI
  167.                               |RCC_OSCILLATORTYPE_MSI;
  168.   RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  169.   RCC_OscInitStruct.HSI48State = RCC_HSI48_ON;
  170.   RCC_OscInitStruct.HSICalibrationValue = RCC_HSICALIBRATION_DEFAULT;
  171.   RCC_OscInitStruct.MSIState = RCC_MSI_ON;
  172.   RCC_OscInitStruct.MSICalibrationValue = RCC_MSICALIBRATION_DEFAULT;
  173.   RCC_OscInitStruct.MSIClockRange = RCC_MSIRANGE_4;
  174.   RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  175.   RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_MSI;
  176.   RCC_OscInitStruct.PLL.PLLMBOOST = RCC_PLLMBOOST_DIV1;
  177.   RCC_OscInitStruct.PLL.PLLM = 1;
  178.   RCC_OscInitStruct.PLL.PLLN = 80;
  179.   RCC_OscInitStruct.PLL.PLLP = 2;
  180.   RCC_OscInitStruct.PLL.PLLQ = 2;
  181.   RCC_OscInitStruct.PLL.PLLR = 2;
  182.   RCC_OscInitStruct.PLL.PLLRGE = RCC_PLLVCIRANGE_0;
  183.   RCC_OscInitStruct.PLL.PLLFRACN = 0;
  184.   if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  185.   {
  186.     Error_Handler();
  187.   }

  189.   /** Initializes the CPU, AHB and APB buses clocks
  190.   */
  191.   RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
  192.                               |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2
  193.                               |RCC_CLOCKTYPE_PCLK3;
  194.   RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  195.   RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  196.   RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;
  197.   RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;
  198.   RCC_ClkInitStruct.APB3CLKDivider = RCC_HCLK_DIV1;

  200.   if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_4) != HAL_OK)
  201.   {
  202.     Error_Handler();
  203.   }
  204. }

  206. /**
  207.   * @brief Power Configuration
  208.   * @retval None
  209.   */
  210. static void SystemPower_Config(void)
  211. {
  212.   HAL_PWREx_EnableVddIO2();

  214.   /*
  215.    * Switch to SMPS regulator instead of LDO
  216.    */
  217.   if (HAL_PWREx_ConfigSupply(PWR_SMPS_SUPPLY) != HAL_OK)
  218.   {
  219.     Error_Handler();
  220.   }
  221. }

  223. /**
  224.   * @brief ADC1 Initialization Function
  225.   * @param None
  226.   * @retval None
  227.   */
  228. static void MX_ADC1_Init(void)
  229. {

  231.   /* USER CODE BEGIN ADC1_Init 0 */

  233.   /* USER CODE END ADC1_Init 0 */

  235.   /* USER CODE BEGIN ADC1_Init 1 */

  237.   /* USER CODE END ADC1_Init 1 */

  239.   /** Common config
  240.   */
  241.   hadc1.Instance = ADC1;
  242.   hadc1.Init.ClockPrescaler = ADC_CLOCK_ASYNC_DIV1;
  243.   hadc1.Init.Resolution = ADC_RESOLUTION_14B;
  244.   hadc1.Init.GainCompensation = 0;
  245.   hadc1.Init.ScanConvMode = ADC_SCAN_DISABLE;
  246.   hadc1.Init.EOCSelection = ADC_EOC_SINGLE_CONV;
  247.   hadc1.Init.LowPowerAutoWait = DISABLE;
  248.   hadc1.Init.ContinuousConvMode = DISABLE;
  249.   hadc1.Init.NbrOfConversion = 1;
  250.   hadc1.Init.DiscontinuousConvMode = DISABLE;
  251.   hadc1.Init.DMAContinuousRequests = DISABLE;
  252.   hadc1.Init.TriggerFrequencyMode = ADC_TRIGGER_FREQ_HIGH;
  253.   hadc1.Init.Overrun = ADC_OVR_DATA_PRESERVED;
  254.   hadc1.Init.LeftBitShift = ADC_LEFTBITSHIFT_NONE;
  255.   hadc1.Init.ConversionDataManagement = ADC_CONVERSIONDATA_DR;
  256.   hadc1.Init.OversamplingMode = DISABLE;
  257.   if (HAL_ADC_Init(&hadc1) != HAL_OK)
  258.   {
  259.     Error_Handler();
  260.   }
  261.   /* USER CODE BEGIN ADC1_Init 2 */

  263.   /* USER CODE END ADC1_Init 2 */

  265. }

  267. /**
  268.   * @brief I2C1 Initialization Function
  269.   * @param None
  270.   * @retval None
  271.   */
  272. static void MX_I2C1_Init(void)
  273. {

  275.   /* USER CODE BEGIN I2C1_Init 0 */

  277.   /* USER CODE END I2C1_Init 0 */

  279.   /* USER CODE BEGIN I2C1_Init 1 */

  281.   /* USER CODE END I2C1_Init 1 */
  282.   hi2c1.Instance = I2C1;
  283.   hi2c1.Init.Timing = 0x00F07BFF;
  284.   hi2c1.Init.OwnAddress1 = 0;
  285.   hi2c1.Init.AddressingMode = I2C_ADDRESSINGMODE_7BIT;
  286.   hi2c1.Init.DualAddressMode = I2C_DUALADDRESS_DISABLE;
  287.   hi2c1.Init.OwnAddress2 = 0;
  288.   hi2c1.Init.OwnAddress2Masks = I2C_OA2_NOMASK;
  289.   hi2c1.Init.GeneralCallMode = I2C_GENERALCALL_DISABLE;
  290.   hi2c1.Init.NoStretchMode = I2C_NOSTRETCH_DISABLE;
  291.   if (HAL_I2C_Init(&hi2c1) != HAL_OK)
  292.   {
  293.     Error_Handler();
  294.   }

  296.   /** Configure Analogue filter
  297.   */
  298.   if (HAL_I2CEx_ConfigAnalogFilter(&hi2c1, I2C_ANALOGFILTER_ENABLE) != HAL_OK)
  299.   {
  300.     Error_Handler();
  301.   }

  303.   /** Configure Digital filter
  304.   */
  305.   if (HAL_I2CEx_ConfigDigitalFilter(&hi2c1, 0) != HAL_OK)
  306.   {
  307.     Error_Handler();
  308.   }
  309.   /* USER CODE BEGIN I2C1_Init 2 */

  311.   /* USER CODE END I2C1_Init 2 */

  313. }

  315. /**
  316.   * @brief UCPD1 Initialization Function
  317.   * @param None
  318.   * @retval None
  319.   */
  320. static void MX_UCPD1_Init(void)
  321. {

  323.   /* USER CODE BEGIN UCPD1_Init 0 */

  325.   /* USER CODE END UCPD1_Init 0 */

  327.   LL_GPIO_InitTypeDef GPIO_InitStruct = {0};

  329.   /* Peripheral clock enable */
  330.   LL_APB1_GRP2_EnableClock(LL_APB1_GRP2_PERIPH_UCPD1);

  332.   LL_AHB2_GRP1_EnableClock(LL_AHB2_GRP1_PERIPH_GPIOB);
  333.   LL_AHB2_GRP1_EnableClock(LL_AHB2_GRP1_PERIPH_GPIOA);
  334.   /**UCPD1 GPIO Configuration
  335.   PB15   ------> UCPD1_CC2
  336.   PA15 (JTDI)   ------> UCPD1_CC1
  337.   */
  338.   GPIO_InitStruct.Pin = LL_GPIO_PIN_15;
  339.   GPIO_InitStruct.Mode = LL_GPIO_MODE_ANALOG;
  340.   GPIO_InitStruct.Pull = LL_GPIO_PULL_NO;
  341.   LL_GPIO_Init(GPIOB, &GPIO_InitStruct);

  343.   GPIO_InitStruct.Pin = LL_GPIO_PIN_15;
  344.   GPIO_InitStruct.Mode = LL_GPIO_MODE_ANALOG;
  345.   GPIO_InitStruct.Pull = LL_GPIO_PULL_NO;
  346.   LL_GPIO_Init(GPIOA, &GPIO_InitStruct);

  348.   /* USER CODE BEGIN UCPD1_Init 1 */

  350.   /* USER CODE END UCPD1_Init 1 */
  351.   /* USER CODE BEGIN UCPD1_Init 2 */

  353.   /* USER CODE END UCPD1_Init 2 */

  355. }

  357. /**
  358.   * @brief USART1 Initialization Function
  359.   * @param None
  360.   * @retval None
  361.   */
  362. static void MX_USART1_UART_Init(void)
  363. {

  365.   /* USER CODE BEGIN USART1_Init 0 */

  367.   /* USER CODE END USART1_Init 0 */

  369.   /* USER CODE BEGIN USART1_Init 1 */

  371.   /* USER CODE END USART1_Init 1 */
  372.   huart1.Instance = USART1;
  373.   huart1.Init.BaudRate = 115200;
  374.   huart1.Init.WordLength = UART_WORDLENGTH_8B;
  375.   huart1.Init.StopBits = UART_STOPBITS_1;
  376.   huart1.Init.Parity = UART_PARITY_NONE;
  377.   huart1.Init.Mode = UART_MODE_TX_RX;
  378.   huart1.Init.HwFlowCtl = UART_HWCONTROL_NONE;
  379.   huart1.Init.OverSampling = UART_OVERSAMPLING_16;
  380.   huart1.Init.OneBitSampling = UART_ONE_BIT_SAMPLE_ENABLE;
  381.   huart1.Init.ClockPrescaler = UART_PRESCALER_DIV1;
  382.   huart1.AdvancedInit.AdvFeatureInit = UART_ADVFEATURE_NO_INIT;
  383.   if (HAL_UART_Init(&huart1) != HAL_OK)
  384.   {
  385.     Error_Handler();
  386.   }
  387.   if (HAL_UARTEx_SetTxFifoThreshold(&huart1, UART_TXFIFO_THRESHOLD_1_8) != HAL_OK)
  388.   {
  389.     Error_Handler();
  390.   }
  391.   if (HAL_UARTEx_SetRxFifoThreshold(&huart1, UART_RXFIFO_THRESHOLD_1_8) != HAL_OK)
  392.   {
  393.     Error_Handler();
  394.   }
  395.   if (HAL_UARTEx_DisableFifoMode(&huart1) != HAL_OK)
  396.   {
  397.     Error_Handler();
  398.   }
  399.   /* USER CODE BEGIN USART1_Init 2 */

  401.   /* USER CODE END USART1_Init 2 */

  403. }

  405. /**
  406.   * @brief USB_OTG_FS Initialization Function
  407.   * @param None
  408.   * @retval None
  409.   */
  410. static void MX_USB_OTG_FS_PCD_Init(void)
  411. {

  413.   /* USER CODE BEGIN USB_OTG_FS_Init 0 */

  415.   /* USER CODE END USB_OTG_FS_Init 0 */

  417.   /* USER CODE BEGIN USB_OTG_FS_Init 1 */

  419.   /* USER CODE END USB_OTG_FS_Init 1 */
  420.   hpcd_USB_OTG_FS.Instance = USB_OTG_FS;
  421.   hpcd_USB_OTG_FS.Init.dev_endpoints = 6;
  422.   hpcd_USB_OTG_FS.Init.phy_itface = PCD_PHY_EMBEDDED;
  423.   hpcd_USB_OTG_FS.Init.Sof_enable = DISABLE;
  424.   hpcd_USB_OTG_FS.Init.low_power_enable = DISABLE;
  425.   hpcd_USB_OTG_FS.Init.lpm_enable = DISABLE;
  426.   hpcd_USB_OTG_FS.Init.battery_charging_enable = DISABLE;
  427.   hpcd_USB_OTG_FS.Init.use_dedicated_ep1 = DISABLE;
  428.   hpcd_USB_OTG_FS.Init.vbus_sensing_enable = DISABLE;
  429.   if (HAL_PCD_Init(&hpcd_USB_OTG_FS) != HAL_OK)
  430.   {
  431.     Error_Handler();
  432.   }
  433.   /* USER CODE BEGIN USB_OTG_FS_Init 2 */

  435.   /* USER CODE END USB_OTG_FS_Init 2 */

  437. }

  439. /**
  440.   * @brief GPIO Initialization Function
  441.   * @param None
  442.   * @retval None
  443.   */
  444. static void MX_GPIO_Init(void)
  445. {
  446.   GPIO_InitTypeDef GPIO_InitStruct = {0};

  448.   /* GPIO Ports Clock Enable */
  449.   __HAL_RCC_GPIOC_CLK_ENABLE();
  450.   __HAL_RCC_GPIOB_CLK_ENABLE();
  451.   __HAL_RCC_GPIOG_CLK_ENABLE();
  452.   __HAL_RCC_GPIOA_CLK_ENABLE();

  454.   /*Configure GPIO pin Output Level */
  455.   HAL_GPIO_WritePin(LED_RED_GPIO_Port, LED_RED_Pin, GPIO_PIN_RESET);

  457.   /*Configure GPIO pin Output Level */
  458.   HAL_GPIO_WritePin(LED_GREEN_GPIO_Port, LED_GREEN_Pin, GPIO_PIN_RESET);

  460.   /*Configure GPIO pin Output Level */
  461.   HAL_GPIO_WritePin(GPIOB, UCPD_DBn_Pin|LED_BLUE_Pin, GPIO_PIN_RESET);

  463.   /*Configure GPIO pin : USER_BUTTON_Pin */
  464.   GPIO_InitStruct.Pin = USER_BUTTON_Pin;
  465.   GPIO_InitStruct.Mode = GPIO_MODE_IT_FALLING;
  466.   GPIO_InitStruct.Pull = GPIO_NOPULL;
  467.   HAL_GPIO_Init(USER_BUTTON_GPIO_Port, &GPIO_InitStruct);

  469.   /*Configure GPIO pin : UCPD_FLT_Pin */
  470.   GPIO_InitStruct.Pin = UCPD_FLT_Pin;
  471.   GPIO_InitStruct.Mode = GPIO_MODE_INPUT;
  472.   GPIO_InitStruct.Pull = GPIO_NOPULL;
  473.   HAL_GPIO_Init(UCPD_FLT_GPIO_Port, &GPIO_InitStruct);

  475.   /*Configure GPIO pin : LED_RED_Pin */
  476.   GPIO_InitStruct.Pin = LED_RED_Pin;
  477.   GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  478.   GPIO_InitStruct.Pull = GPIO_PULLUP;
  479.   GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_HIGH;
  480.   HAL_GPIO_Init(LED_RED_GPIO_Port, &GPIO_InitStruct);

  482.   /*Configure GPIO pin : LED_GREEN_Pin */
  483.   GPIO_InitStruct.Pin = LED_GREEN_Pin;
  484.   GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  485.   GPIO_InitStruct.Pull = GPIO_PULLUP;
  486.   GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_HIGH;
  487.   HAL_GPIO_Init(LED_GREEN_GPIO_Port, &GPIO_InitStruct);

  489.   /*Configure GPIO pin : UCPD_DBn_Pin */
  490.   GPIO_InitStruct.Pin = UCPD_DBn_Pin;
  491.   GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  492.   GPIO_InitStruct.Pull = GPIO_NOPULL;
  493.   GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
  494.   HAL_GPIO_Init(UCPD_DBn_GPIO_Port, &GPIO_InitStruct);

  496.   /*Configure GPIO pin : LED_BLUE_Pin */
  497.   GPIO_InitStruct.Pin = LED_BLUE_Pin;
  498.   GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  499.   GPIO_InitStruct.Pull = GPIO_PULLUP;
  500.   GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_HIGH;
  501.   HAL_GPIO_Init(LED_BLUE_GPIO_Port, &GPIO_InitStruct);

  503. }

  505. /* USER CODE BEGIN 4 */

  507. /* USER CODE END 4 */

  509. /**
  510.   * @brief  This function is executed in case of error occurrence.
  511.   * @retval None
  512.   */
  513. void Error_Handler(void)
  514. {
  515.   /* USER CODE BEGIN Error_Handler_Debug */
  516.   /* User can add his own implementation to report the HAL error return state */
  517.   __disable_irq();
  518.   while (1)
  519.   {
  520.   }
  521.   /* USER CODE END Error_Handler_Debug */
  522. }

  524. #ifdef  USE_FULL_ASSERT
  525. /**
  526.   * @brief  Reports the name of the source file and the source line number
  527.   *         where the assert_param error has occurred.
  528.   * @param  file: pointer to the source file name
  529.   * @param  line: assert_param error line source number
  530.   * @retval None
  531.   */
  532. void assert_failed(uint8_t *file, uint32_t line)
  533. {
  534.   /* USER CODE BEGIN 6 */
  535.   /* User can add his own implementation to report the file name and line number,
  536.      ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  537.   /* USER CODE END 6 */
  538. }
  539. #endif /* USE_FULL_ASSERT */
复制代码


【总结】整个工程主要就是改写u8x8_byte_hw_i2c(u8x8_t *u8x8, uint8_t msg, uint8_t arg_int, void *arg_ptr)、uint8_t u8x8_gpio_and_delay(u8x8_t *u8x8, uint8_t msg, uint8_t arg_int, void *arg_ptr)这两个函数，最关键的一个函数就是：

  1.   case U8X8_MSG_BYTE_END_TRANSFER:
  2.     {
  3.         if (HAL_I2C_Master_Transmit(&hi2c1, (OLED_ADDRES), buffer, buf_idx, 1000) != HAL_OK)
  4.             return 0;
  5.     }
复制代码

效果经测试非常不错。
