使用Platformio平台的libopencm3开发框架来开发STM32G0，以下为多通道ADC与DMA的使用。

1 新建项目

• 建立adc_dma项目



在PIO的Home页面新建项目，项目名称adc_dma，选择开发板为 MonkeyPi_STM32_G070RB，开发框架选择libopencm3；

• 项目建立完成后在src目录下新建main.c主程序文件；
• 修改下载和调试方式，这里开发板使用的是DAPLink仿真器，因此修改platformio.ini文件如下：



1. 1upload_protocol = cmsis-dap

2. 2debug_tool = cmsis-dap

复制代码

2 编写程序2.1 ADC 设置

这里设置PA0、PA1、PA2、PA3四个引脚为ADC：

1. 1static void adc_setup(void)

2. 2{

3. 3    rcc_periph_clock_enable(RCC_ADC);

4. 4    rcc_periph_clock_enable(RCC_GPIOA);

5. 5

6. 6    gpio_mode_setup(GPIOA, GPIO_MODE_ANALOG, GPIO_PUPD_NONE, GPIO0);

7. 7    gpio_mode_setup(GPIOA, GPIO_MODE_ANALOG, GPIO_PUPD_NONE, GPIO1);

8. 8    gpio_mode_setup(GPIOA, GPIO_MODE_ANALOG, GPIO_PUPD_NONE, GPIO2);

9. 9    gpio_mode_setup(GPIOA, GPIO_MODE_ANALOG, GPIO_PUPD_NONE, GPIO3);

10. 10

11. 11    adc_power_off(ADC1);

12. 12    adc_set_clk_prescale(ADC1, ADC_CCR_PRESC_DIV2);

13. 13    adc_set_single_conversion_mode(ADC1);

14. 14    adc_set_right_aligned(ADC1);

15. 15    adc_set_sample_time_on_all_channels(ADC1, ADC_SMPTIME_160DOT5);

16. 16

17. 17    uint8_t channel_array[16] = {0};

18. 18    channel_array[0] = 0;

19. 19    channel_array[1] = 1;

20. 20    channel_array[2] = 2;

21. 21    channel_array[3] = 3;

22. 22    adc_set_regular_sequence(ADC1, ADC_CHAN_CNT, channel_array);

23. 23    adc_enable_dma_circular_mode(ADC1);

24. 24    adc_set_resolution(ADC1, ADC_CFGR1_RES_12_BIT);

25. 25    adc_power_on(ADC1);

26. 26

27. 27    /* Wait for ADC starting up. */

28. 28    delay_ms(10);

29. 29}

复制代码

2.2 DMA配置

1. 1static void dma_setup(void *data, int size)

2. 2{

3. 3    dma_channel_reset(DMA1, DMA_CHANNEL1);

4. 4    dma_set_peripheral_address(DMA1, DMA_CHANNEL1, (uint32_t)&ADC_DR(ADC1));

5. 5    dma_set_memory_address(DMA1, DMA_CHANNEL1, (uint32_t)data);

6. 6    dma_set_number_of_data(DMA1, DMA_CHANNEL1, size);

7. 7    dma_set_read_from_peripheral(DMA1, DMA_CHANNEL1);

8. 8    dma_enable_memory_increment_mode(DMA1, DMA_CHANNEL1);

9. 9    dma_set_peripheral_size(DMA1, DMA_CHANNEL1, DMA_CCR_PSIZE_16BIT);

10. 10    dma_set_memory_size(DMA1, DMA_CHANNEL1, DMA_CCR_MSIZE_16BIT);

11. 11    dma_enable_circular_mode(DMA1, DMA_CHANNEL1);

12. 12    dma_enable_transfer_complete_interrupt(DMA1, DMA_CHANNEL1);

13. 13    dma_enable_channel(DMA1, DMA_CHANNEL1);

14. 14

15. 15    dmamux_reset_dma_channel(DMAMUX1, DMA_CHANNEL1);

16. 16    dmamux_set_dma_channel_request(DMAMUX1, DMA_CHANNEL1, DMAMUX_CxCR_DMAREQ_ID_ADC);

17. 17}

复制代码

主要是设置DMA的外设地址为ADC数据寄存器 ADC_DR；并设置内存地址为定义的buff，size为需要缓存的数据大小：

1. 1#define ADC_CHAN_CNT        4

2. 2#define ADC_FILETER_SIZE    32

3. 3

4. 4int16_t adc_values[ADC_FILETER_SIZE*ADC_CHAN_CNT];

复制代码

2.3 ADC配置为DMA读取和Timer触发

• 定时器设置



1. 1void tim3_setup(void)

2. 2{

3. 3    /* Enable TIM3 clock. */

4. 4    rcc_periph_clock_enable(RCC_TIM3);

5. 5

6. 6    /* Enable TIM3 interrupt. */

7. 7    nvic_enable_irq(NVIC_TIM3_IRQ);

8. 8

9. 9    /* Reset TIM3 peripheral to defaults. */

10. 10    rcc_periph_reset_pulse(RST_TIM3);

11. 11

12. 12    /* Timer global mode:

13. 13     * - No divider

14. 14     * - Alignment edge

15. 15     * - Direction up

16. 16     * (These are actually default values after reset above, so this call

17. 17     * is strictly unnecessary, but demos the api for alternative settings)

18. 18     */

19. 19    timer_set_mode(TIM3, TIM_CR1_CKD_CK_INT,

20. 20                   TIM_CR1_CMS_EDGE, TIM_CR1_DIR_UP);

21. 21

22. 22    /*

23. 23     * Please take note that the clock source for STM32 timers

24. 24     * might not be the raw APB1/APB2 clocks.  In various conditions they

25. 25     * are doubled.  See the Reference Manual for full details!

26. 26     * In our case, TIM3 on APB1 is running at double frequency, so this

27. 27     * sets the prescaler to have the timer run at 5kHz

28. 28     */

29. 29    timer_set_prescaler(TIM3, 64-1);

30. 30

31. 31    /* Disable preload. */

32. 32    timer_disable_preload(TIM3);

33. 33    timer_continuous_mode(TIM3);

34. 34

35. 35    timer_set_period(TIM3, 20000-1); //100Hz

36. 36

37. 37    timer_set_master_mode(TIM3, TIM_CR2_MMS_UPDATE);

38. 38

39. 39    timer_enable_irq(TIM3, TIM_DIER_UIE);

40. 40}

41. 41

42. 42void tim3_enable_counter(bool en)

43. 43{

44. 44    if(en){

45. 45        timer_enable_counter(TIM3);

46. 46    }else{

47. 47        timer_disable_counter(TIM3);

48. 48    }

49. 49}

50. 50

51. 51void tim3_isr(void)

52. 52{

53. 53    if (timer_get_flag(TIM3, TIM_SR_UIF)) {

54. 54

55. 55        /* Clear compare interrupt flag. */

56. 56        timer_clear_flag(TIM3, TIM_SR_UIF);

57. 57    }

58. 58}

复制代码

• DMA设置和Timer触发



1. 1    rcc_periph_clock_enable(RCC_DMA);

2. 2    nvic_set_priority(NVIC_DMA1_CHANNEL1_IRQ, 3);

3. 3    nvic_enable_irq(NVIC_DMA1_CHANNEL1_IRQ);

4. 4

5. 5    adc_setup();

6. 6

7. 7    dma_setup(adc_values, ADC_CHAN_CNT*ADC_FILETER_SIZE);

8. 8

9. 9    adc_enable_overrun_interrupt(ADC1);

10. 10

11. 11    adc_enable_dma(ADC1);

12. 12

13. 13    ADC_CFGR1(ADC1) = (ADC_CFGR1(ADC1) & ~(0x3<<10)) | (0x1<<10);    // Hardware trigger detection on the rising edge

14. 14    ADC_CFGR1(ADC1) = (ADC_CFGR1(ADC1) & ~ADC_CFGR1_EXTSEL) | (3<<ADC_CFGR1_EXTSEL_SHIFT);    // toggle by tim3

15. 15

16. 16    tim3_setup();

17. 17

18. 18    adc_start_conversion_regular(ADC1);

19. 19

20. 20

21. 21    tim3_enable_counter(true);

22. 22

23. 23    delay_ms(100);

复制代码

DMA中断时候即准备好读取ADC数据，因此在DMA中断中先把定时器关闭，读取数据后再次打开：

1. 1void dma1_channel1_isr(void)

2. 2{

3. 3

4. 4    if ((DMA1_ISR &DMA_ISR_TCIF1) != 0) {

5. 5        DMA1_IFCR |= DMA_IFCR_CTCIF1;

6. 6    }

7. 7

8. 8    tim3_enable_counter(false);

9. 9

10. 10}

复制代码

2.4 ADC读取

1. 1void adc_sample(void)

2. 2{

3. 3    uint32_t sum_val1 = 0;

4. 4    uint32_t sum_val2 = 0;

5. 5    uint32_t sum_val3 = 0;

6. 6    uint32_t sum_val4 = 0;

7. 7

8. 8    for(int i=0; i<ADC_FILETER_SIZE; i++){

9. 9        sum_val1 += adc_values[ADC_CHAN_CNT*i + 0];

10. 10        sum_val2 += adc_values[ADC_CHAN_CNT*i + 1];

11. 11        sum_val3 += adc_values[ADC_CHAN_CNT*i + 2];

12. 12        sum_val4 += adc_values[ADC_CHAN_CNT*i + 3];

13. 13    }

14. 14

15. 15    uint32_t filter_val1 = sum_val1/ADC_FILETER_SIZE;

16. 16    uint32_t filter_val2 = sum_val2/ADC_FILETER_SIZE;

17. 17    uint32_t filter_val3 = sum_val3/ADC_FILETER_SIZE;

18. 18    uint32_t filter_val4 = sum_val4/ADC_FILETER_SIZE;

19. 19

20. 20    printf("adc:%d  %d  %d  %d\r\n", filter_val1, filter_val2, filter_val3, filter_val4);

21. 21

22. 22    tim3_enable_counter(true);

23. 23}

复制代码

读取时候按照通道的顺序从buff中取出，这里做了简单的过滤；

3 烧写测试

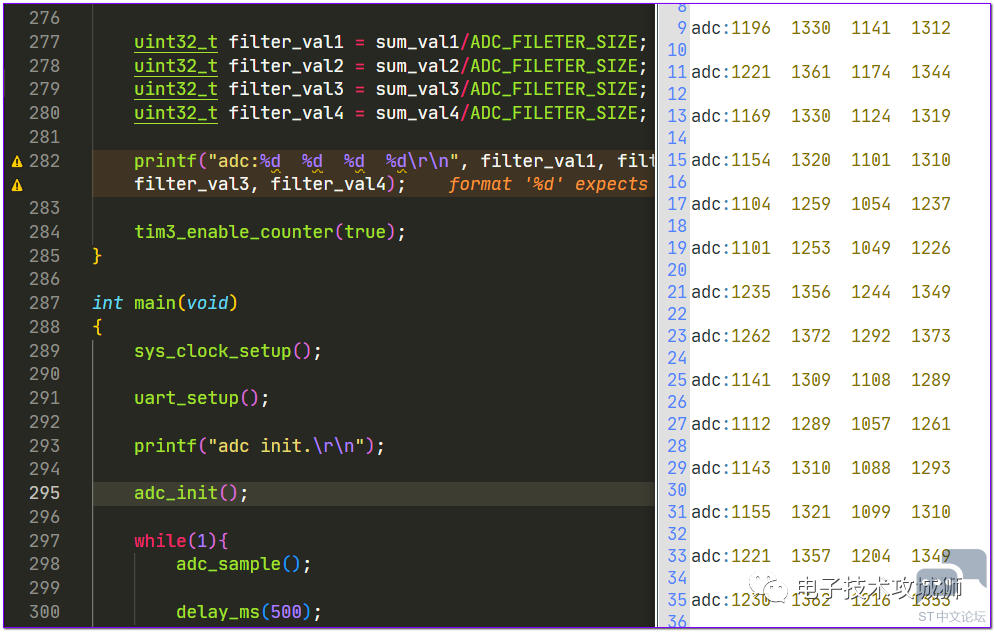

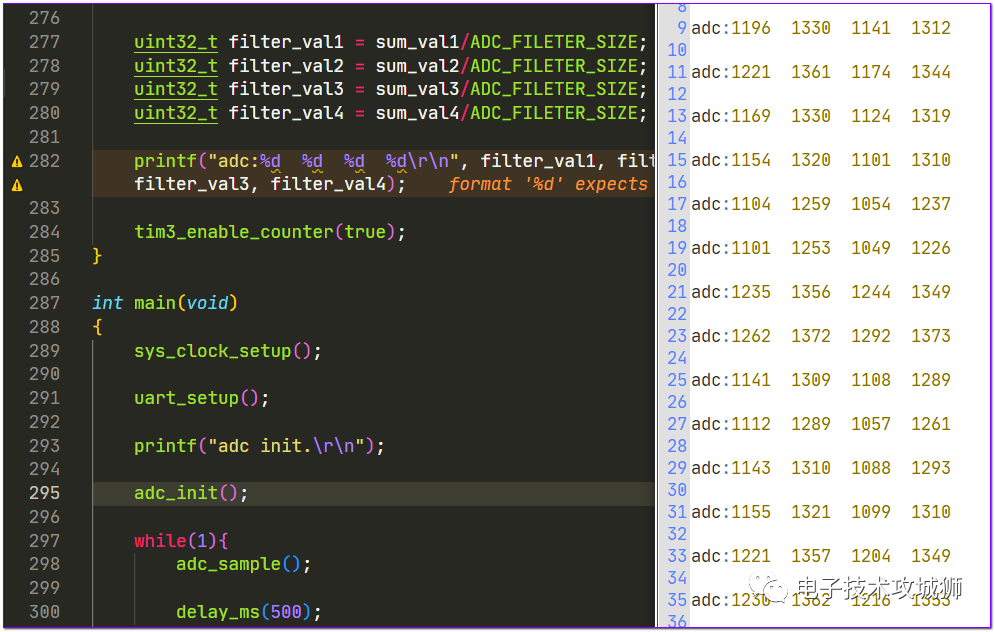

将程序烧写到开发板，然后打开串口可以看到四个ADC通道的数据，在PA0/PA1/PA3/PA4四个引脚连接不同电压可以看到变化：
