STM32G431RBTx 程序设计

[复制链接]

STMCU小助手发布时间：2023-2-28 23:08

文章
文章封面:
文章简介:	STM32G431RBTx 程序设计

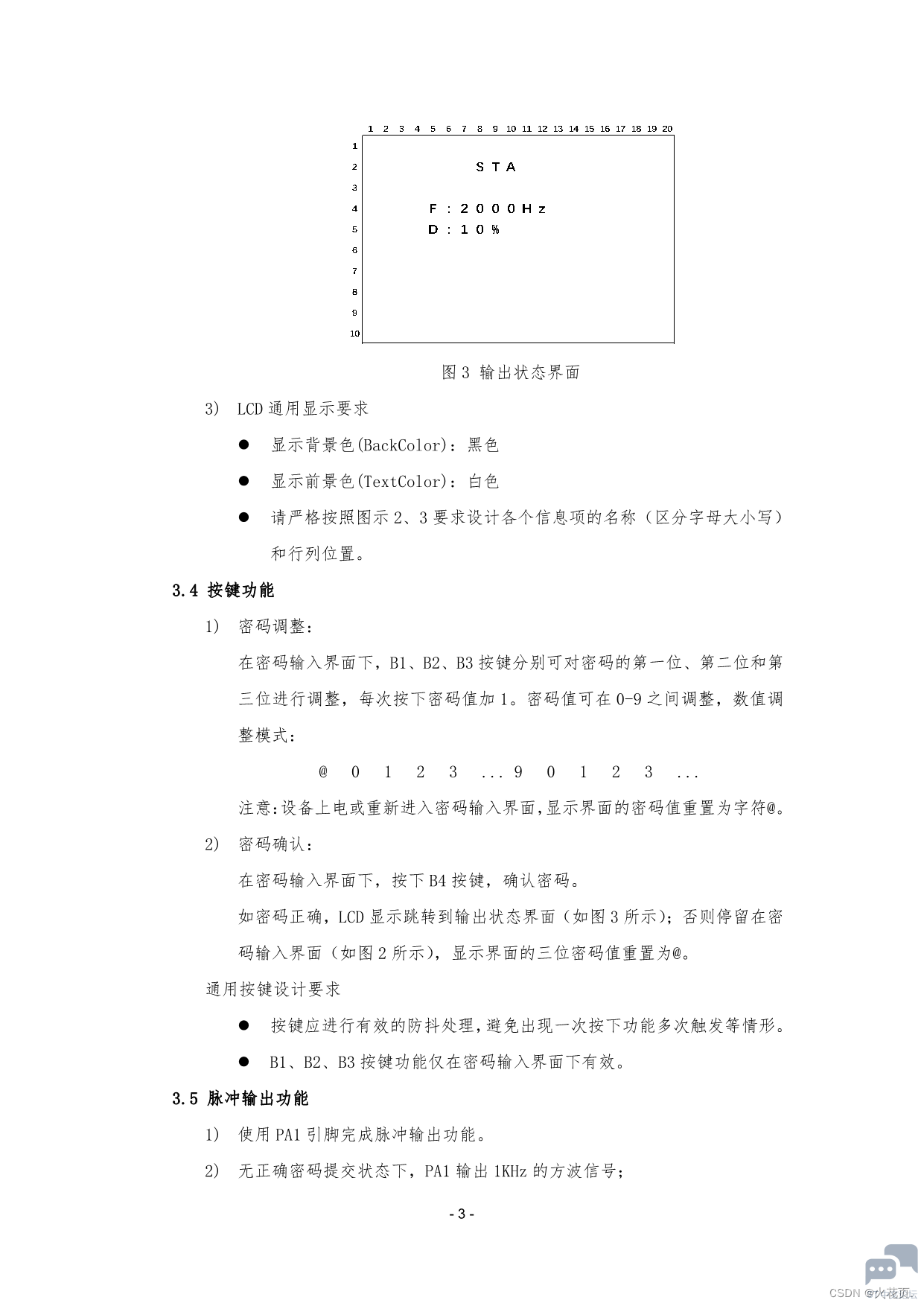

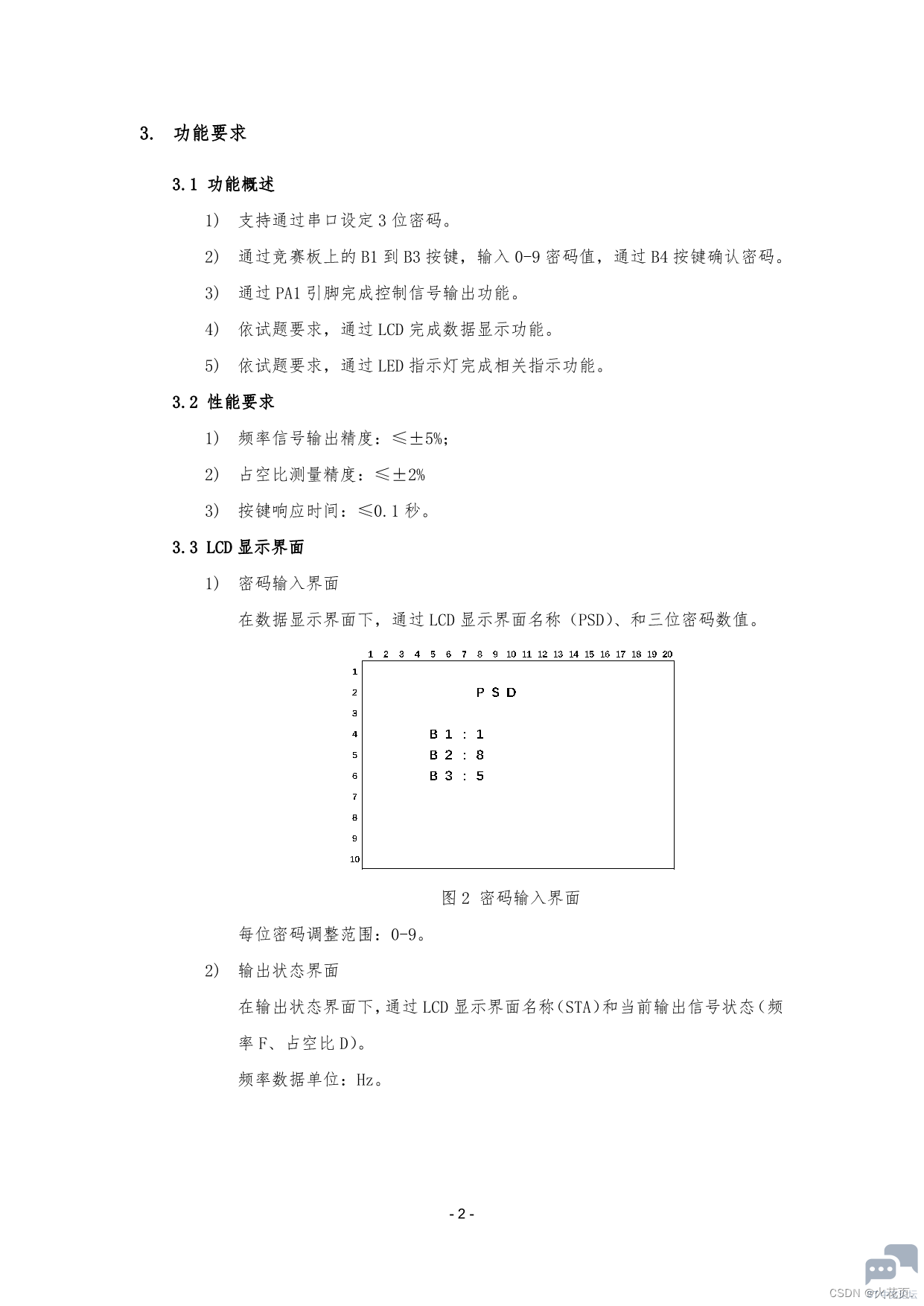

一、题目

二、模块初始化
1.LCD这里不用配置，直接使用提供的资源包就行
2.KEY, 四个按键IO口都要配置，分别是PB0, PB1,PB2,PA0依次是B0,B1,B2,B3不要弄错了
3.LED:开启PC8,PC9,PD2输出模式就行了。
4.定时器:TIM3(按键消抖定时器)

SC:80-1,ARR:10000-1,TIM2CH2(PA1PWM占空比以及频率)

SC:800-1,ARR:100-1,TIM4(控制PWM转换时间以及LD1亮光时间)

SC:80-1,ARR:9999, TIM6(控制LD2闪烁)

SC:800-1,ARR:9999。
5.USART，波特率9600，异步通信模式。

三、代码实现
bsp组**有:

interrupt.h:

#ifndef __INTERRUPT_H__
#define __INTERRUPT_H__
#include "main.h"
#include "stdbool.h"
struct keys
{
bool key_sta;
unsigned char key_judge;
bool single_flag;
unsigned int key_time;
bool long_flag;
};
#endif

复制代码

interrupt.c:

#include "interrupt.h"
#include "tim.h"
#include "lcd.h"
#include "stdio.h"
struct keys key[4] = {0, 0, 0, 0, 0};
unsigned int PWM2kHZtime = 0;
extern unsigned char DisplayMode;
extern unsigned char B1beginInput;
extern unsigned char B2beginInput;
extern unsigned char B3beginInput;
extern unsigned char B1Code;
extern unsigned char B2Code;
extern unsigned char B3Code;
extern unsigned char LED;
unsigned char LD2time = 0;
extern unsigned char clearFlag;
extern unsigned char errorflag;
unsigned char LD2Type = 0;
void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef *htim)
{
if(htim->Instance == TIM3)
{
key[0].key_sta = HAL_GPIO_ReadPin(GPIOB, GPIO_PIN_0);
key[1].key_sta = HAL_GPIO_ReadPin(GPIOB, GPIO_PIN_1);
key[2].key_sta = HAL_GPIO_ReadPin(GPIOB, GPIO_PIN_2);
key[3].key_sta = HAL_GPIO_ReadPin(GPIOA, GPIO_PIN_0);
for(unsigned char i = 0; i < 4; i++)
{
switch(key[i].key_judge)
{
case 0:
{
if(key[i].key_sta == 0)
{
key[i].key_judge = 1;
key[i].key_time = 0;
}
break;
}
case 1:
{
if(key[i].key_sta == 0)
{
key[i].key_judge = 2;
}
else
{
key[i].key_judge = 0;
}
break;
}
case 2:
{
if(key[i].key_sta == 1)
{
key[i].key_judge = 0;
if(key[i].key_time <= 80)
{
key[i].single_flag = 1;
}
}
else
{
key[i].key_time++;
if(key[i].key_time > 80)
{
key[i].long_flag = 1;
}
}
break;
}
}
}
}
if(htim->Instance == TIM4)
{
PWM2kHZtime++;
if(PWM2kHZtime == 500)
{
PWM2kHZtime = 0;
__HAL_TIM_SetCompare(&htim2, TIM_CHANNEL_2, 50);
__HAL_TIM_SET_PRESCALER(&htim2, 800-1);
DisplayMode = PSD;
clearFlag = 1;
B1Code = 0;
B2Code = 0;
B3Code = 0;
B1beginInput = 0;
B2beginInput = 0;
B3beginInput = 0;
LED = LED & 0xfe;
HAL_TIM_Base_Stop_IT(htim);
}
}
if(htim->Instance == TIM6)
{
if(errorflag)
{
LD2time++;
LD2Type = !LD2Type;
LED = LED & 0xfd | (LD2Type << 1);
if(LD2time == 50)
{
LD2time = 0;
HAL_TIM_Base_Stop_IT(&htim6);
}
}
}
}
char RxBuffer[30];
unsigned char Rxdat;
unsigned char BufIndex = 0;
void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart)
{
RxBuffer[BufIndex++] = Rxdat;
HAL_UART_Receive_IT(huart, &Rxdat, 1);
}

复制代码

main.h:

/* USER CODE BEGIN Header */
/**
******************************************************************************
* @file : main.h
* @brief : Header for main.c file.
* This file contains the common defines of the application.
******************************************************************************
* @attention
*
*
* This software component is licensed by ST under BSD 3-Clause license,
* the "License"; You may not use this file except in compliance with the
* License. You may obtain a copy of the License at:
* opensource.org/licenses/BSD-3-Clause
*
******************************************************************************
*/
/* USER CODE END Header */
/* Define to prevent recursive inclusion -------------------------------------*/
#ifndef __MAIN_H
#define __MAIN_H
#ifdef __cplusplus
extern "C" {
#endif
/* Includes ------------------------------------------------------------------*/
#include "stm32g4xx_hal.h"
/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
/* USER CODE END Includes */
/* Exported types ------------------------------------------------------------*/
/* USER CODE BEGIN ET */
/* USER CODE END ET */
/* Exported constants --------------------------------------------------------*/
/* USER CODE BEGIN EC */
/* USER CODE END EC */
/* Exported macro ------------------------------------------------------------*/
/* USER CODE BEGIN EM */
/* USER CODE END EM */
/* Exported functions prototypes ---------------------------------------------*/
void Error_Handler(void);
/* USER CODE BEGIN EFP */
/* USER CODE END EFP */
/* Private defines -----------------------------------------------------------*/
/* USER CODE BEGIN Private defines */
#define PSD 0
#define STA 1
/* USER CODE END Private defines */
#ifdef __cplusplus
}
#endif
#endif /* __MAIN_H */
/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/

复制代码

main.c:

/* USER CODE BEGIN Header */
/**
******************************************************************************
* @file : main.c
* @brief : Main program body
******************************************************************************
* @attention
*
*
* This software component is licensed by ST under BSD 3-Clause license,
* the "License"; You may not use this file except in compliance with the
* License. You may obtain a copy of the License at:
* opensource.org/licenses/BSD-3-Clause
*
******************************************************************************
*/
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "tim.h"
#include "usart.h"
#include "gpio.h"
/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "interrupt.h"
#include "lcd.h"
#include "stdio.h"
#include "stdlib.h"
#include "string.h"
#include "led.h"
/* USER CODE END Includes */
/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */
/* USER CODE END PTD */
/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD */
/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */
/* USER CODE END PM */
/* Private variables ---------------------------------------------------------*/
/* USER CODE BEGIN PV */
extern struct keys key[4];
extern char RxBuffer[30];
extern unsigned char Rxdat;
extern unsigned char BufIndex;
unsigned char DisplayMode;
unsigned char B1beginInput;
unsigned char B2beginInput;
unsigned char B3beginInput;
unsigned char B1Code;
unsigned char B2Code;
unsigned char B3Code;
unsigned int password = 123;
unsigned char LED = 0x00;
unsigned char clearFlag;
unsigned int errorCount;
unsigned char errorflag;
unsigned char oldpassword[4];
unsigned char newpassword[4];
/* USER CODE END PV */
/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */
void DiseposeKey(void);
void Rx_Proc(void);
void LCD_Display(void);
/* USER CODE END PFP */
/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
/* USER CODE END 0 */
/**
* @brief The application entry point.
* @retval int
*/
int main(void)
{
/* USER CODE BEGIN 1 */
/* USER CODE END 1 */
/* MCU Configuration--------------------------------------------------------*/
/* Reset of all peripherals, Initializes the Flash interface and the Systick. */
HAL_Init();
/* USER CODE BEGIN Init */
/* USER CODE END Init */
/* Configure the system clock */
SystemClock_Config();
/* USER CODE BEGIN SysInit */
/* USER CODE END SysInit */
/* Initialize all configured peripherals */
MX_GPIO_Init();
MX_TIM2_Init();
MX_TIM3_Init();
MX_USART1_UART_Init();
MX_TIM4_Init();
MX_TIM6_Init();
/* USER CODE BEGIN 2 */
HAL_TIM_Base_Start_IT(&htim3);
LCD_Init();
LCD_Clear(Black);
LCD_SetBackColor(Black);
LCD_SetTextColor(White);
HAL_UART_Receive_IT(&huart1, &Rxdat, 1);
LED_Display(0x00);
/* USER CODE END 2 */
/* Infinite loop */
/* USER CODE BEGIN WHILE */
while (1)
{
/* USER CODE END WHILE */
/* USER CODE BEGIN 3 */
if(BufIndex != 0)
{
unsigned char temp = BufIndex;
HAL_Delay(1);
if(temp == BufIndex)
Rx_Proc();
}
DiseposeKey();
LED_Display(LED);
LCD_Display();
}
/* USER CODE END 3 */
}
/**
* @brief System Clock Configuration
* @retval None
*/
void SystemClock_Config(void)
{
RCC_OscInitTypeDef RCC_OscInitStruct = {0};
RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};
RCC_PeriphCLKInitTypeDef PeriphClkInit = {0};
/** Configure the main internal regulator output voltage
*/
HAL_PWREx_ControlVoltageScaling(PWR_REGULATOR_VOLTAGE_SCALE1);
/** Initializes the RCC Oscillators according to the specified parameters
* in the RCC_OscInitTypeDef structure.
*/
RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
RCC_OscInitStruct.HSEState = RCC_HSE_ON;
RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
RCC_OscInitStruct.PLL.PLLM = RCC_PLLM_DIV3;
RCC_OscInitStruct.PLL.PLLN = 20;
RCC_OscInitStruct.PLL.PLLP = RCC_PLLP_DIV2;
RCC_OscInitStruct.PLL.PLLQ = RCC_PLLQ_DIV2;
RCC_OscInitStruct.PLL.PLLR = RCC_PLLR_DIV2;
if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
{
Error_Handler();
}
/** Initializes the CPU, AHB and APB buses clocks
*/
RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
|RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;
RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;
if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
{
Error_Handler();
}
/** Initializes the peripherals clocks
*/
PeriphClkInit.PeriphClockSelection = RCC_PERIPHCLK_USART1;
PeriphClkInit.Usart1ClockSelection = RCC_USART1CLKSOURCE_PCLK2;
if (HAL_RCCEx_PeriphCLKConfig(&PeriphClkInit) != HAL_OK)
{
Error_Handler();
}
}
/* USER CODE BEGIN 4 */
void LCD_Display(void)
{
if(DisplayMode == PSD)
{
if(clearFlag)
{
LCD_Clear(Black);
clearFlag = 0;
}
char text[30];
LCD_DisplayStringLine(Line1, " PSD");
if(B1beginInput == 0)
LCD_DisplayStringLine(Line3, " B1:@");
else
{
sprintf(text, " B1:%d", B1Code);
LCD_DisplayStringLine(Line3, text);
}
if(B2beginInput == 0)
LCD_DisplayStringLine(Line5, " B2:@");
else
{
sprintf(text, " B2:%d", B2Code);
LCD_DisplayStringLine(Line5, text);
}
if(B3beginInput == 0)
LCD_DisplayStringLine(Line7, " B3:@");
else
{
sprintf(text, " B3:%d", B3Code);
LCD_DisplayStringLine(Line7, text);
}
}
if(DisplayMode == STA)
{
char text[30];
LCD_DisplayStringLine(Line1, " STA");
sprintf(text, " F:%dHZ", 80000000 / (TIM2->PSC + 1) / 100);
LCD_DisplayStringLine(Line3, text);
sprintf(text, " D:%d%%", TIM2->CCR2);
LCD_DisplayStringLine(Line4, text);
}
}
void DiseposeKey(void)
{
if(key[0].single_flag)
{
if(B1beginInput == 0)
B1beginInput = 1;
else
{
B1Code++;
B1Code %= 10;
}
key[0].single_flag = 0;
}
if(key[1].single_flag)
{
if(B2beginInput == 0)
B2beginInput = 1;
else
{
B2Code++;
B2Code %= 10;
}
key[1].single_flag = 0;
}
if(key[2].single_flag)
{
if(B3beginInput == 0)
B3beginInput = 1;
else
{
B3Code++;
B3Code %= 10;
}
key[2].single_flag = 0;
}
if(key[3].single_flag)
{
if(B1beginInput && B2beginInput && B3beginInput)
{
if(password == B1Code * 100 + B2Code * 10 + B3Code)
{
DisplayMode = STA;
LCD_Clear(Black);
__HAL_TIM_SetCompare(&htim2, TIM_CHANNEL_2, 10);
__HAL_TIM_SET_PRESCALER(&htim2, 400-1);
LED = LED & 0xfe | 0x01;
HAL_TIM_Base_Start_IT(&htim4);
errorCount = 0;
errorflag = 0;
}
else
{
B1Code = 0;
B2Code = 0;
B3Code = 0;
B1beginInput = 0;
B2beginInput = 0;
B3beginInput = 0;
errorCount++;
if(errorCount >= 3)
HAL_TIM_Base_Start_IT(&htim6);
errorflag = 1;
}
}
key[3].single_flag = 0;
}
}
int fputc(int ch, FILE *f)
{
HAL_UART_Transmit(&huart1, (unsigned char *)&ch, 1, HAL_MAX_DELAY);
return ch;
}
void Rx_Proc(void)
{
if(BufIndex == 7)
{
sscanf(RxBuffer, "%3s-%3s", oldpassword, newpassword);
if((oldpassword[0] - '0') * 100 + (oldpassword[1] - '0') * 10 + oldpassword[2] - '0'== password)
{
password = (newpassword[0] - '0') * 100 + (newpassword[1] - '0') * 10 + newpassword[2] - '0';
}
}
BufIndex = 0;
memset(RxBuffer, 0, 30);
}
/* USER CODE END 4 */
/**
* @brief This function is executed in case of error occurrence.
* @retval None
*/
void Error_Handler(void)
{
/* USER CODE BEGIN Error_Handler_Debug */
/* User can add his own implementation to report the HAL error return state */
__disable_irq();
while (1)
{
}
/* USER CODE END Error_Handler_Debug */
}
#ifdef USE_FULL_ASSERT
/**
* @brief Reports the name of the source file and the source line number
* where the assert_param error has occurred.
* @param file: pointer to the source file name
* @param line: assert_param error line source number
* @retval None
*/
void assert_failed(uint8_t *file, uint32_t line)
{
/* USER CODE BEGIN 6 */
/* User can add his own implementation to report the file name and line number,
ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
/* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */
/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/
