STM32G431RBTx 电压测量监控设备

[复制链接]

STMCU小助手发布时间：2023-3-1 18:46

文章
文章封面:
文章简介:	STM32G431RBTx 电压测量监控设备

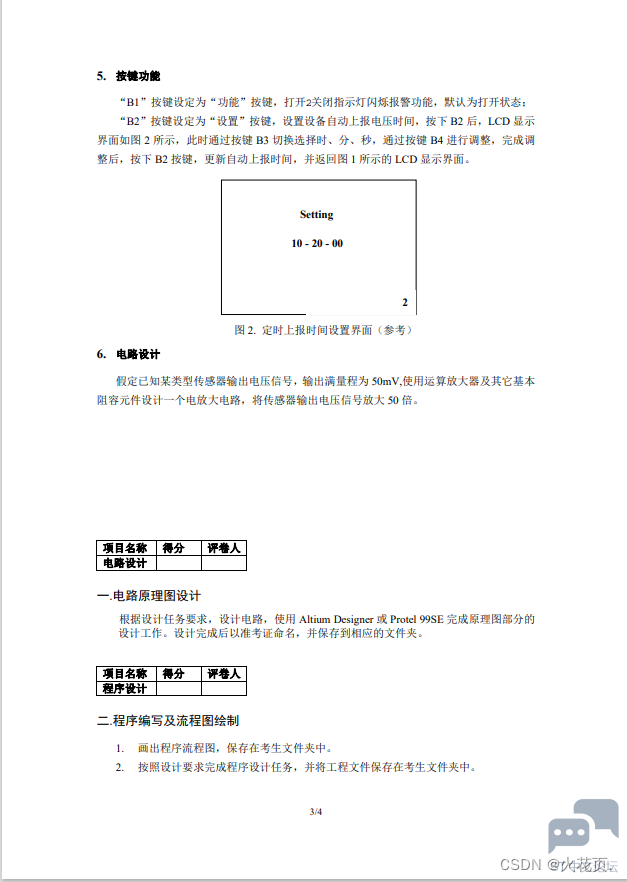

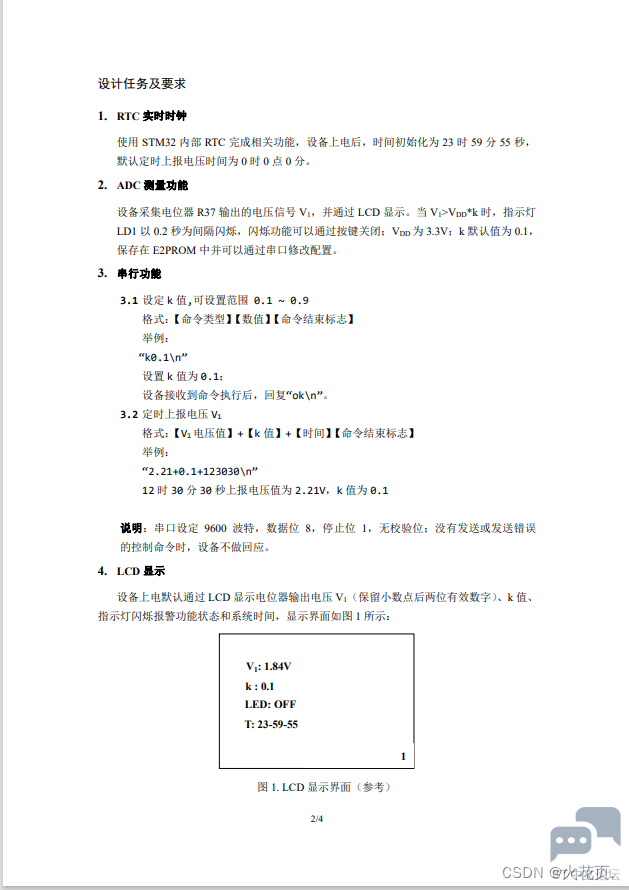

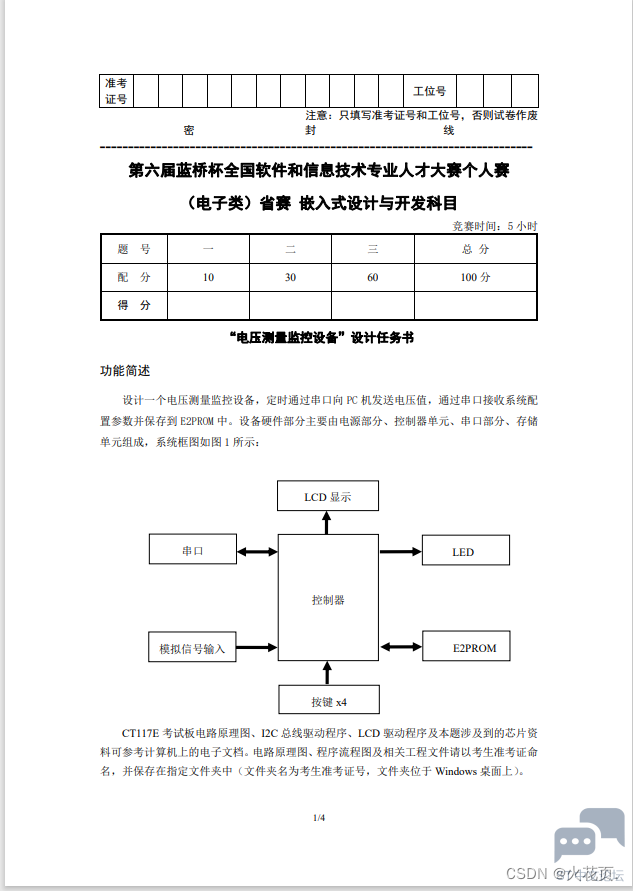

一、题目

二、模块初始化
1.LCD这里不用配置，直接使用提供的资源包就行
2.KEY, 四个按键IO口都要配置，分别是PB0, PB1,PB2,PA0依次是B0,B1,B2,B3不要弄错了
3.LED:开启PC8,PD2输出模式就行了。
4.定时器:TIM3(按键消抖定时器)

SC:80-1,ARR:10000-1,TIM4(控制LED闪烁)

SC:80-1,ARR:10000-1。
5.ADC

B15作为ADC2IN15通道，开启single-ended模式。
6.EEPROM

B6,PB7输出模式。

三、代码实现

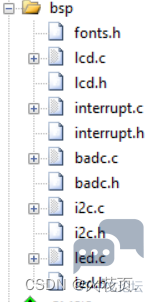

bsp组有:

在这里只展示interrupt.h,interrupt.h,main.c,main.h的代码，其他文件的代码可到基本模块篇获取。
interrupt.h:

#ifndef __INTERRUPT_H__
#define __INTERRUPT_H__
#include "main.h"
#include "stdbool.h"
struct keys
{
bool key_sta;
unsigned char judge_sta;
bool single_flag;
unsigned int key_time;
bool long_flag;
};
#endif

复制代码

interrupt.c:

#include "interrupt.h"
#include "lcd.h"
#include "stdio.h"
char RxBuffer[30];
unsigned char BufIndex;
unsigned char Rxdat;
extern unsigned char LEDTime;
extern unsigned char LED;
unsigned char LEDType;
extern unsigned char ledMode;
struct keys key[4] = {0, 0, 0, 0, 0};
void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart)
{
RxBuffer[BufIndex++] = Rxdat;
HAL_UART_Receive_IT(huart, &Rxdat, 1);
}
void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef *htim)
{
if(htim->Instance == TIM3)
{
key[0].key_sta = HAL_GPIO_ReadPin(GPIOB, GPIO_PIN_0);
key[1].key_sta = HAL_GPIO_ReadPin(GPIOB, GPIO_PIN_1);
key[2].key_sta = HAL_GPIO_ReadPin(GPIOB, GPIO_PIN_2);
key[3].key_sta = HAL_GPIO_ReadPin(GPIOA, GPIO_PIN_0);
for(unsigned char i = 0; i < 4; i++)
{
switch(key[i].judge_sta)
{
case 0:
{
if(key[i].key_sta == 0)
{
key[i].judge_sta = 1;
key[i].key_time = 0;
}
break;
}
case 1:
{
if(key[i].key_sta == 0)
{
key[i].judge_sta = 2;
}
else
{
key[i].judge_sta = 0;
}
break;
}
case 2:
{
if(key[i].key_sta == 1)
{
key[i].judge_sta = 0;
if(key[i].key_time <= 80)
{
key[i].single_flag = 1;
}
}
else
{
key[i].key_time++;
if(key[i].key_time > 80)
{
key[i].long_flag = 1;
}
}
break;
}
}
}
}
if(htim->Instance == TIM4)
{
LEDTime++;
if(ledMode == ON)
{
if(LEDTime == 20)
{
LEDType = !LEDType;
LED = LED & 0xfe | LEDType;
LEDTime = 0;
}
}
}
}

复制代码

main.h:

/* USER CODE BEGIN Header */
/**
******************************************************************************
* @file : main.h
* @brief : Header for main.c file.
* This file contains the common defines of the application.
******************************************************************************
* @attention
*
*
* This software component is licensed by ST under BSD 3-Clause license,
* the "License"; You may not use this file except in compliance with the
* License. You may obtain a copy of the License at:
* opensource.org/licenses/BSD-3-Clause
*
******************************************************************************
*/
/* USER CODE END Header */
/* Define to prevent recursive inclusion -------------------------------------*/
#ifndef __MAIN_H
#define __MAIN_H
#ifdef __cplusplus
extern "C" {
#endif
/* Includes ------------------------------------------------------------------*/
#include "stm32g4xx_hal.h"
/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
/* USER CODE END Includes */
/* Exported types ------------------------------------------------------------*/
/* USER CODE BEGIN ET */
/* USER CODE END ET */
/* Exported constants --------------------------------------------------------*/
/* USER CODE BEGIN EC */
/* USER CODE END EC */
/* Exported macro ------------------------------------------------------------*/
/* USER CODE BEGIN EM */
/* USER CODE END EM */
/* Exported functions prototypes ---------------------------------------------*/
void Error_Handler(void);
/* USER CODE BEGIN EFP */
/* USER CODE END EFP */
/* Private defines -----------------------------------------------------------*/
/* USER CODE BEGIN Private defines */
#define DATA 0
#define PARA 1
#define HOUR 0
#define MINUTE 1
#define SECOND 2
#define OFF 1
#define ON 0
/* USER CODE END Private defines */
#ifdef __cplusplus
}
#endif
#endif /* __MAIN_H */
/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/

复制代码

main.c:

/* USER CODE BEGIN Header */
/**
******************************************************************************
* @file : main.c
* @brief : Main program body
******************************************************************************
* @attention
*
*
* This software component is licensed by ST under BSD 3-Clause license,
* the "License"; You may not use this file except in compliance with the
* License. You may obtain a copy of the License at:
* opensource.org/licenses/BSD-3-Clause
*
******************************************************************************
*/
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "adc.h"
#include "rtc.h"
#include "tim.h"
#include "usart.h"
#include "gpio.h"
/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "lcd.h"
#include "stdio.h"
#include "stdlib.h"
#include "string.h"
#include "interrupt.h"
#include "badc.h"
#include "i2c.h"
#include "led.h"
/* USER CODE END Includes */
/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */
/* USER CODE END PTD */
/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD */
/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */
/* USER CODE END PM */
/* Private variables ---------------------------------------------------------*/
/* USER CODE BEGIN PV */
RTC_TimeTypeDef T;
RTC_DateTypeDef D;
unsigned char second = 255;
extern char RxBuffer[30];
extern unsigned char BufIndex;
extern unsigned char Rxdat;
extern struct keys key[4];
unsigned char DisplayMode;
unsigned int globalADC;
unsigned char TimeCheckStore[3];
unsigned char SettingIndex;
unsigned char i = 0;
unsigned char ledMode;
float k = 0.1;
unsigned char LEDTime;
unsigned char LED;
/* USER CODE END PV */
/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */
void Rx_Proc(void);
void DisposeKey(void);
void LCD_Display(void);
void Judge_LEDFlash(void);
/* USER CODE END PFP */
/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
/* USER CODE END 0 */
/**
* @brief The application entry point.
* @retval int
*/
int main(void)
{
/* USER CODE BEGIN 1 */
/* USER CODE END 1 */
/* MCU Configuration--------------------------------------------------------*/
/* Reset of all peripherals, Initializes the Flash interface and the Systick. */
HAL_Init();
/* USER CODE BEGIN Init */
/* USER CODE END Init */
/* Configure the system clock */
SystemClock_Config();
/* USER CODE BEGIN SysInit */
/* USER CODE END SysInit */
/* Initialize all configured peripherals */
MX_GPIO_Init();
MX_RTC_Init();
MX_USART1_UART_Init();
MX_ADC2_Init();
MX_TIM3_Init();
MX_TIM4_Init();
/* USER CODE BEGIN 2 */
LCD_Init();
LCD_Clear(Black);
LCD_SetBackColor(Black);
LCD_SetTextColor(White);
HAL_UART_Receive_IT(&huart1, &Rxdat, 1);
HAL_TIM_Base_Start_IT(&htim3);
k = eeprom_read(0x01) / 10.0;
LED_Display(0x00);
/* USER CODE END 2 */
/* Infinite loop */
/* USER CODE BEGIN WHILE */
while (1)
{
/* USER CODE END WHILE */
/* USER CODE BEGIN 3 */
HAL_RTC_GetTime(&hrtc, &T, RTC_FORMAT_BIN);
HAL_RTC_GetDate(&hrtc, &D, RTC_FORMAT_BIN);
globalADC = getADC(&hadc2);
Judge_LEDFlash();
if(BufIndex != 0)
{
unsigned char temp = BufIndex;
HAL_Delay(1);
if(temp == BufIndex)
Rx_Proc();
}
DisposeKey();
LED_Display(LED);
LCD_Display();
}
/* USER CODE END 3 */
}
/**
* @brief System Clock Configuration
* @retval None
*/
void SystemClock_Config(void)
{
RCC_OscInitTypeDef RCC_OscInitStruct = {0};
RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};
RCC_PeriphCLKInitTypeDef PeriphClkInit = {0};
/** Configure the main internal regulator output voltage
*/
HAL_PWREx_ControlVoltageScaling(PWR_REGULATOR_VOLTAGE_SCALE1);
/** Initializes the RCC Oscillators according to the specified parameters
* in the RCC_OscInitTypeDef structure.
*/
RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
RCC_OscInitStruct.HSEState = RCC_HSE_ON;
RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
RCC_OscInitStruct.PLL.PLLM = RCC_PLLM_DIV3;
RCC_OscInitStruct.PLL.PLLN = 20;
RCC_OscInitStruct.PLL.PLLP = RCC_PLLP_DIV2;
RCC_OscInitStruct.PLL.PLLQ = RCC_PLLQ_DIV2;
RCC_OscInitStruct.PLL.PLLR = RCC_PLLR_DIV2;
if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
{
Error_Handler();
}
/** Initializes the CPU, AHB and APB buses clocks
*/
RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
|RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;
RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;
if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
{
Error_Handler();
}
/** Initializes the peripherals clocks
*/
PeriphClkInit.PeriphClockSelection = RCC_PERIPHCLK_RTC|RCC_PERIPHCLK_USART1
|RCC_PERIPHCLK_ADC12;
PeriphClkInit.Usart1ClockSelection = RCC_USART1CLKSOURCE_PCLK2;
PeriphClkInit.Adc12ClockSelection = RCC_ADC12CLKSOURCE_SYSCLK;
PeriphClkInit.RTCClockSelection = RCC_RTCCLKSOURCE_HSE_DIV32;
if (HAL_RCCEx_PeriphCLKConfig(&PeriphClkInit) != HAL_OK)
{
Error_Handler();
}
}
/* USER CODE BEGIN 4 */
void Rx_Proc(void)
{
if(BufIndex == 5 && RxBuffer[0] == 'k' && RxBuffer[1] == '0' && RxBuffer[2] == '.' && RxBuffer[3] <= '9' && RxBuffer[3] >= '1' && RxBuffer[4] == ' ')
{
printf(RxBuffer);
k = strtod(RxBuffer + 1, NULL);
eeprom_write(0x01, (unsigned char)(k * 10));
printf("ok\n");
}
BufIndex = 0;
memset(RxBuffer, 0, 30);
}
int fputc(int ch, FILE *f)
{
HAL_UART_Transmit(&huart1, (unsigned char *)&ch, 1, HAL_MAX_DELAY);
return ch;
}
void DisposeKey(void)
{
if(key[0].single_flag)
{
ledMode = !ledMode;
if(ledMode == OFF)
{
HAL_TIM_Base_Stop_IT(&htim4);
LED = 0x00;
}
key[0].single_flag = 0;
}
if(key[1].single_flag)
{
if(DisplayMode == DATA)
{
DisplayMode = PARA;
LCD_Clear(Black);
}
else if(DisplayMode == PARA)
{
DisplayMode = DATA;
LCD_Clear(Black);
}
key[1].single_flag = 0;
}
if(key[2].single_flag)
{
if(DisplayMode == PARA)
{
SettingIndex++;
SettingIndex %= 3;
}
key[2].single_flag = 0;
}
if(key[3].single_flag)
{
if(DisplayMode == PARA)
{
if(SettingIndex == HOUR)
{
TimeCheckStore[HOUR]++;
TimeCheckStore[0] %= 24;
}
if(SettingIndex == MINUTE)
{
TimeCheckStore[MINUTE]++;
TimeCheckStore[1] %= 60;
}
if(SettingIndex == SECOND)
{
TimeCheckStore[SECOND]++;
TimeCheckStore[2] %= 60;
}
}
key[3].single_flag = 0;
}
if(key[3].long_flag)
{
if(DisplayMode == PARA)
{
i++;
if(i == 10)
{
i = 0;
if(SettingIndex == HOUR)
{
TimeCheckStore[HOUR]++;
TimeCheckStore[0] %= 24;
}
if(SettingIndex == MINUTE)
{
TimeCheckStore[MINUTE]++;
TimeCheckStore[1] %= 60;
}
if(SettingIndex == SECOND)
{
TimeCheckStore[SECOND]++;
TimeCheckStore[2] %= 60;
}
}
}
key[3].long_flag = 0;
}
}
void LCD_Display(void)
{
if(DisplayMode == DATA)
{
char text[30];
if(second != T.Seconds)
{
second = T.Seconds;
sprintf(text, " T:%02d-%02d-%02d", T.Hours, T.Minutes, T.Seconds);
LCD_DisplayStringLine(Line5, text);
if(TimeCheckStore[HOUR] == T.Hours && TimeCheckStore[MINUTE] == T.Minutes && TimeCheckStore[SECOND] == T.Seconds)
{
printf("%.2f+%.1f+%02d%02d%02d\n", globalADC * 3.3 / 4096, k, T.Hours, T.Minutes, T.Seconds);
}
}
sprintf(text, " V1:%.2fV", globalADC * 3.3 /4096);
LCD_DisplayStringLine(Line2, text);
sprintf(text, " k:%0.1f", k);
LCD_DisplayStringLine(Line3, text);
if(ledMode == ON)
{
sprintf(text, " LED:ON ");
}
else
{
sprintf(text, " LED:OFF");
}
LCD_DisplayStringLine(Line4, text);
}
if(DisplayMode == PARA)
{
LCD_DisplayStringLine(Line2, " Setting");
char text[30];
sprintf(text, " %02d-%02d-%02d", TimeCheckStore[HOUR], TimeCheckStore[MINUTE], TimeCheckStore[SECOND]);
LCD_DisplayStringLine(Line4, text);
LCD_SetTextColor(Green);
LCD_DisplayChar(Line4, 319 - (SettingIndex * 3 + 3) *16, TimeCheckStore[SettingIndex] / 10 + '0');
LCD_DisplayChar(Line4, 319 - (SettingIndex * 3 + 4) *16, TimeCheckStore[SettingIndex] % 10 + '0');
LCD_SetTextColor(White);
}
}
void Judge_LEDFlash(void)
{
if(ledMode == ON)
{
if((globalADC * 3.3f / 4096.0f) > (3.3f * (float)k))
{
HAL_TIM_Base_Start_IT(&htim4);
}
else
{
HAL_TIM_Base_Stop_IT(&htim4);
LED = 0x00;
}
}
}
/* USER CODE END 4 */
/**
* @brief This function is executed in case of error occurrence.
* @retval None
*/
void Error_Handler(void)
{
/* USER CODE BEGIN Error_Handler_Debug */
/* User can add his own implementation to report the HAL error return state */
__disable_irq();
while (1)
{
}
/* USER CODE END Error_Handler_Debug */
}
#ifdef USE_FULL_ASSERT
/**
* @brief Reports the name of the source file and the source line number
* where the assert_param error has occurred.
* @param file: pointer to the source file name
* @param line: assert_param error line source number
* @retval None
*/
void assert_failed(uint8_t *file, uint32_t line)
{
/* USER CODE BEGIN 6 */
/* User can add his own implementation to report the file name and line number,
ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
/* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */
/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/
