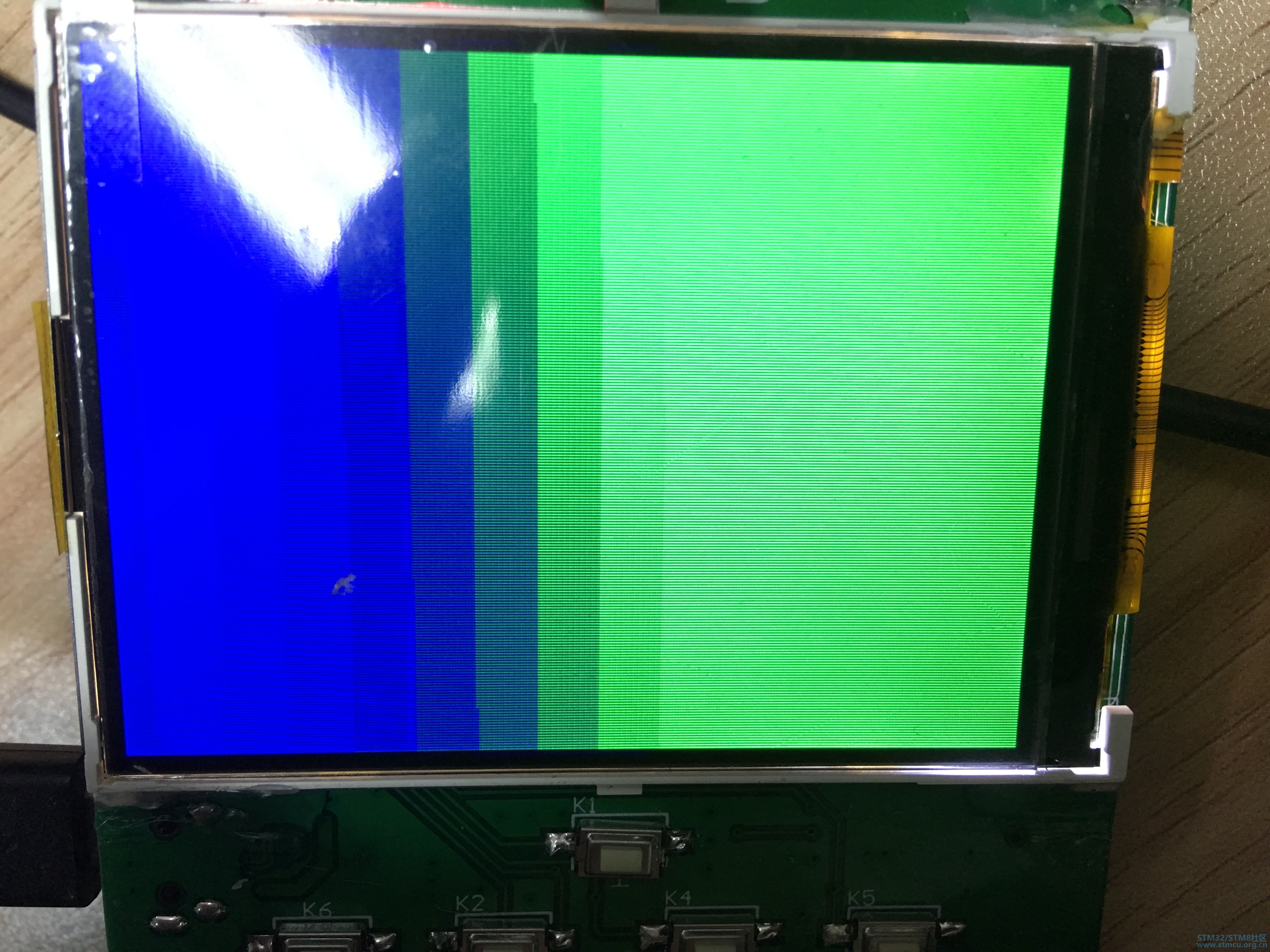

stm32f407 2.8寸 IPS液晶屏S6D04M0X21驱动

[复制链接]
sxdahss 发布时间：2018-12-11 08:53
  1. #include "main.h"
    * e' f! e6 X, |) K. K
  2.
    2 I( `: Y& S, z& w, u$ s
  3.   ^( x, w; W# F6 W8 f1 M: \
  4. void LCD_Init(void)
    / e1 s8 A+ ~$ O
  5. {         6 v+ ~* C0 L( }! L1 E. b

  6. % M) X6 ]% c1 J0 L
  7.   GPIO_InitTypeDef  GPIO_InitStructure;
    3 ^+ L! X( d1 J( p/ Y8 e
  8.         FSMC_NORSRAMInitTypeDef  FSMC_NORSRAMInitStructure;5 z4 {+ w! X& D9 g
  9.   FSMC_NORSRAMTimingInitTypeDef  readWriteTiming;
    . w# m5 P; l5 V' B; o
  10.         FSMC_NORSRAMTimingInitTypeDef  writeTiming;3 ]# t6 N  N8 O$ k
  11.
    3 ]  r7 e. Q1 ~' x& O- F* g
  12.         RCC_AHB1PeriphClockCmd(RCC_AHB1Periph_GPIOD|RCC_AHB1Periph_GPIOE, ENABLE);//使能PD,PE时钟    F8 L# N/ N- `. ^3 t
  13.   RCC_AHB3PeriphClockCmd(RCC_AHB3Periph_FSMC,ENABLE);//使能FSMC时钟  % ^0 h9 E- }+ _. g
  14.         9 j5 o/ u( ~8 Z& o
  15. # B$ F$ Q0 x  R1 O
  16.         GPIO_InitStructure.GPIO_Pin = GPIO_Pin_12|GPIO_Pin_13;//PD12 RESET PD13 推挽输出,控制背光
    1 c7 T8 {! O- J$ H( J
  17.   GPIO_InitStructure.GPIO_Mode = GPIO_Mode_OUT;//普通输出模式: c, d1 o8 {* _( @1 W
  18.   GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;//推挽输出
    ' K$ X& t3 D3 ~! h) ^* U
  19.   GPIO_InitStructure.GPIO_Speed = GPIO_Speed_100MHz;//100MHz$ N# m4 K" q/ C7 v7 S
  20.   GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_UP;//上拉& y/ f* U  `. Z( i/ l9 d
  21.   GPIO_Init(GPIOD, &GPIO_InitStructure);//初始化 //PB15 推挽输出,控制背光& a0 u4 P3 \" L; }4 L# k/ _7 d
  22.
    + o' \4 q+ ]) ~+ `6 b- ]8 T
  23.   GPIO_InitStructure.GPIO_Pin = GPIO_Pin_0 |GPIO_Pin_1 |GPIO_Pin_4 |GPIO_Pin_5 |GPIO_Pin_7 |\, ]2 [: T; o& h% F9 E, t
  24.                                       GPIO_Pin_8 |GPIO_Pin_9 |GPIO_Pin_10|GPIO_Pin_11|GPIO_Pin_14|\$ Y% o4 I' |1 J1 s
  25.                                       GPIO_Pin_15;//PD0,1,4,5,7,8,9,10,11,14,15 AF OUT$ `) D3 D4 R: k: ]. C
  26.   GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF;//复用输出
    : {6 @. }# |, J3 u
  27.   GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;//推挽输出& p9 V6 |, o7 O2 p" r' A6 \$ E
  28.   GPIO_InitStructure.GPIO_Speed = GPIO_Speed_100MHz;//100MHz0 r$ v, ~$ ^6 i# q( V9 R( z7 J  u1 _
  29.   GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_UP;//上拉" A, l, U# U" Z0 T, s% d6 Q) X8 P
  30.   GPIO_Init(GPIOD, &GPIO_InitStructure);//初始化
    9 \6 H, }4 F; N! \& m
  31.         * R9 @8 U% Q5 r, X9 |% b7 l2 L
  32.   GPIO_InitStructure.GPIO_Pin = GPIO_Pin_7 |GPIO_Pin_8 |GPIO_Pin_9 |GPIO_Pin_10|GPIO_Pin_11|\0 p/ Z+ t7 o5 N; L
  33.                                       GPIO_Pin_12|GPIO_Pin_13|GPIO_Pin_14|GPIO_Pin_15;//PE7~15,AF OUT
    # p: C8 L% y7 ?$ T; x$ N5 M+ E6 [
  34.   GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF;//复用输出+ v$ V* c+ ~. f" b0 ]7 e
  35.   GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;//推挽输出7 G/ O) I; M+ H
  36.   GPIO_InitStructure.GPIO_Speed = GPIO_Speed_100MHz;//100MHz
    3 ]& F7 ~5 M2 T" O9 u1 P
  37.   GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_UP;//上拉
    " w$ ^8 R3 z0 O: k6 ^
  38.   GPIO_Init(GPIOE, &GPIO_InitStructure);//初始化
    , q+ i6 q4 I4 Y! N
  39. 4 U2 P/ }- p2 ^( A6 p" ?* t! n  M
  40.   GPIO_PinAFConfig(GPIOD,GPIO_PinSource0,GPIO_AF_FSMC);//PD0,AF12
    7 C* i4 \" @6 F$ F# C& W0 T
  41.   GPIO_PinAFConfig(GPIOD,GPIO_PinSource1,GPIO_AF_FSMC);//PD1,AF12
    6 N6 L6 B( J7 x0 D6 X( U& X* {
  42.   GPIO_PinAFConfig(GPIOD,GPIO_PinSource4,GPIO_AF_FSMC);
    3 \' o9 g; B! P, Q3 b5 {3 {
  43.   GPIO_PinAFConfig(GPIOD,GPIO_PinSource5,GPIO_AF_FSMC);
      ~2 h- L$ P7 v+ ?4 r" P+ v
  44.   GPIO_PinAFConfig(GPIOD,GPIO_PinSource7,GPIO_AF_FSMC); 1 o6 a" T5 {, h" I
  45.   GPIO_PinAFConfig(GPIOD,GPIO_PinSource8,GPIO_AF_FSMC);
    9 e, M9 p- L# M9 d; t# G
  46.   GPIO_PinAFConfig(GPIOD,GPIO_PinSource9,GPIO_AF_FSMC);
    % D- C0 s2 z+ t: A
  47.   GPIO_PinAFConfig(GPIOD,GPIO_PinSource10,GPIO_AF_FSMC);. P( C/ h# @7 G. L
  48.   GPIO_PinAFConfig(GPIOD,GPIO_PinSource11,GPIO_AF_FSMC);; y  j" g& ~* D
  49.   GPIO_PinAFConfig(GPIOD,GPIO_PinSource12,GPIO_AF_FSMC);1 |6 @8 |9 {& m# k7 N  t
  50.   GPIO_PinAFConfig(GPIOD,GPIO_PinSource14,GPIO_AF_FSMC);; _/ a" L1 n+ Q& [
  51.   GPIO_PinAFConfig(GPIOD,GPIO_PinSource15,GPIO_AF_FSMC);//PD15,AF12/ ]! E9 s: y* P1 Y
  52. 0 }4 y) p1 C3 I, R) F
  53.   GPIO_PinAFConfig(GPIOE,GPIO_PinSource7,GPIO_AF_FSMC);//PE7,AF12
    " R! g4 ~' z3 ~& b; K+ N9 l
  54.   GPIO_PinAFConfig(GPIOE,GPIO_PinSource8,GPIO_AF_FSMC);- y8 D. Q% r, |- ^3 b
  55.   GPIO_PinAFConfig(GPIOE,GPIO_PinSource9,GPIO_AF_FSMC);) Y" I# W$ W0 X; N
  56.   GPIO_PinAFConfig(GPIOE,GPIO_PinSource10,GPIO_AF_FSMC);4 \, V5 l- d1 @- v1 u
  57.   GPIO_PinAFConfig(GPIOE,GPIO_PinSource11,GPIO_AF_FSMC);! ~2 f8 ~1 G' |, h' ~5 r3 R
  58.   GPIO_PinAFConfig(GPIOE,GPIO_PinSource12,GPIO_AF_FSMC);
    , Z$ Y( F! Y# Q
  59.   GPIO_PinAFConfig(GPIOE,GPIO_PinSource13,GPIO_AF_FSMC);+ D6 [- y/ A6 q7 s$ H2 a
  60.   GPIO_PinAFConfig(GPIOE,GPIO_PinSource14,GPIO_AF_FSMC);& C# s. @; m9 M: h
  61.   GPIO_PinAFConfig(GPIOE,GPIO_PinSource15,GPIO_AF_FSMC);//PE15,AF12
    ! b$ H- V2 d* W: F; m6 u* z! T
  62. $ y$ m8 h' j) h. Q: P! T$ A

  63. 8 r! ^6 O. U1 C7 t
  64.   readWriteTiming.FSMC_AddressSetupTime = 0XF;         //地址建立时间（ADDSET）为16个HCLK 1/168M=6ns*16=96ns
    6 B& N! B; ~/ I0 _
  65.   readWriteTiming.FSMC_AddressHoldTime = 0x00;         //地址保持时间（ADDHLD）模式A未用到
    , Q5 w+ I0 @  K4 c
  66.   readWriteTiming.FSMC_DataSetupTime = 60;                        //数据保存时间为60个HCLK        =6*60=360ns- \" G3 d) q% z
  67.   readWriteTiming.FSMC_BusTurnAroundDuration = 0x00;9 E8 O# m6 N# e9 \8 G8 l: V
  68.   readWriteTiming.FSMC_CLKDivision = 0x00;
    * \7 p  B$ R% q: l: P' W* \
  69.   readWriteTiming.FSMC_DataLatency = 0x00;
    / D' _( p5 b" K$ E6 t) F$ ^
  70.   readWriteTiming.FSMC_AccessMode = FSMC_AccessMode_A;         //模式A
    8 {% u) K- v: R
  71.
    ! S7 S6 J( ]1 [
  72. ( N" E2 Z/ p) ^" r3 ^
  73.         writeTiming.FSMC_AddressSetupTime =9;              //地址建立时间（ADDSET）为9个HCLK =54ns 6 Z+ U' Q4 X) G, k+ W4 C4 X
  74.   writeTiming.FSMC_AddressHoldTime = 0x00;         //地址保持时间（A
    3 ?) m# R& K8 m4 j6 x# Q
  75.   writeTiming.FSMC_DataSetupTime = 8;                 //数据保存时间为6ns*9个HCLK=54ns
    ) l4 Y) Q# P' d- o  P5 {# y
  76.   writeTiming.FSMC_BusTurnAroundDuration = 0x00;
    : h: A+ n+ V, G3 W* F7 r8 n
  77.   writeTiming.FSMC_CLKDivision = 0x00;
    : v+ k/ }# I" ~6 ?
  78.   writeTiming.FSMC_DataLatency = 0x00;
    3 S: o% \+ f9 U. }
  79.   writeTiming.FSMC_AccessMode = FSMC_AccessMode_A;         //模式A + A' L* l+ k, \- x" h

  80. . Y2 q; Y% p/ q
  81. , b) A+ s, K; X8 ]$ E$ R5 T
  82.   FSMC_NORSRAMInitStructure.FSMC_Bank = FSMC_Bank1_NORSRAM1;//  - \( ?0 H. [" O8 |
  83.   FSMC_NORSRAMInitStructure.FSMC_DataAddressMux = FSMC_DataAddressMux_Disable; // 不复用数据地址
    # x' ?; b0 H4 B1 t
  84.   FSMC_NORSRAMInitStructure.FSMC_MemoryType =FSMC_MemoryType_SRAM;// FSMC_MemoryType_SRAM;  //SRAM
    4 Z3 I$ l) O6 F* v5 D7 B
  85.   FSMC_NORSRAMInitStructure.FSMC_MemoryDataWidth = FSMC_MemoryDataWidth_16b;//存储器数据宽度为16bit
    9 x) _& r& {1 M/ D
  86.   FSMC_NORSRAMInitStructure.FSMC_BurstAccessMode =FSMC_BurstAccessMode_Disable;// FSMC_BurstAccessMode_Disable; 6 ~) q4 T( N2 P
  87.   FSMC_NORSRAMInitStructure.FSMC_WaitSignalPolarity = FSMC_WaitSignalPolarity_Low;
      U' x0 u5 _; }, M) B6 S
  88.         FSMC_NORSRAMInitStructure.FSMC_AsynchronousWait=FSMC_AsynchronousWait_Disable;
    - A- m) S2 ]; ~2 G+ s
  89.   FSMC_NORSRAMInitStructure.FSMC_WrapMode = FSMC_WrapMode_Disable;
    + C0 ?$ F' M5 D
  90.   FSMC_NORSRAMInitStructure.FSMC_WaitSignalActive = FSMC_WaitSignalActive_BeforeWaitState;  1 n! u- T5 V. v9 V
  91.   FSMC_NORSRAMInitStructure.FSMC_WriteOperation = FSMC_WriteOperation_Enable;        //  存储器写使能
    " z# X+ u7 T- _* y: r! a/ q( @
  92.   FSMC_NORSRAMInitStructure.FSMC_WaitSignal = FSMC_WaitSignal_Disable;   4 S  Q1 ^3 h) m' g" G3 c2 X& m
  93.   FSMC_NORSRAMInitStructure.FSMC_ExtendedMode = FSMC_ExtendedMode_Enable; // 读写使用不同的时序
      o4 J& J1 T& j0 ^3 i" v9 L
  94.   FSMC_NORSRAMInitStructure.FSMC_WriteBurst = FSMC_WriteBurst_Disable;
    3 Y! M3 X8 S* ]- K1 Z$ f1 ]# R
  95.   FSMC_NORSRAMInitStructure.FSMC_ReadWriteTimingStruct = &readWriteTiming; //读写时序
    - Z! C4 R' S* \; ~
  96.   FSMC_NORSRAMInitStructure.FSMC_WriteTimingStruct = &writeTiming;  //写时序3 m- I2 }( \! m8 Y
  97. 0 ?, E! ^% _/ ^2 I" k
  98.   FSMC_NORSRAMInit(&FSMC_NORSRAMInitStructure);  //初始化FSMC配置
    1 i; l: a7 i. H0 ?- q

  99. 6 h" `* C( W2 \8 K3 e$ N4 B0 I
  100.   FSMC_NORSRAMCmd(FSMC_Bank1_NORSRAM1, ENABLE);  // 使能BANK1 4 r4 n4 L) z/ p  m8 Q
  101.
      q( m0 [3 p3 e5 b! \4 Y( ~$ R
  102.          delay_ms(50); // delay 50 ms , l* @0 i: j8 V5 K. b8 L; ~0 C

  103. " K& u5 x$ B, t* J) t
  104.         LCD_LED = 1;                                        //点亮背光
    3 \2 N+ H  }9 k5 n1 G. b! v  z1 D
  105.
    % L% `1 w( O: {" i7 e* ?4 ]4 a

  106. 1 D/ k* Z5 ?2 B6 d; g
  107. } 8 ^5 x$ t! `% H* a4 {

  108. - [2 d2 u1 n& F  g
  109. /****************************************************************************- v3 c* @1 c+ b& C' P/ m0 P2 N+ @
  110. * 名    称：void wr_cmd(u16 data)$ i* d+ ^% i6 x8 k( Y: }
  111. * 功    能：向写命令$ G; N, K* l! \( U
  112. * 入口参数：data 命令参数' f; F  |* v* T3 S$ y! |: C
  113. * 出口参数：无
    6 L4 j, Q8 O, i
  114. * 说    明：
    $ H8 r& ~7 V% g
  115. * 调用方法：wr_cmd(0x002A);) U) ]+ _. n6 V% J3 N# n
  116. ****************************************************************************/3 l1 M/ |8 S' m+ \9 A9 Q2 \  H$ A
  117. ' {) M3 u4 X+ o
  118. __inline void wr_cmd(u16 data) {
    2 a9 n) Z4 ^4 F, m& G# I
  119.   ! y. Y3 F% ?0 W: n$ D/ o
  120.   Bank1_LCD_R = data;
    9 N) D, n$ P3 R- H/ d
  121. }
    # S& Q8 C+ k3 ^2 L: e5 H, f

  122. 7 U. E/ J8 [+ H3 g
  123. /****************************************************************************
    % Z1 m4 m4 z7 F3 Z0 Y! c  F
  124. * 名    称：void wr_dat(u16 data)9 Q  ?$ @8 @2 D# \; H' y
