第8章 μCOS-III系统移植过程详解

本期教程主要教大家如何移植μCOS-III系统，μCOS-III的移植并不难，因为官方已经帮我们把移植代码写好了，我们要做的只是将工程建立起来，编译、链接、运行。如果有什么错误参考官方已经建立好的代码即可。下面就跟大家详细的讲解一下移植过程。

8.1 源代码下载

8.2 源代码移植-MDK

8.3 源代码移植-IAR

8.4 总结

8.1 源代码下载

移植前要从官网下载相关的源代码，一般官方会为IC厂商新推出的评估板配套相应的移植工程，比如去年（2013年）ST公司推出的STM32F429 探索套件。推出后不久Micrium公司就为其配套了自己的μCOS-III工程文件。其实不光Micrium会为其移植相应的工程，其它的RTOS厂商也会移植的，比如SEGGER公司为STM32F429探索套件移植的embOS工程文件。还有一点要和大家说的是，这些RTOS厂商倾向于使用IAR开发环境。为什么使用IAR开发环境？主要是因为IAR中集成了多款RTOS的调试组件。如下图所示：

考虑到初学μCOS-III的同学中使用MDK的比较多，而且μCOS-III有相关的调试工具μC/Probe，功能也比较的强大。我们今后的教程以使用MDK为主，IAR相关的知识也会跟大家讲解。

下面开始说一下如何从官网下载μCOS-III源码代码以及为STM32配套好的工程代码。先说如何下载源代码：

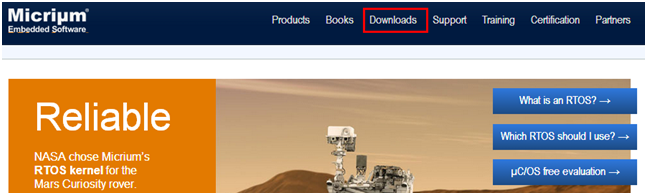

l 打开Micrium的官方网站：www.micrium.com，并点击下面的图标：

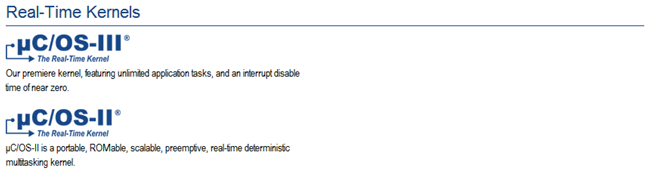

l 进入分版块以后，在最上面会有Download的链接：

点击进入后，在网页的最下面可以看到源代码的下载地址：

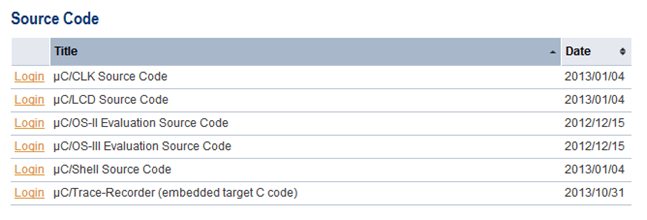

大家可能已经注意到了左侧是Login，这个的意思是大家需要注册一个账号才可以下载，注册很简单，点击Login弹出下面的界面注册就行。

注册并登陆后上面的截图就会变成下面这样：

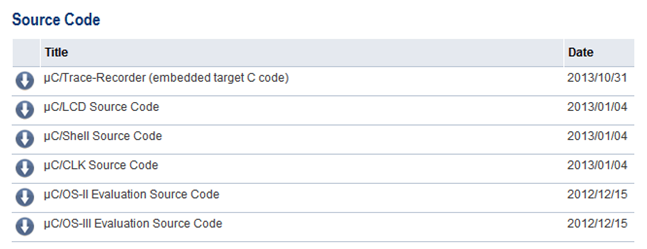

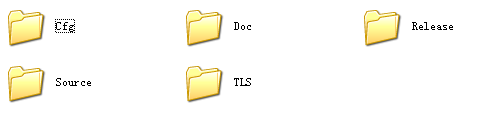

这种情况下就可以下载源码了，咱们要下载的是最下面的那个，不过日期有点早，是2012年的了。将这个源码下载下来解压后会看到里面的文件如下（路径：\Micrium\Software\uCOS-III）：

这里咱们重点看一下Release文件，这个文件比较的重要，主要记录着μCOS-III的更新内容。内容如下（建议初学的同学把下面的内容读完，脑子里有个印象）：

--------------------------------------------------------------------------------------------------------

Release V3.03.00 (2012/02/14):

--------------------------------------------------------------------------------------------------------

1) Added Thread Local Storage(TLS) support

See chapter 20 of the User'sManual

2) Computation of CPU usage hasnow a resolution of 1/100th of a percent

3) Added OSTaskRegGetID() toassign task register IDs dynamically

4) Now able to Suspend and Resumetasks from ISRs

5) Added option'OS_OPT_TASK_NO_TLS' to OSTaskCreate() to specify that a task will not requireTLS

6) Added and changed some errorcodes

7) Removed OSMsgPoolExtend() sinceit was not documented and not used.

8) Added globalOSStatTaskCPUUsageMax to keep track of peak CPU usage.

This value is reset byOSStatReset()

9) Added per task .CPUUsageMaxwhich tracks the peak CPU usage of each task.

--------------------------------------------------------------------------------------------------------

Release V3.02.00 (2011/08/01):

--------------------------------------------------------------------------------------------------------

1) Corrected pointer to integercast in OSMemCreate.

2) Corrected invalid typecast onconstant initialization on os_cfg_app.c.

3) Added a "return"statement after each invocation of the OS_SAFETY_CRITICAL_EXCEPTION() macro.

4) Fixed OS_TmrLink() while addingTmr object into middle of spoke linked-list.

5) Corrected OS_TmrResetPeak()reset maximum number of entries (NbrEntriesMax).

6) Added note to clarify use ofOS_OPT_LINK_DLY option on OS_TmrLink() at OSTmrStart().

7) Adjusted order of operation onTick Wheel during insert (OS_TickListInsert) to first set link pointers

on new object, then add it tothe linked-list.

8) Corrected OS_OPT_POST_NO_SCHEDoption for OSFlagPost and OSFlagPendAbort.

9) Initialize Interrupt QueueHandler Task before any other task to prevent usage of OSIntQNbrEntries

uninitialized.

10) Corrected use of disabledvariable 'OSCfg_ISRStk'.

11) Changed default OS_CYCLES to32-bits.

12) Corrected per task CPU usagestatistics computation.

13) Adjusted version to new formatVx.yy.zz.

14) Removed OS_TMR_TICK datatype;converted OSTmrTickCtr to OS_TICK to be consistent with other OS_TMR

structure fields.

15) Prevent OSSchedLock/Unlock() tobe called from ISR.

16) Re-arranged order of datastructure members on OS_TCB to keep non-optional items at the beginning of

the structure.

17) Changed error codes to enum.

18) Converted OS object types touse CPU_TYPE_CREATE.

19) Reworked check to not allow tocreate multiple tasks at idle task priority.

20) Corrected alignment check onOSMemCreate() to handle cases where sizeof(void *) == 1.

21) Added changes to priorityhandling to allow word addressable architectures.

22) Adjusted copyright in fileheaders for source available distribution.

--------------------------------------------------------------------------------------------------------

赞收藏评论15 发布时间：2014-12-20 17:37

15个回答

baiyongbin2009 回答时间：2014-12-20 17:37:46

本帖最后由 baiyongbin2009 于 2014-12-20 18:12 编辑

（续）8.1 源代码下载

Release V3.01.2 (2010/05/14):

--------------------------------------------------------------------------------------------------------

1) Added error checking for time stamp configuration #defines.

2) Removal of some MISRA C 2004 errors.

3) Corrected OS_MEM structure definition for field FreeListPtr.

4) Moved OSInitHook() to beginning of OSInit() to be consistent with documentation section about

differences between uC/OS-II and uC/OS-III port functions.

5) Removed duplicate call to OS_TickListRemove() in OS_TickListUpdate().

6) Corrected OS_TmrLink() where number of entries in spoke was incremented twice for a particular

case, and timer previous pointer was alwyas being cleared before exit the function.

7) Corrected OSTaskChangePrio() to update task priority if task is pending on Task Queue, Task Sem,

or Flag.

8) Corrected OSTaskDel() TCB clean up where it could potentially be skipped if context switch happened

before OSSched().

9) Corrected sections of code conditional on OS_CFG_Q_EN & OS_CFG_TASK_Q_EN.

10) Corrected DbgListRemove procedures where it did not clear the DbgPrevPtr of the first object when

the head of the list was removed.

11) Removed sections where TimeQuantaCtr was incorrectly reset.

12) Corrected NULL pointer de-reference on OSMutexDel() with OS_OPT_DEL_ALWAYS option when Mutex created

and deleted right away.

13) Added OSStatResetFlag into OS_StatTask to force reset of the computed statistics.

14) Added OSIntQMaxNbrEntries into computed statistics.

15) Reordered DbgListAdd/Remove to prevent a still linked object from being cleared.

16) Corrected DbgList removal in OSTmrDel().

17) Added critical section in OSMemCreate().

18) Removed access to uninitialized kernel objects (p_obj->Type).

19) Corrected port's OSTaskSwHook where OSSchedLockTimeMaxCur was not always cleared between context switch.

20) Corrected NULL pointer de-reference of p_tcb on OS_SchedRoundRobin(), if no TCB in the ready list.

21) Adjusted check for nesting interrupts on OSSched() by removing conditional compilation based

on OS_CFG_CALLED_FROM_ISR_CHK_EN.

22) Adjusted formatting & function descriptions.

--------------------------------------------------------------------------------------------------------

Release V3.01.1 (2010/01/11):

--------------------------------------------------------------------------------------------------------

1) Added PERIODIC and MATCH modes to OSTimeDlyHMSM().

2) Improved the performance of the scheduler lock time measurement.

3) Added OS_CFG_TS_EN in OS_CFG.H which is used to enable/disable time stamping.

4) OSTaskStkChk() now returns the number of free and used 'ELEMENTS' instead of 'BYTES'.

This is done for consistency.

5) Fixed a bug with OS_PendListRemove1() which removes a task from a wait list.

6) Fixed a bug when pend-aborting a object where a task has multi-pended on the same object

multiple times.

7) Fixed a bug when posting to an event flag group where there are no task(s) pending on the

event flag group.

--------------------------------------------------------------------------------------------------------

Release V3.01.0 (2009/12/07):

--------------------------------------------------------------------------------------------------------

1) The API for OSTaskCreate() changed. The seventh argument changed from:

CPU_STK *p_stk_limit;

CPU_STK_SIZE stk_limit;

This argument now represents the number of CPU_STK elements left before the stack is empty.

This is used when the CPU supports stack limit checking.

2) As shown above, OS_STK_SIZE has been changed to CPU_STK_SIZE and thus, this data type is declared in uC/CPU

instead of uC/OS-III.

3) We removed OS_AppInitHookPtr because it was impossible to initialize this pointer prior to dereferncing it.

OSInit() set the pointer to NULL and didn't allow the user to change its value before using it.

4) Added a new operating mode to OSTimeDly(), i.e. OS_OPT_TIME_PERIODIC

5) Added the function OSSafetyCriticalStart() which, when called will prevent further kernel objects from being created.

In other words, after calling this function, you will no longer be allowed to create tasks, semaphores, mutexes, etc.

In some safety critical systems, it's not allowed to create kernel objects once initialization has completed.

6) Fixed a bug when an object was pend aborted when using OSPendMulti().

7) Fixed a bug when an object was deleted when using OSPendMulti().

8) Replaced:

for (;;)

while (DEF_ON)

for tasks to represent that the loop runs while power is applied.

9) Fixed a bug in OSPendMulti().

The scheduler was locked during a critical region that should have been protected by disabling/enabling interrupts.

10) The timestamp is now read when a task is created to determine when the task starts.

This is used to compute the per task CPU usage.

11) Statistics are reset after determining CPU usage capacity.

12) Changed the copyright notice.

其余的四个文件，大家打开看一下就行，下面还会继续的介绍。关于源代码的下载就说这多，下面说一下如何下载建立好的工程文件：

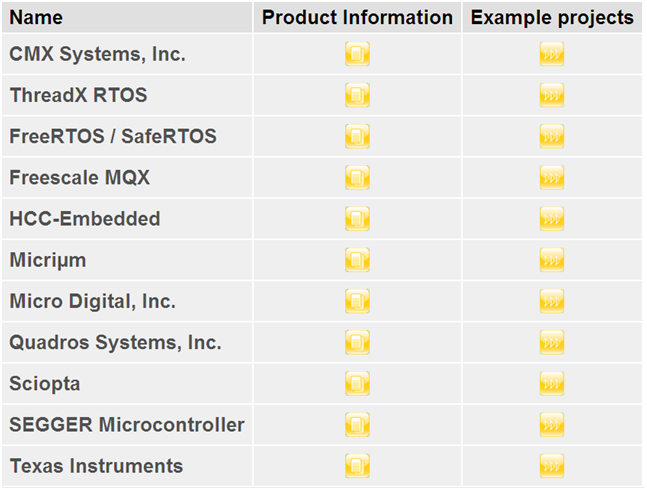

l 打开官网进入主界面以后看到下面的Download标记后，点击进入

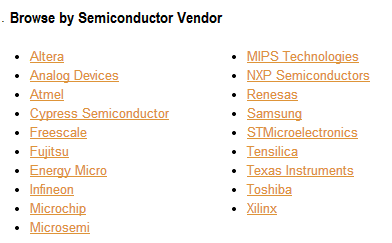

进入后看到各IC厂商的地址链接：

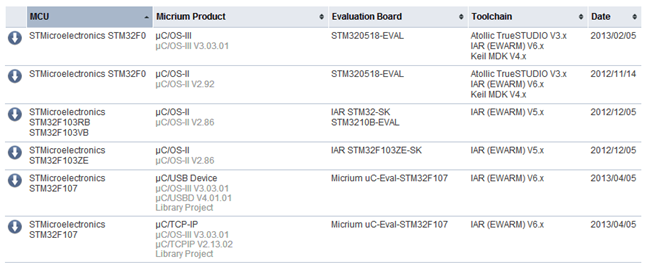

我们点击进入意法半导体的链接，可以看到很多已经建立好的工程模板（这里只贴了部分工程）：

咱们要下载的是下面的这个工程：

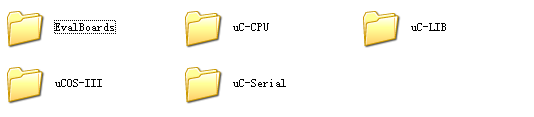

下载好以后，打开此路径：\Micrium\Software，内容如下：

这几个文件就是咱们移植要用到的，本期教程移植代码是使用的这个里面的文件，而没有使用上面下载的源码，主要是因为现在的源码和uC-CPU，uC-LIB有一定的关联性，咱们主要移植的也是uC-OSIII，uC-CPU，uC-LIB这三个文件。

赞评论

baiyongbin2009 回答时间：2014-12-20 17:50:21

本帖最后由 baiyongbin2009 于 2014-12-20 17:51 编辑

8.2 源代码移植-MDK

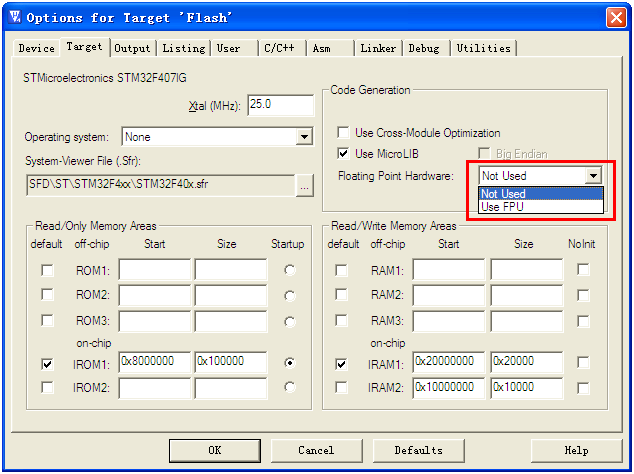

下面开始讲解源代码的移植，这里咱们不一步一步的建立工程了，显得太罗嗦。咱们直接在一个现成的MDK和IAR工程上面建立。工程就使用V5开发板基础篇中的例子：V5-001a_GPIO实验_跑马灯。MDK使用4.54版本，其它高版本的也可以，不过要注意这个问题：http://bbs.armfly.com/read.php?tid=2567

8.2.1 建立工程

现在开始移植讲解：

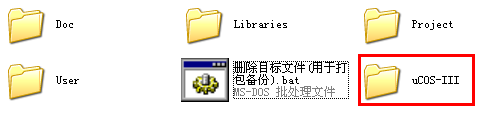

l 第一步：在跑马灯工程里面建立文件夹uCOS-III。

并将下面四个文件复制到uCOS-III文件夹里面：

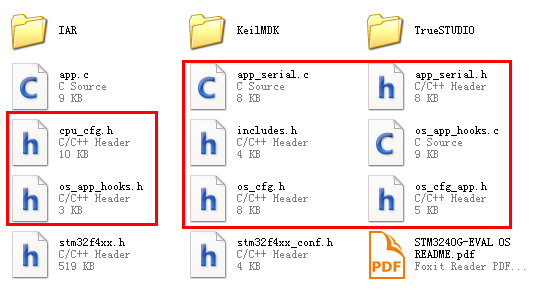

l 第二步：把官方工程此路径下Micrium\Software\EvalBoards\ST\STM3240G-EVAL\uCOS-III的8个文件

以及此路径下Micrium\Software\EvalBoards\ST\STM3240G-EVAL\uCOS-III\KeilMDK的两个文件

复制到跑马灯工程里面的此路径下：V5-001a_GPIO实验_跑马灯\User。

工程中需要的文件已经都复制到工程中了，下一步就是将这些文件添加到工程里面，并添加头文件路径。

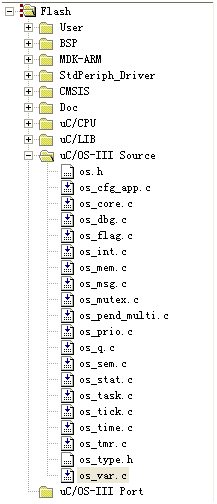

l 第三步：在工程的左侧再建立四个组用于添加相应文件。

Ø uC/CPU中添加如下6个文件，这6个文件位于路径：V5-001a_GPIO实验_跑马灯\uCOS-III\uC-LIB和路径V5-001a_GPIO实验_跑马灯\uCOS-III\uC-LIB\Ports\ARM-Cortex-M4\RealView下面

Ø uC/Lib中添加如下10个文件，这10个文件位于路径V5-001a_GPIO实验_跑马灯\uCOS-III\uC-CPU和路径V5-001a_GPIO实验_跑马灯\uCOS-III\uC-CPU\ARM-Cortex-M4\RealView 下面

Ø uC/OS-III Source中添加如下20个文件，这20个文件位于路径：V5-001a_GPIO实验_跑马灯\uCOS-III\uCOS-III\Source 下面

Ø uC/OS-III Port中添加如下3个文件，这3个文件位于路径：V5-001a_GPIO实验_跑马灯\uCOS-III\uCOS-III\Ports\ARM-Cortex-M4\Generic\RealView 下面

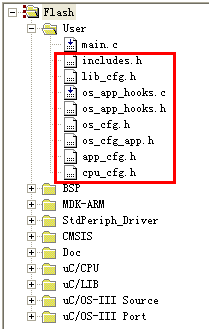

Ø User中添加如下8个文件，这8个文件位于路径：V5-001a_GPIO实验_跑马灯\User 下面

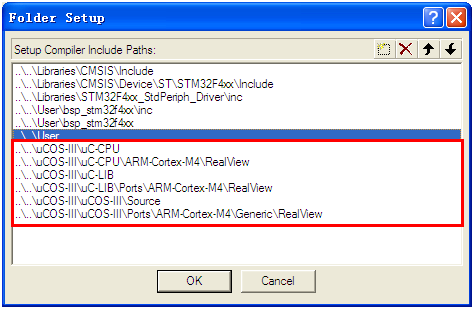

上面这些文件添加完以后，一个完整的工程就算建立了，下面需要添加一下头文件的路径：

赞评论

baiyongbin2009 回答时间：2014-12-20 17:54:19

本帖最后由 baiyongbin2009 于 2014-12-20 18:03 编辑

8.2.2 文件修改

上面的工程建立好以后，修改部分文件后就可以下载到V5开发板运行了，需要修改的主要有以下几个文件：

l main.c文件，用下面的内容覆盖原有内容，这里主要是建立4个LED闪烁的任务。
