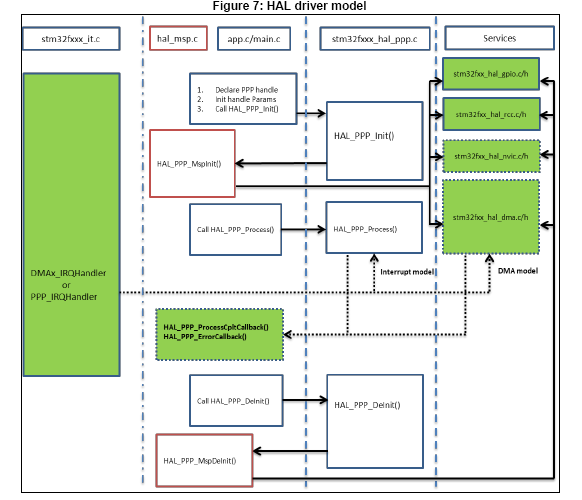

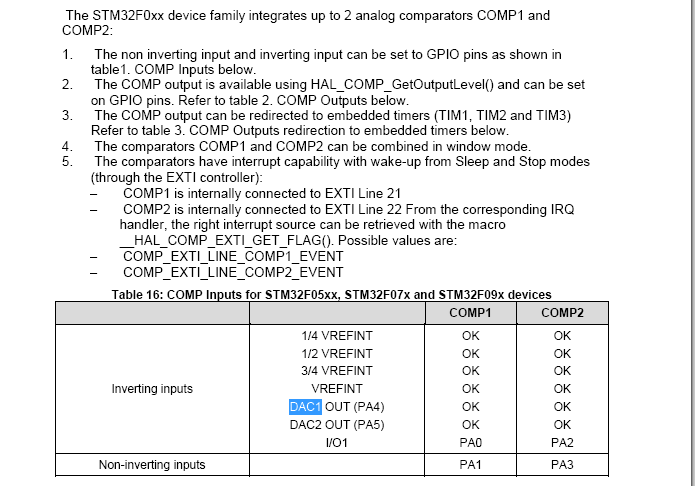

先是HAL大致驱动模块部件 QQæªå¾20150214185825.png

MAIN函数运行流程
{
HAL_Init();
SystemClock_Config();

  /* Configures User push-button */
  BSP_PB_Init(BUTTON_USER, BUTTON_MODE_EXTI);

  /*##-1- Configure the DAC peripheral #######################################*/
  DacHandle.Instance = DACx;

  /*##-2- Configure the TIM peripheral #######################################*/
  TIM6_Config();

  /* Infinite loop */
  while (1)
  {
/* If the Key is pressed */
if (ubKeyPressed != RESET)
{
   HAL_DAC_DeInit(&DacHandle);

   /* select waves forms according to the User push-button status */
   if (ubSelectedWavesForm == 1)
   {接下来就是三角波产生的函数，
      /* The triangle wave has been selected */

      /* Triangle Wave generator -------------------------------------------*/
      DAC_Ch1_TriangleConfig();
   }产生三角波
   else
   {产生阶梯波形
      /* The escalator wave has been selected */

      /* Escalator Wave generator -------------------------------------------*/
      DAC_Ch1_EscalatorConfig();
   }

   ubKeyPressed = RESET;
}
  }
}

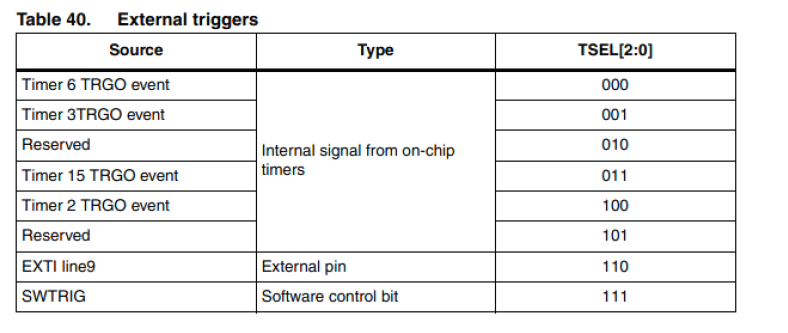

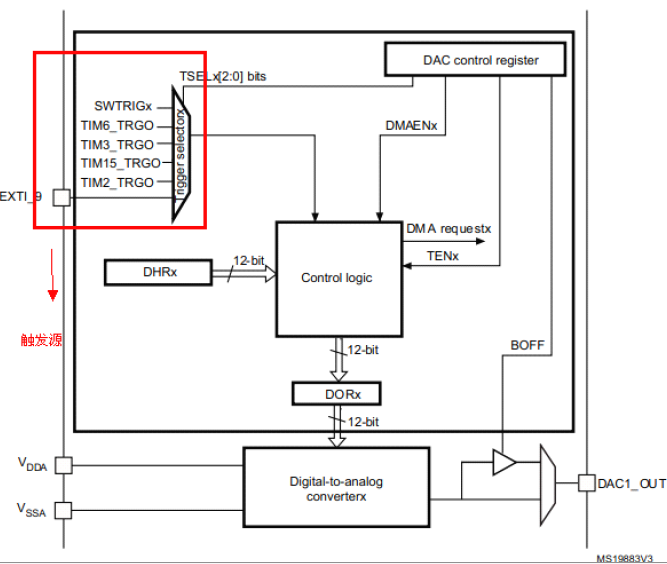

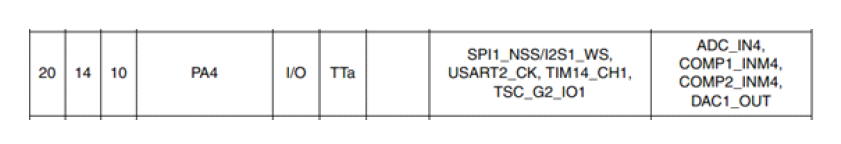

首先说说STM32的DAC模块配置过程。
