AutoRetransmission 设置为enable 可以防止通讯速度过快时丢包
" n" G( X8 W* X& r1 }

下图所示的TxBuffersNbr 和 TxFifoQueueElmtsNbr 貌似是共享32个地址的，两者加起来不能超过32

6 e+ q+ M: i# A$ W, y( V$ f
+ z# H- j) G+ f3 o8 y& d) s
5 Y* q3 C0 K8 g1 P& S) v' ?, u1.设置硬件参数(引脚，时钟)
* s' [: j. _# A4 f8 j; G+ E1.1 启用FDCAN1，并设置参数
) Z! m) _8 W2 ]+ Z( K/ ]4 D8 @- k4 l' g启用FDCAN后参数设置如下:

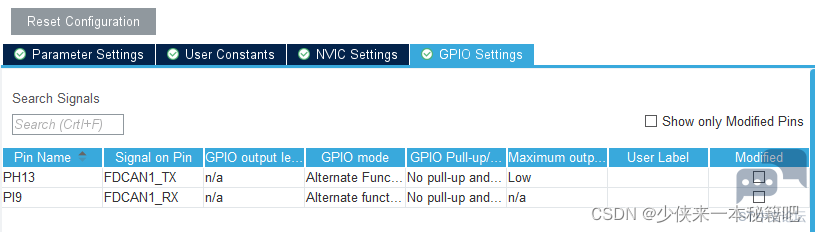

设置FDCAN引脚，手头板子tx rx分别为PH13 PI9


+ D+ y1 R( S5 j, D. }

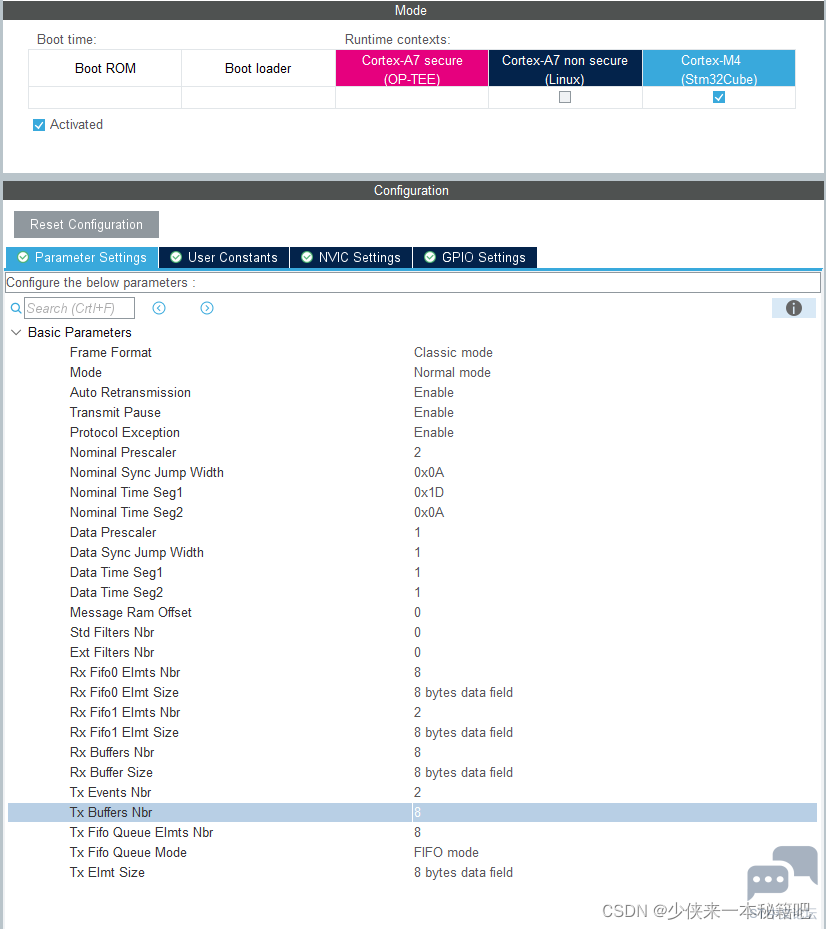

  z  S' e" Q5 E1 W; b# B设置参数

- L& D1 y8 H2 s8 ?& Q
# w) B0 E8 ^' n7 C- b" G
! q9 a4 h' P8 N' `) u' \其中elmets Size因为采用classicmode 所以选用8bytes，注意 buffers nbr MP157rx和tx最多有32个buffer，offset貌似不设置也没事

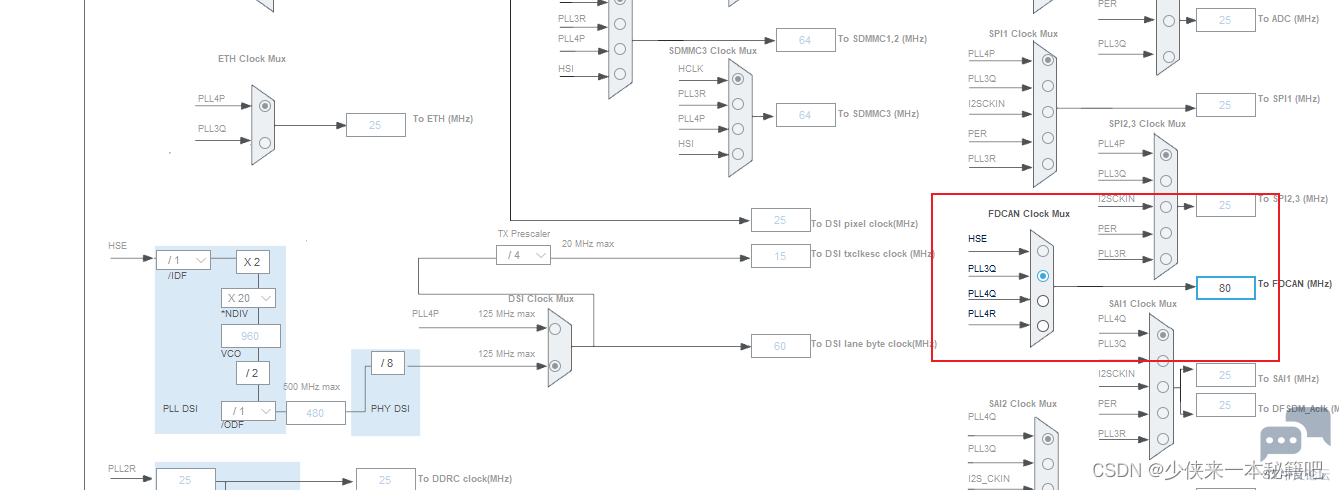

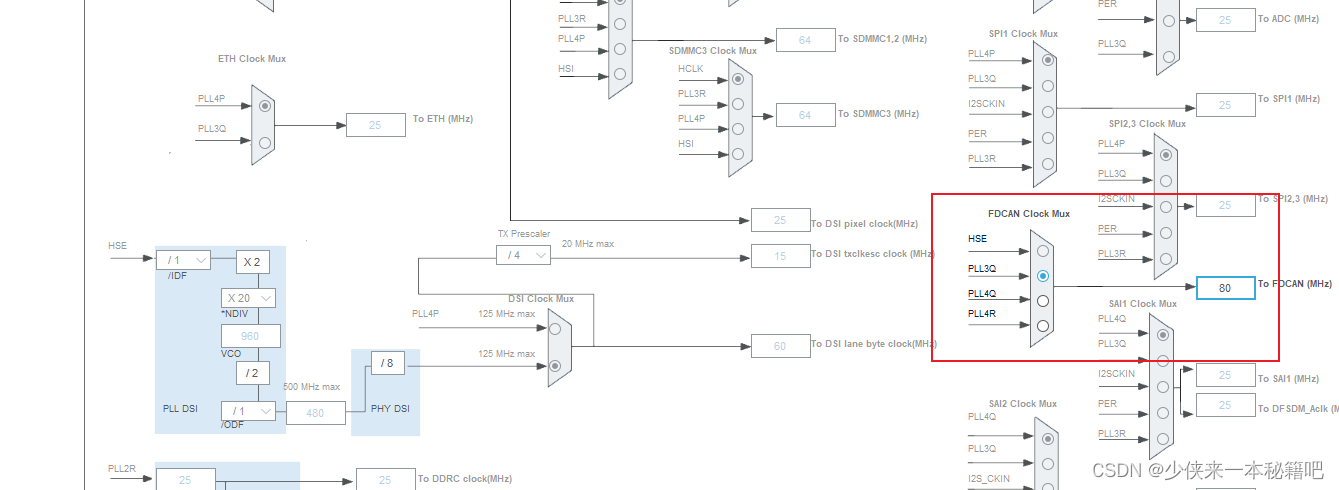

2 N& |4 ~8 |7 X8 B0 R" b时钟设置


$ p, `: {1 k) a; [' E2 H3 G0 |; n5 u9 ?
1.2启用FDCAN
/ o6 W! e- m4 j2 v0 f. ?2 Q首先可以设置过滤器，随后启动FDCAN
5 E- U6 J9 A! j0 `) r' r* ]

1. /*##-1 Configure the FDCAN filters ########################################*/
   ( f; O* @0 b* U. j& w5 r
2.   /* Configure standard ID reception filter to Rx FIFO 0 */
   2 V; N0 D7 L+ f0 A5 G6 Y4 D
3.   sFilterConfig.IdType = FDCAN_STANDARD_ID;

4.   sFilterConfig.FilterIndex = 0;

5.   sFilterConfig.FilterType = FDCAN_FILTER_MASK;
   1 S9 |! S9 @1 p& L
6.   sFilterConfig.FilterConfig = FDCAN_FILTER_TO_RXFIFO0;

7.   sFilterConfig.FilterID1 = 0x444;

8.   sFilterConfig.FilterID2 = 0x555;
   8 j- z2 X: t: @- l9 u' `6 P  F
9.   if (HAL_FDCAN_ConfigFilter(&hfdcan1, &sFilterConfig) != HAL_OK)
   0 f9 J% a. X1 C0 q$ j* ^
10.   {

11.     Error_Handler();
    3 h3 P" g; A! W
12.   }
    8 v2 }; K! U  J: R$ b
13.

14.   /* Configure extended ID reception filter to Rx FIFO 1 */
    3 E5 p- T& t8 i2 v
15.   sFilterConfig.IdType = FDCAN_EXTENDED_ID;

16.   sFilterConfig.FilterIndex = 0;

17.   sFilterConfig.FilterType = FDCAN_FILTER_MASK;
    4 c: i" `# M) I; x1 S2 t+ G( S
18.   sFilterConfig.FilterConfig = FDCAN_FILTER_TO_RXFIFO1;

19.   sFilterConfig.FilterID1 = 0x1111111;

20.   sFilterConfig.FilterID2 = 0x2222222;

21.   if (HAL_FDCAN_ConfigFilter(&hfdcan1, &sFilterConfig) != HAL_OK)

22.   {

23.     Error_Handler();

24.   }

25.
    . \1 a* i- Q. _
26.   /*##-2 Start FDCAN controller (continuous listening CAN bus) ##############*/

27.   if (HAL_FDCAN_Start(&hfdcan1) != HAL_OK)

28.   {

29.     Error_Handler();
    . F9 T& Y- f/ w8 f$ x# [0 w3 v
30.   }
      j( M* A+ k1 @! y. ]
31.   /* USER CODE END 2 */

复制代码

发送数据

' Q2 `. J6 E7 \3 k8 m

1.   /*##-3 Transmit messages ##################################################*/

2.   /* Add message to Tx FIFO */

3.   TxHeader.Identifier = 0x444;
   5 E- ^# i3 D4 v' k
4.   TxHeader.IdType = FDCAN_STANDARD_ID;

5.   TxHeader.TxFrameType = FDCAN_DATA_FRAME;

6.   TxHeader.DataLength = FDCAN_DLC_BYTES_8;

7.   TxHeader.ErrorStateIndicator = FDCAN_ESI_ACTIVE;
     \: T1 f9 S' K# w
8.   TxHeader.BitRateSwitch = FDCAN_BRS_ON;
   & C5 }4 i% T, [7 F
9.   TxHeader.FDFormat = FDCAN_FD_CAN;
   / L: U8 Y; q2 f
10.   TxHeader.TxEventFifoControl = FDCAN_STORE_TX_EVENTS;
    , `1 X7 M3 q! l
11.   TxHeader.MessageMarker = 0x52;

12.   if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan1, &TxHeader, TxData0) != HAL_OK)
    * A- G' q$ X6 h0 ~$ S7 Q3 `3 r5 U+ |6 a6 V
13.   {
    9 p* c  c9 w! l( Q
14.     Error_Handler();
    : X* F2 n6 g0 x$ j* K* U4 h  E
15.   }

复制代码

3 h3 D* {; }, V' |8 M' N等待发送完成

# ^/ Q+ J0 ^$ ]% W& K+ I. t$ ?3 s) k

1.   /* Check transmission occurred before timeout */

2.   while(HAL_FDCAN_IsTxBufferMessagePending(&hfdcan1, FDCAN_TX_BUFFER0 | FDCAN_TX_BUFFER1 | FDCAN_TX_BUFFER2) != 0)

3.   {

4.     if((HAL_GetTick() - Tickstart) > TX_FAST_TIMEOUT)
   8 V2 Y+ O" P6 ]# J0 m& G" I
5.     {
   ) B: o8 ]  u4 _; o: _
6.       Error_Handler();
   . q+ C  r4 k4 j5 s: W5 j  [  W
7.       break;
   2 Q  I: l% {% L1 b8 T
8.     }

9.   }

复制代码

查询接收到的can数据
9 ~& X% y( X( Q/ g3 s, ^4 ?

1.   while(HAL_FDCAN_GetRxFifoFillLevel(&hfdcan1, FDCAN_RX_FIFO0) != 1)

2.   {
   * E( j  s8 P9 \* n: ]
3.     if((HAL_GetTick() - Tickstart) > RX_FAST_TIMEOUT)
   6 Q4 ]0 I' R# \) U/ F5 d. L* o: p
4.     {
   ! z; c& U) G1 }3 w4 x, a
5.       Error_Handler();

6.       break;
   . o1 D8 L2 S3 Q  y3 {
7.     }
   $ R& N; ~# w# d# I+ T- w! l6 @5 S
8.   }

复制代码

获取数据

1.   if (HAL_FDCAN_GetRxMessage(&hfdcan1, FDCAN_RX_FIFO0, &RxHeader, RxData) != HAL_OK)
   " |$ W/ d! `. [1 f' Q
2.   {
     ~4 S- H" I7 K" \# Q
3.     Error_Handler();
   - }8 w" _" C* t
4.   }

复制代码

————————————————
