B-U585I-IOT02A开发板测试之PKA加密机制测试

[复制链接]

胤幻1988 发布时间：2021-10-23 17:32

文章
文章封面:
文章简介:	STM32U585主打了数据安全，当然也提供了多种方式。我们这里用B-U585I-IOT02A开发板测试 PKA加密~

STM32U585主打了数据安全，当然也提供了多种方式。我们这里用B-U585I-IOT02A开发板测试 PKA加密~也就是大家经常在计算机领域听到的公钥加密法~
我们先来看看一些导图：
应用场景：

完全硬件自发，无需CPU干预：

使用流程：

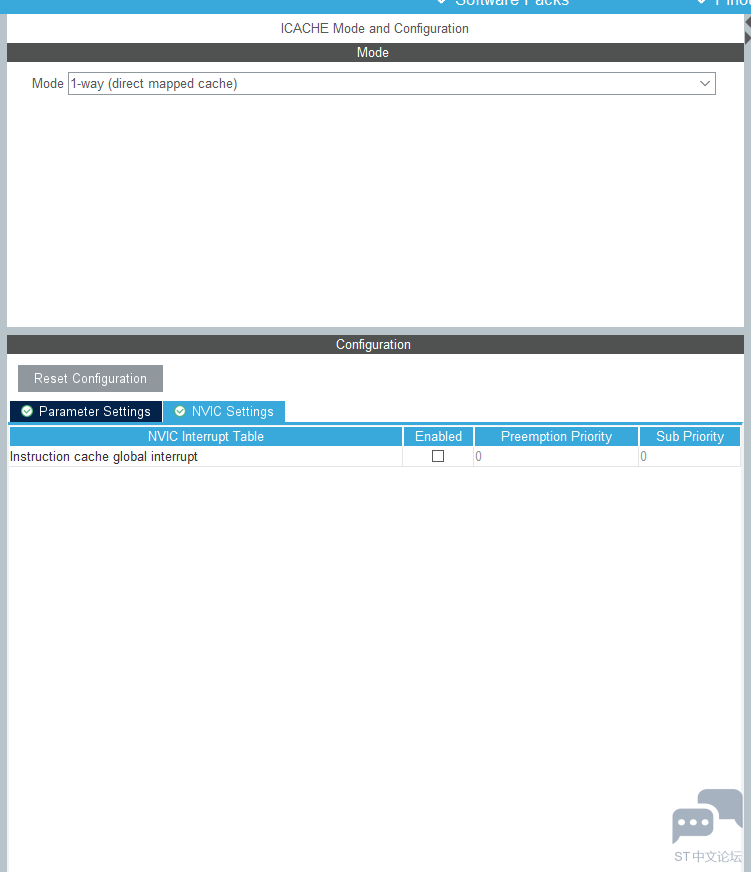

好，由于全在MCU内部，这了也没有什么原理图，我们直接开始CUBEMC的配置：

自动生成代码，我们添加我们的私钥及公钥对，对其进行测试：

PKA_HandleTypeDef hpka;" r% h0 Y0 k q) n
" J2 a. X; z: b- i' H8 `
RNG_HandleTypeDef hrng;0 l8 Z+ [8 r' \
* w8 a$ G# j7 @
/* USER CODE BEGIN PV */) l, Q( A# W7 [ H
PKA_ModExpProtectModeInTypeDef in = {0};$ C' q2 M( n: \% q3 m k
% M% N a* U% N/ R- S
/* Input vectors */
/ y9 ?$ m& l) u2 H0 j. X. `
uint32_t input1_OpSize = 32;
" E+ @/ W2 k1 A: q
uint32_t input1_ExpSize = 32;
. {" k4 k1 N' T
uint8_t input1_1[32] = {0xE4, 0x88, 0xD8, 0x11, 0x76, 0xE5, 0x06, 0xFA, 0xB7, 0xC2, 0xFC, 0x5D, 0xF3, 0xCB, 0x75, 0x55, 0x34, 0x3F, 0x45, 0xB4, 0x78, 0x52, 0xBA, 0x7E, 0xFB, 0xF5, 0xB1, 0x2A, 0xF4, 0x0B, 0xF4, 0xB3};
1 o! Y( v4 B) o8 i8 u6 I
uint8_t input1_2[32] = {0x12, 0x28, 0x49, 0x3A, 0x81, 0xFE, 0xCA, 0x62, 0x2B, 0x2D, 0x83, 0xCD, 0x97, 0x2C, 0x28, 0x23, 0x39, 0x76, 0xF1, 0xF3, 0x71, 0xCE, 0x16, 0x84, 0xA0, 0x37, 0x98, 0xE0, 0xC7, 0x0B, 0xF4, 0x39};$ g+ x' @ z7 G# u7 [8 x2 Y, o& c
uint8_t input1_3[32] = {0x45, 0xAB, 0x14, 0x95, 0x48, 0x22, 0x69, 0xC4, 0x8F, 0x1E, 0xCA, 0x23, 0x0C, 0x1F, 0x5A, 0xB4, 0xBC, 0xE7, 0x12, 0xD8, 0x50, 0x09, 0x54, 0xBB, 0xE2, 0x1D, 0x2A, 0x39, 0x86, 0x3E, 0xDB, 0xFB};7 S* n7 c/ a1 M2 t! U
uint8_t input1_4[32] = {0xE4, 0x88, 0xD8, 0x11, 0x76, 0xE5, 0x06, 0xFA, 0xB7, 0xC2, 0xFC, 0x5D, 0xF3, 0xCB, 0x75, 0x53, 0x50, 0x7D, 0xA2, 0xCD, 0x98, 0x24, 0x33, 0x76, 0x14, 0x8F, 0xCF, 0xA3, 0xF5, 0xCF, 0x4A, 0x88};5 c& V" N5 m& m
uint8_t output1[32] = {0xD1, 0x2F, 0x36, 0x6C, 0x61, 0xB5, 0x66, 0x48, 0x61, 0x17, 0x8A, 0x1E, 0x6B, 0xD0, 0xE7, 0xBF, 0x66, 0x0A, 0x2B, 0x07, 0x9D, 0x4D, 0x82, 0x68, 0x7E, 0xB1, 0x9D, 0x29, 0x94, 0x43, 0x6D, 0x39}; s- c* `1 N- `; }1 r" Y
1 u |7 t- C& l# e
uint8_t buffer[32];
1 e7 `# D% g6 @# F( M F5 n% f
# } M* {8 N* ~4 f" U
__IO uint32_t hal_EndOfProcess = 0;* A- h x- \5 C' ?* e6 X
__IO uint32_t hal_ErrorCallback = 0;

复制代码

计算结果与预制值得比较函数：

static uint16_t Buffercmp(uint8_t* pBuffer1, uint8_t* pBuffer2, uint16_t BufferLength);

复制代码

在main函数里面添加：

/* Initialize all configured peripherals */8 ]0 D! Z7 q! u* l; R
MX_ICACHE_Init();
; d8 |" |0 X% l# b
MX_RNG_Init(); n/ H/ }4 X$ A D h/ q
MX_PKA_Init();2 r8 X* x7 X, T! [
/* USER CODE BEGIN 2 */. z5 @& W# W' B2 T5 U" d
6 ?$ w: k" l- {3 |5 @+ l. d
/* Set input parameters */
; Q) W- i3 U5 Z) ^ m" R
in.OpSize = input1_OpSize;( X+ V" k" T9 A% b8 a/ \7 }
in.expSize = input1_ExpSize;5 ^& _ f s" M- q
in.pMod = input1_1;
+ E9 ?/ a9 }" N# g' }, C: a1 z
in.pExp = input1_2;
( E0 c2 q/ K( w8 T6 z. o/ E
in.pOp1 = input1_3;% U: L( X- k4 P+ i
in.pPhi = input1_4;
- ^+ ?, M# i/ c4 ^. h+ e6 N) `! p- W
% f @) N0 e8 G" |
/* Start PKA protected Modular exponentiation operation */; s+ e {6 i! \) X
if (HAL_PKA_ModExpProtectMode_IT(&hpka, &in) != HAL_OK)
& D Y5 `3 x7 ?; j/ \9 a, C
{
: X' H5 S( d, D5 M
/* HAL PKA Operation error */; p2 p0 S) w. c! _7 N! Q; k
Error_Handler();
" V$ \1 y( [( d2 W
}5 s8 Q# L0 a& }9 B0 H* Z# K3 v" _
7 M* {7 m- @2 m( ^2 G4 I
/* Wait until operation finish */
* S$ O9 o6 r% o" M$ e7 d2 u
while (!hal_EndOfProcess);
6 J4 L ^. }# A/ g
hal_EndOfProcess = 0;
0 e, Y# ^, h5 [( @8 I0 `, x
( S' m# v" W8 o3 q2 _ V$ P
/* Retrieve computation result */ v# h( E# n0 J8 R5 f
HAL_PKA_ModExp_GetResult(&hpka, buffer);3 |2 [* M( t3 Q* s$ S! z
2 }9 \) ~# i i) k/ N v2 z
/* Check retrieved result with expected result */2 T r' k5 B0 s7 V/ ~$ I2 M( L
if ((Buffercmp((uint8_t*)buffer, (uint8_t*)output1, 32) != 0) || (hal_ErrorCallback == 1))5 W5 ^! k' g# X3 s* u" Z( q
{
7 O5 ?5 Q% A& z5 P/ {4 i
/* HAL PKA Operation error */% [& d+ z' K& y. t' u. e$ B
Error_Handler();
* ?0 ~1 [" A7 @+ D6 L0 r& N
}

复制代码

一些回调函数：

/**6 Z6 L! K: U8 R+ y- M
* @brief Process completed callback.3 x, H8 B* X$ }
* @param hpka PKA handle
. E7 n2 D3 c J) r5 O/ e& V
* @retval None* |% Z* `* Z9 @# d
*/. M/ V7 T' w) V2 s5 s. _1 X9 X
void HAL_PKA_OperationCpltCallback(PKA_HandleTypeDef *hpka)
" R* c! C; U/ Y1 ~. }0 u: s3 x
{
) T b( I' P2 E
hal_EndOfProcess = 1;
+ T, ?- q" l/ l
}* v$ i! g+ I- o
4 r6 u9 f. w/ K+ p
/**
+ e: }* n1 X0 s
* @brief Error callback.
! F/ @0 ?" r0 O0 `4 {. s
* @param hpka PKA handle
6 W: U6 q1 z8 H$ v2 Q p# O
* @retval None
+ {/ l: Q; {2 Q9 w$ h
*/+ D+ }9 j" ^# x% [" \5 {
void HAL_PKA_ErrorCallback(PKA_HandleTypeDef *hpka)# i( U* k3 t. Y/ R
{( E+ v) W8 l: F
hal_ErrorCallback = 1;
# o; N- n1 x/ O6 o! P
}6 Q. F6 l* V/ T3 P9 V" U/ }
/ _$ S4 P) M- {- m
/**! x7 d# y- N, ?( |& Z
* @brief Compares two buffers., w6 u: h7 ~! ]2 _1 I m
* @param pBuffer1, pBuffer2: buffers to be compared.
+ |: u" Y' J: ^5 W
* @param BufferLength: buffer's length) j5 h! p8 {4 T; A5 P+ H
* @retval 0 : pBuffer1 identical to pBuffer2
" n2 R y3 s6 S
* >0 : pBuffer1 differs from pBuffer2, Y1 ^3 l& P( ^/ B' k, n V+ s" K
*/7 b3 j- M7 x5 |, F1 y
static uint16_t Buffercmp(uint8_t* pBuffer1, uint8_t* pBuffer2, uint16_t BufferLength)
* y* _; Z) G8 F) W" ^0 V
{8 l8 e: L1 S& i6 @( G; n! y
while (BufferLength--)
9 x: f6 p" D# w- M! ?9 f4 {( k
{
, M) y. O& O" f5 X, _$ S/ |" Y& ~( k8 q
if ((*pBuffer1) != *pBuffer2)4 o/ h: i1 M* G& Z' q5 G
{
& |. p4 z2 f7 E! G
return BufferLength;
1 ?$ e. y; b8 `, a
}
- O0 P& {! `: F1 B) N
pBuffer1++;( t6 R& S% m/ P9 c- I: q0 H
pBuffer2++;
/ c, X( F6 T9 k( @5 z
}. }( L% W* @6 c$ U
; q7 S- s$ x5 N( {% z5 N
return 0;9 S* ~2 x2 F6 G9 ]2 u# T
}
/ @6 K z5 q% L. P, W9 O( s/ M4 {
