有图有真相！

程序如下：
// VGA Output.ino
#define LED_PIN PC13
#define VGA_R PA7
#define VGA_G PA6
#define VGA_B PA5
#define VGA_V PA3
#define VGA_H PA4
#define VGA_R_HIGH (GPIOA_BASE)->BSRR = BIT(7)
#define VGA_R_LOW  (GPIOA_BASE)->BRR  = BIT(7)
#define VGA_G_HIGH (GPIOA_BASE)->BSRR = BIT(6)
#define VGA_G_LOW  (GPIOA_BASE)->BRR  = BIT(6)
#define VGA_B_HIGH (GPIOA_BASE)->BSRR = BIT(5)
#define VGA_B_LOW  (GPIOA_BASE)->BRR  = BIT(5)
#define VGA_V_HIGH (GPIOA_BASE)->BSRR = BIT(3)
#define VGA_V_LOW  (GPIOA_BASE)->BRR  = BIT(3)
#define VGA_H_HIGH (GPIOA_BASE)->BSRR = BIT(4)
#define VGA_H_LOW  (GPIOA_BASE)->BRR  = BIT(4)
#define NOP do { __asm__ __volatile__ ("nop"); } while (0)
void isr_porch(void);
void isr_start(void);
void isr_stop(void);
void isr_update(void);
boolean h_active;
int x, y = 0,z;
void setup() {
pinMode(LED_PIN, OUTPUT);
pinMode(VGA_R, OUTPUT);
pinMode(VGA_G, OUTPUT);
pinMode(VGA_B, OUTPUT);
pinMode(VGA_V, OUTPUT);
pinMode(VGA_H, OUTPUT);
Timer4.pause();
Timer4.setPrescaleFactor(1);    // 72M Full speed
Timer4.setChannel1Mode(TIMER_OUTPUTCOMPARE);
Timer4.setChannel2Mode(TIMER_OUTPUTCOMPARE);
Timer4.setChannel3Mode(TIMER_OUTPUTCOMPARE);
Timer4.setOverflow(2287); //72M / 2287 = 31.4685KHZ
Timer4.setCompare1(1);
Timer4.attachCompare1Interrupt(HV);
Timer4.setCompare2(40);
Timer4.attachCompare2Interrupt(HS);
Timer4.setCompare3(2140);//2100
Timer4.attachCompare3Interrupt(HL);
Timer4.setCount(0);
Timer4.resume();
}
void loop() {
  //digitalWrite( LED_PIN,0);delay(500);
  //digitalWrite( LED_PIN,1);delay(500);
}
void HH(void) { VGA_H_HIGH;}
void HV(void) {
y++;
if( y > 523 ) { y = 0;h_active = 1;return;}
if( y > 492 ) { VGA_V_HIGH;return;}
if( y > 490 ) { VGA_V_LOW;return;}
if( y > 479 ) { h_active = 0;}
}
void HS(void) {
VGA_H_HIGH;
if ( h_active == 0) { return;}
for ( x = 0; x < 22; x++){
   z=( y / 40 + x) %3;
   if ( z == 0){ VGA_B_LOW;VGA_R_HIGH;NOP;NOP;NOP;NOP;NOP;}
   if ( z == 1){ VGA_R_LOW;VGA_G_HIGH;}
   if ( z == 2){ VGA_G_LOW;VGA_B_HIGH;NOP;NOP;
   NOP;NOP;NOP;NOP;NOP;NOP;NOP;NOP;NOP;NOP;}
   NOP;NOP;NOP;NOP;NOP;NOP;NOP;NOP;NOP;NOP;
   NOP;NOP;NOP;NOP;NOP;NOP;NOP;NOP;NOP;NOP;
   NOP;NOP;NOP;NOP;NOP;NOP;NOP;NOP;NOP;NOP;
   NOP;NOP;NOP;NOP;NOP;NOP;NOP;NOP;NOP;NOP;
}
VGA_R_LOW;VGA_G_LOW;VGA_B_LOW;
}
void HL(void) { VGA_H_LOW; }

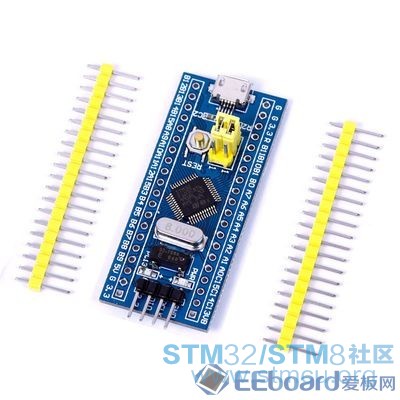

芯片为STM32F103C8T6，参考Crude VGA Output程序。640X480的图像不够细腻，还需改进。今抛砖引玉，望高人赐教。

评分

参与人数 1	ST金币 +10	收起理由
zero99	+ 10

查看全部评分

赞收藏 2 评论4 发布时间：2016-12-14 21:53

4个回答

fanjiezz 回答时间：2016-12-14 22:42:04

网上对STM32F10X系列的RTC时钟有不少的非议，都觉得此类RTC很不准确。前几天有空用此板做了一下试验，觉得还不错。下面先上程序，请各位不吝赐教。
//Analog Input speed test (STM32F103C8T6 AD RTC.ino)
#include <RTClock.h>
#define LED_PIN PC13
RTClock rt (RTCSEL_HSE); //RTClock rt (RTCSEL_LSE);
int i=0,THH,TMM,TSS;
int sensorPin0 = 0,sensorValue0;//
int sensorPin1 = 1,sensorValue1;
int sensorPin2 = 2,sensorValue2;
long TimeVar;
void blink () {
  digitalWrite(LED_PIN,!digitalRead(LED_PIN));
  //RTC_GetCounter() % 86400;
  TimeVar=rt.getTime();
  if (TimeVar>86399){rtc_set_count(0);}
  THH = TimeVar / 3600;// Compute hours
  TMM = TimeVar / 60;
  while (TMM>59){TMM=TMM-60;}// Compute minutes
  TSS = TimeVar % 60;                         // Compute seconds
  Serial.print(THH);Serial.print(":");
  Serial.print(TMM);Serial.print(":");
  Serial.print(TSS);Serial.print(" ");
  Serial.print(sensorValue0);Serial.print(" ");
  Serial.print(sensorValue1);Serial.print(" ");
  Serial.print(sensorValue2);Serial.print(" ");
  Serial.println(i);
  i=0;
  }
void setup() {
  Serial.begin(115200);
  pinMode(LED_PIN, OUTPUT);
  //pinMode(sensorPin0, INPUT_ANALOG);
  //pinMode(sensorPin1, INPUT_ANALOG);
  //pinMode(sensorPin2, INPUT_ANALOG);
  rtc_set_prescaler_load(62500); //rtc_set_prescaler_load(32768);
rtc_set_count(43199);//11:59:59
  rt.attachSecondsInterrupt(blink);
  Serial.println("start");
}
void loop() {
  sensorValue0=analogRead(sensorPin0);
  sensorValue1=analogRead(sensorPin1);
  sensorValue2=analogRead(sensorPin2);
  i=i+1;
}
程序里顺便把AD的读取速度测了。我用的是8M晶振分频方式，也可用32768晶振，即上面标注的LSE方式。原板上的32768晶振有问题，已换掉了。
