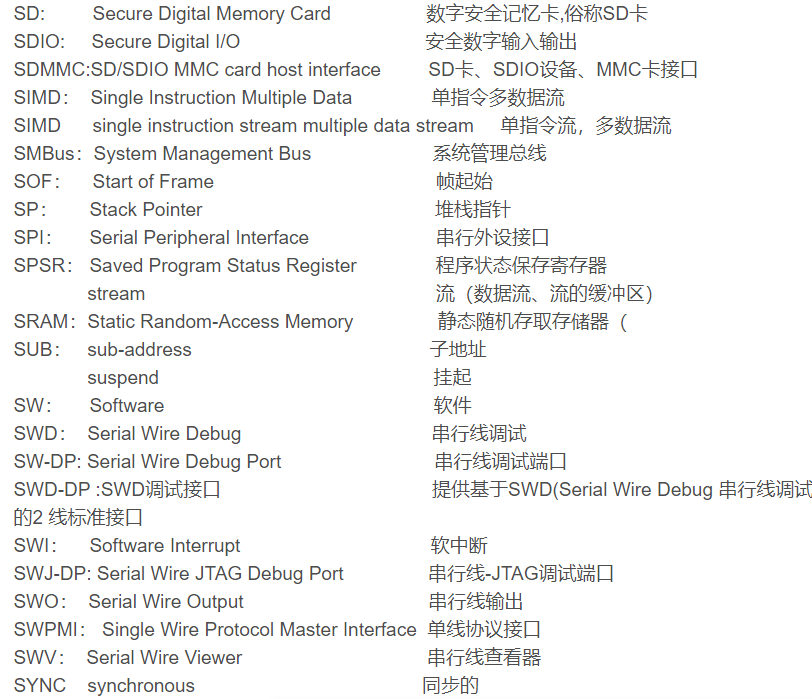

开篇说明,以下仅是本人在采用CubeIDE开发套件做应用开发过程中暂时涉及的一些简称及术语说明列表,后续后涉及新的术语会调整添加,另外各位粉丝在阅读浏览时,如果发现有本文未曾添加或解析错误的术语简称,也可以留言告知,我会调整更新本文。 A 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 AAPCS: ARM Architecture Process Call Standard ARM体系结构过程调用标准 ADC: Analog-to-Digital Converter 模拟数字转换器 AF: Alternate function 复用功能 (port multiplexing and remapping 端口复用和重映射) AFIO: Alternate Function IO 复用 IO 端口 AHB: Advanced High-Performance Bus 高级高性能总线 AHB-AP: Advanced High-Performance Bus-Access Port 高级高性能总线-访问端口 ALU: Arithmetic Logical Unit 算术逻辑单元(CPU负责几乎所有的计算任务的核心) APB: Advanced Peripheral Bus 高级外围总线 APB1: Low Speed APB 低速外围总线 APB2: High Speed APB 高速外围总线 API: Application Programming Interface 应用编程接口 ARM: Advanced RISC Machine 高级RISC处理器 ARG: argument 参数 ARR: auto-reload register 自动装载(寄存器) ARPE: auto-reload preload enable 自动预载(寄存器) ASIC: Application Specific Integrated Circuit 专用集成电路 ASYNC: Asynchronous 异步的 B 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 BCD: Barrels Per Calendar Day 日历 BIN: binary 二进制 BSP: board support package 板级支持包 BSS: Block Started by Symbol 以符号开始的块(未初始化数据段) BSRR bit set/reset register 位重置寄存器 C 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 CAN: Controller Area Network 控制器局域网 CC: Capture/Compare 捕获/比较 CDC: communication device class 通信设备类 CK_INT:clock internal 内部时钟 CLZ: Count Leading Zero 前导零计数(指令) CMSIS: Cortex MicroController Software Interface Standard Cortex 微控制器软件接口标准:独立于供应商的硬件抽象层,适用于基于 Arm Cortex 处理器的微控制器 CNT: counter 计数器 COM: Cluster Communication Port 串口(串行通讯端口) Coefficient 系数 contants 常量 context 上下文环境 coupled 耦合的 COMP: Analog Comparator 模拟比较器 CPLD: Complex Programmable Logic Device 可编程逻辑器件 CPSP: Current Program Status Register 当前程序状态寄存器 critical 临界的 CPHA: clock phase 时钟相位 CPOL: clock polarity 时钟极性 CRC: Cyclic Redundancy Check 循环冗余校验 CSR: Clock Control/Status Register 时钟控制状态寄存器 D 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 DAC: Digital-to-Analog Converter 数模转换器 DAP: Debug Access Port 调试访问端口 DBG: Debug 调试 D-Code: Debug Code 连接Cortex-M3核心的D-Code总线(常数和调试访问)与闪存数据存储器接口的总线 DCMI: Digital Camera Interface 数据视频接口 DEC: decimal 十进制 DFSDM:Digital filter for sigma delta modulators 外部ΣΔ调制的数字信号滤波 DFU: Device Firmware Upgrade USB接口的STM32型号从硬件或软件上支持 Dhrystone 最常见的整数运算性能测试程序 division 分频因子 DMA: Direct Memory Access 存储器直接访问 DMA2D: Chrom-ART Accelerator 2D图像处理的DMA DMIPS:Dhrystone Million Instructions executed Per Second Dhrystone 软件测算力的MIPS单位 domain n. 域,范围,定义域 downcounter n. 降值计数器 DP: Debug Port 调试端口 duty cycle 占空比 DWT: Data Watchpoint And Trace 数据观测与跟踪单元 E 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 EA: Empty Ascending 空栈递增 ED: Empty Desending 空栈递减 elapsed 过去 EOC:end of convert 转换结束 ETM:Embedded Trace Macrocell 嵌入式追踪宏单元 ETR:External 外部 (信号) EXTI: External Interrupts 外部中断 F 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 FA: Full Ascending 满栈递增 FATFS: FAT(File Allocation Table)File system 通用FAT文件系统 FD: Full Desending 满栈递减 FIFO: First in, First out 先进先出 FIQ: Fast Interrupt Request 快速中断请求 FLITF:The Flash Memory Interface 闪存存储器接口 FMC: FPGA Mezzanine Card FPGA夹层卡(FPGA接口) FPB: flash patch and breakpoint FLASH 转换及断电单元 FPEC:FLASH Program/Erase controller 闪存编程/擦除控制器 FPGA: Field Programmable Gate Array 现场可编程门阵列 FS: Full Speed 全速(12 Mbps) FSMC: Flexible Static Memory Controller 可变静态存储控制器 function 功能、函数 G 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 GAL: Generic Array Logic 通用阵列逻辑 generation 产生 GPIO:General Purpose Input/Output 通用输入输出 H 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 HAL: Hardware Abstraction Layer 硬件抽象层 Half Word 半字,16位长的数据或指令 handler n. 句柄 HCLK:High-speed Clock 高速时钟 HEX: hexdadecimal 十六进制 HID: human interface device 人机界面设备 HSE: High Speed External 高速外部 HSI: High Speed Internal 高速内部 I 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 IABR: Interrupt Active Bit Registers 中断激活标志位寄存器组 IAP: In-Application Programming 在程序中编程 I2C: Inter-Integrated Circuit 集成电路总线 ICE: In-Circuit Emulator 在线仿真器 ICEB: ICE Breaker 嵌入式在线仿真单元 ICP: In-Circuit Programming 在线编程 ICER: Interrupt Clear-Enable Registers 中断除能寄存器组 ICPR: Interrupt Clear-Pending Registers 中断解挂控制寄存器组 I-Code:连接Cortex-M*核心的指令总线与闪存程序存储器接口的总线,指令预取在这个总线上实现的 IDE: Integrated Development Environment 集成开发环境 idle 空闲的 IDR: input data register 输入数据寄存器 IIS: integrate interface of sound 集成音频接口 instance 寄存器指针 integrity 完整(测试完整性) Initialise 初始化 Instance n. 实例; 例子; 事例; v.举例 IP: Interrupt Priority Registers 中断优先级控制的寄存器组 IPR: Interrupt Priority Registers 中断优先级控制的寄存器组 IRQ: Interrupt Request 中断请求 IRQn: Interrupt Request number 中断请求号 ISR: Interrupt Service Routines 中断服务程序 ISER: Interrupt Set-Enable Registers 中断使能寄存器组 ISPR: Interrupt Set-Pending Registers 中断挂起控制寄存器组 ITM: Instrumentation Trace Macrocell 测量跟踪宏单元 IWDG: Independent Watchdog 独立看门狗 iterator 迭代器 J 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 JTAG: Joint Test Action Group 联合测试行动组 JTAG-DP: JTAG Debug Port JTAG JTAG调试接口,提供基于JTAG(Joint Test Action Group 联合测试行动小组)协议的5线标准接口 K 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 L 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 LCD: Liquid Crystal Display 液晶显示器 LPUART:Low-power Universal Asynchronous Receiver/Transmitter 低功耗的通用异步串行口 LR: Link Register 链接寄存器 LSB: Last(Least) Significant Bit 最低有效位 LSCO: low speed clock output 低速时钟输出 LSE: Low Speed External 低速外部 LSI: Low Speed Internal 低速内部 LSU: Load Store Unit 存取单元 LL库: low-layer drivers 低层库 LPTIM: less power timer 低功耗定时器 M 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 MCO: Master Clock Output microcontroller微控制器时钟输出 MCU: Microcontroller Unit 微控制单元 MFLOPS: Million Floating-point Operations per Second 主要用于测浮点计算能力。 MIPS: Million Instructions executed Per Second 每秒执行百万条指令,用来计算同一秒内系统的处理能力,即每秒执行了多少百万条指令 MMC: MultiMedia Card 多媒体卡 MPU: Memory Protection Unit 内存保护单元 MPU: Microprocessor Unit 微处理器 MSB: Most Significant Bit 最高有效位 MSC: mass storage device class 大容量存储类 MSI: Multi speed Internal 多速内部时钟源 MSP: Main Stack Pointer 主堆栈指针 MSP: MCU Specific Package MCU特征包、MCU 实例化包 MSP: MCU Support package MCU支持包 MUX: multiplexer (multiplexor)多路复用器也称数据选择器(data selector) N 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 NMI: Non Maskable Interrupt 不可屏蔽中断 NSS: Negative Slave Select 低电平有效的从器件选择,俗称片选信号 NVIC: Nested Vectored Interrupt Controller 嵌套向量中断控制器 O 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 OBL: Option Byte Loader 选择字节加载单元 occure 发生 ODR: Output data rate 数据输出频率,单位Hz ODR: Output data register 输出数据寄存器 OPAMP:OPerational AMPlifier 运算放大器 OSPEEDR ![]() OTG: On-The-Go: OTG外设可运行时切换 HOST/DEVICE角色 overload 重载 OTYPER: output type register 输出类型寄存器 P 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 parameter(s) n. 参数 PAL: Programmable Array Logic 可编程阵列逻辑 PC: Program Counter 程序计数器 period 1.(定时器的)自动装载值ARR(自动重装载寄存器(TIMx_ARR)) 2.周期,(物理学符号是 T) preemption priority 抢占优先级 peripheral n. 外设 外围设备 PCLK: Peripheral Clock 外设时钟 PDM:Pulse Duration Modulation 脉宽调制 PFU: Pre-Fetch Unit 预取单元 PID: Product ID 产品标识 POR: Power-on reset 电源复位 polarity 极性 prototype 原型(functions prototypes 函数原型) PPB:Private Peripheral Bus 专用外设总线 PRI: priority 优先级 PSC:prescaler n. 预分频器 PSP:Process Stack Pointer 进程堆栈指针 PSRAM ![]() PUDR:pull-up/down register 上拉/下拉寄存器 Q 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 QUADSPI:quad Serial Peripheral Interface Quad模式串行外围设备接口, queue 队列 R 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 RCC: Reset And Clock Control 复位和时钟控制 RES: resolution 分辨率 repetition 重复(overload是 重载,不要混了) restrict 限制 resume 恢复 RISC: Reduced Instruction Set Computer 精简指令集计算机 RNG: Random Numeral Generator 随机数发生器 RO: Read Only 只读 ROM: Read Only memory 只读存储器 RS232: Recommended Standard 232 推荐标准232 Modbus RTU协议 RS485: Recommended Standard 485 推荐标准485 Modbus RTU协议 RTC: Real-Time Clock 实时时钟 RTOS: Real Time Operating System 实时操作系统 RW: Read Write 读写 RX: Receive X 通信接收单元,X代表要交叉,也就是说A方的TX接B方的RX、B方的TX接A方的RX。 S 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 SAI: Serial Audio Interface 串行音频接口 SAK: slave acknowledge 从机应答 sample 样本 state . 状态 status n. 状态 SCSI: small computer system inerface 小型计算机系统接口 scheduler 调度器 SD: Secure Digital Memory Card 数字安全记忆卡,俗称SD卡 SDIO: Secure Digital I/O 安全数字输入输出 SDMMC:SD/SDIO MMC card host interface SD卡、SDIO设备、MMC卡接口 SIMD: Single Instruction Multiple Data 单指令多数据流 SIMD single instruction stream multiple data stream 单指令流,多数据流 SMBus:System Management Bus 系统管理总线 SOF: Start of Frame 帧起始 SP: Stack Pointer 堆栈指针 SPI: Serial Peripheral Interface 串行外设接口 SPSR: Saved Program Status Register 程序状态保存寄存器 stream 流(数据流、流的缓冲区) SRAM:Static Random-Access Memory 静态随机存取存储器( SUB: sub-address 子地址 suspend 挂起 SW: Software 软件 SWD: Serial Wire Debug 串行线调试 SW-DP: Serial Wire Debug Port 串行线调试端口 SWD-DP :SWD调试接口 提供基于SWD(Serial Wire Debug 串行线调试)协议的2 线标准接口 SWI: Software Interrupt 软中断 SWJ-DP: Serial Wire JTAG Debug Port 串行线-JTAG调试端口 SWO: Serial Wire Output 串行线输出 SWPMI: Single Wire Protocol Master Interface 单线协议接口 SWV: Serial Wire Viewer 串行线查看器 SYNC synchronous 同步的 T 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 TAP: Test Access Port 测试访问端口 task 任务 TCB: task control block 任务控制块 TF: Trans FLash (T-Flash) TF卡,又叫microSD卡 THS: threshold 阈 TIM: Timer 定时器 TP: Trace Port 跟踪端口 TPIU: Trace Port Interface Unit 跟踪端口接口单元 Trigger 触发 TSC: touch sensing controller 触摸感应控制器 TX: Transmit X 通信发送单元,X代表要交叉,也就是说A方的TX接B方的RX、B方的TX接A方的RX。 U 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 UART: Universal Asynch. Receiver Transmitter 通用异步接收/发送装置 UEV: update event 更新事件 UDIS: update disable 禁止产生更新事件 (UEV) USART: Universal Synchr./Asynch. Receiver/Transmitter 通用同步/异步接收/发送器 USB: Universal Serial Bus 通用串行总线 USB OTG:USB On-The-Go USB2.0标准的补充协议 V 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 VBUS: voltage bus 电压总线 VCP: visual com port 虚拟串口 VFP: Vector Floating Point 矢量浮点运算 VID: vendor number 厂商标识 W 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 Whetstone 最常见的浮点运算性能测试程序 Word 字 32位长的数据或指令 WWDG:Window Watchdog 窗口看门狗 X 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 Y 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 Z 按第二字符A B C D E F G H I J K L M N O P Q R S T U V W X Y Z排序 ZI: zero initial 零初始化 ———————————————— 版权声明:py_free-物联智能 |
