安装软件包

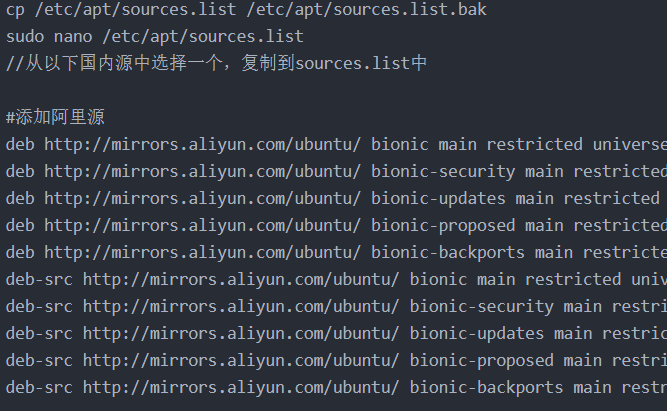

0 D3 Z D! @; W1 O5 ]替换软件源为国内软件源3 Y6 p1 r% k I; ~- T- d
7 D8 j$ n; @) L# T: \
更新软件列表
3 c" e; ]" f, H- PC gt; sudo apt-get update' h2 m$ C; j' O' b
- PC gt; apt-get upgrade
其他设置( i6 C# Q3 o% M2 }( _* R
设置mmc允许16个分区& z$ D- ~( @, Q* s) l6 N5 ?0 n
默认情况下，在Linux系统上，mmc上最多允许8个分区。所有程序包（入门程序包，…）需要10个以上的分区用于存储设备。为了将每个设备的分区数扩展到16，必须在modprobe中添加以下选项：
4 Q5 K1 I3 b( [ `' H% A! r: T! ]- PC gt; echo 'options mmc_block perdev_minors=16' > /tmp/mmc_block.conf
4 i& ?4 [) L6 m2 O6 g# j - PC gt; sudo mv /tmp/mmc_block.conf /etc/modprobe.d/mmc_block.conf
+ C1 R' B/ x$ @* ?: nSTM32CubeProgrammer. K8 `3 I/ a% J& [0 r: N
安装STM32CubeProgrammer- x. d, G& I6 b4 Y% K; w1 F& A
解压&安装程序 \- K! C [/ \2 F" Y6 t
将en.stm32cubeprog.zip通过FTP拷贝到linux主机上，然后执行解压" Z6 w! U2 j/ P7 [* l% l4 p
- PC gt;unzip en.stm32cubeprog.zip _' u+ U" M9 W7 N6 m
- ./SetupSTM32CubeProgrammer-2.2.0.linux
. f8 W9 I% K- o/ r4 k- E
添加PATH0 a: |) O7 Y/ n5 R
- export PATH=<my STM32CubeProgrammer install directory>/bin:$PATH) S) I9 D, [+ e$ h" l
- // for example
0 c7 I( y3 U* t' }/ s; Y - export PATH=~/STMicroelectronics/STM32Cube/STM32CubeProgrammer/bin:$PATH
安装开发板USB驱动
X! z5 C+ @2 ~5 B1 b! q安装驱动
9 c3 s8 z) `& h- PC gt; sudo apt-get install libusb-1.0-0
- PC gt; cd <your STM32CubeProgrammer install directory>/Drivers/rules
0 b% w/ Q7 f; t' @9 X: m - PC gt; sudo cp *.* /etc/udev/rules.d/
" S- f6 h% f+ F$ J; v9 o
" b. {; M7 }8 M4 N/ U6 v2 U- //for example % ` g& Q- i8 W* C# Z4 I
- cd ~/STMicroelectronics/STM32Cube/STM32CubeProgrammer/Drivers/rules
$ h) Z) \3 o& ]# \ - sudo cp *.* /etc/udev/rules.d/
下载并烧录程序0 t: D1 E' V+ g3 k
将固件复制到linux主机2 T% `2 ^! n# m" c
将新建固件包存放目录* B% ~- @& k7 ?% ^& I4 Y3 [3 c& R9 u
& z4 B1 j+ @" C. e9 ]: W- mkdir <working directory path>/Starter-Package! @3 t8 }* C n" D+ y6 J
- cd <working directory path>/Starter-Package) F1 k$ G! s/ P! L5 e
- 8 \/ [, E/ q2 k* P6 I8 W% p Q6 @& m
- //for example; @ [/ r5 H- j# X, _6 p: }. V
- mkdir ~/STMicroelectronics/STM32Cube/STM32CubeProgrammer/Starter-Package
0 X+ o7 ]4 p* O. A4 P4 x# o# f: Y - cd ~/STMicroelectronics/STM32Cube/STM32CubeProgrammer/Starter-Package
2 N' G, e" A# h0 e, a# p+ J9 e. p将固件包en.FLASH-stm32mp1-openstlinux-4.19-thud-mp1-19-10-09.tar.xz通过FTP拷贝到上述目录1 x* m# ^4 q! C( b7 m
解压固件包" c3 t( u. `7 w6 H9 b4 d$ _5 _" d4 h
% Q# Y' y# P5 R; o4 h% D
- tar xvf en.FLASH-stm32mp1-openstlinux-4.19-thud-mp1-19-10-09.tar.xz
, t7 } [1 b5 r7 T1 U% l查看解压后的固件包， 二进制文件 和 Flash layout 文件 在< Starter Package installation directory>/openstlinux-4.19-thud-mp1-19-10-09/images/stm32mp1/目录下。
3 n) E/ f5 J1 p! X H' V& n) d
2 R- A4 R+ g' R+ M- stm32mp1 y& ]' {- H5 q! G. z) ^8 _5 l
- ├── flashlayout_st-image-weston Flash layout files (description of the partitions) for the supported Flash devices and boards* ]) \& O. N7 N; P
- │ ├── FlashLayout_sdcard_stm32mp157a-dk1-basic.tsv Flash layout file for microSD card and basic boot chain → STM32MP15 Discovery kits; M$ Y5 }$ v x* ?7 j
- │ ├── FlashLayout_sdcard_stm32mp157a-dk1-optee.tsv Flash layout file for microSD card and optee boot chain → STM32MP15 Discovery kits
8 K" |7 L# o9 p& B* X) b - │ ├── FlashLayout_sdcard_stm32mp157a-dk1-trusted.tsv Flash layout file for microSD card and trusted boot chain (recommended setup) → STM32MP15 Discovery kits; s* v+ x7 d* Y) F2 r' b0 [4 K
- │ ├── FlashLayout_sdcard_stm32mp157c-dk2-basic.tsv Flash layout file for microSD card and basic boot chain → STM32MP15 Discovery kits
/ A9 ^7 E2 g7 A# ?7 t3 H - │ ├── FlashLayout_sdcard_stm32mp157c-dk2-optee.tsv Flash layout file for microSD card and optee boot chain → STM32MP15 Discovery kits; e0 L9 R+ h5 |
- │ ├── FlashLayout_sdcard_stm32mp157c-dk2-trusted.tsv Flash layout file for microSD card and trusted boot chain (recommended setup) → STM32MP15 Discovery kits. P; \8 G- L e0 H: H, |; O5 t/ k
- │ ├── FlashLayout_emmc_stm32mp157c-ev1-optee.tsv Flash layout file for eMMC and optee boot chain → STM32MP15 Evaluation boards) b3 p* X0 p, p" w1 n& m4 \, i
- │ ├── FlashLayout_emmc_stm32mp157c-ev1-trusted.tsv Flash layout file for eMMC and trusted boot chain → STM32MP15 Evaluation boards# g) d1 ?3 O! t- {, l- \; c
- │ ├── FlashLayout_nand-4-256_stm32mp157c-ev1-optee.tsv Flash layout file for NAND Flash and optee boot chain → STM32MP15 Evaluation boards
1 g4 j" V/ q, k5 n8 j - │ ├── FlashLayout_nand-4-256_stm32mp157c-ev1-trusted.tsv Flash layout file for NAND Flash and trusted boot chain → STM32MP15 Evaluation boards) Y7 ^2 \2 u* H
- │ ├── FlashLayout_nor-emmc_stm32mp157c-ev1-optee.tsv Flash layout file for NOR Flash (and eMMC) and optee boot chain → STM32MP15 Evaluation boards
3 Q! S8 C. W/ L2 Y, {& B$ T1 P% a9 v - │ ├── FlashLayout_nor-emmc_stm32mp157c-ev1-trusted.tsv Flash layout file for NOR Flash (and eMMC) and trusted boot chain → STM32MP15 Evaluation boards
% ]' a% X+ H1 o, y) b8 r - │ ├── FlashLayout_nor-nand-4-256_stm32mp157c-ev1-optee.tsv Flash layout file for NOR Flash (and NAND Flasdh) and optee boot chain → STM32MP15 Evaluation boards
9 j1 Y6 z, J1 w! h - │ ├── FlashLayout_nor-nand-4-256_stm32mp157c-ev1-trusted.tsv Flash layout file for NOR Flash (and NAND Flasdh) and trusted boot chain → STM32MP15 Evaluation boards" Q! ^' k% v$ d1 Y
- │ ├── FlashLayout_nor-sdcard_stm32mp157c-ev1-optee.tsv Flash layout file for NOR Flash (and microSD card) and optee boot chain → STM32MP15 Evaluation boards
$ N, j+ \ s- v9 l( J - │ ├── FlashLayout_nor-sdcard_stm32mp157c-ev1-trusted.tsv Flash layout file for NOR Flash (and microSD card) and trusted boot chain → STM32MP15 Evaluation boards: B( Z! {" D3 g' Y) O
- │ ├── FlashLayout_sdcard_stm32mp157c-ev1-basic.tsv Flash layout file for microSD card and basic boot chain → STM32MP15 Evaluation boards% y3 F1 l h8 z$ y+ ?
- │ ├── FlashLayout_sdcard_stm32mp157c-ev1-optee.tsv Flash layout file for microSD card and optee boot chain → STM32MP15 Evaluation boards) N# N X3 z3 F8 Z* d
- │ └── FlashLayout_sdcard_stm32mp157c-ev1-trusted.tsv Flash layout file for microSD card and trusted boot chain (recommended setup) → STM32MP15 Evaluation boards! ?7 H4 ]2 }6 e4 b: T
- ├── scripts
% j/ W3 H* v! _ - │ └── create_sdcard_from_flashlayout.sh
- \, v$ a2 R2 t3 n4 D3 R; S - ├── st-image-bootfs-openstlinux-weston-stm32mp1.ext4 Binary for bootfs partition$ l# t/ s. F1 A$ n6 Y) U
- ├── st-image-bootfs-openstlinux-weston-stm32mp1.manifest; y/ l% N$ S1 r& k1 o7 G+ M5 o7 w
- ├── st-image-userfs-openstlinux-weston-stm32mp1.ext4 Binary for userfs partition, z: N C% x2 t' K: i( a
- ├── st-image-userfs-openstlinux-weston-stm32mp1.manifest
2 Y# `0 ]" T3 y; U, H - ├── st-image-vendorfs-openstlinux-weston-stm32mp1.ext4 Binary for vendorfs partition& t" j! C7 f6 {( A
- ├── st-image-vendorfs-openstlinux-weston-stm32mp1.manifest
( q! C) U& r9 f4 v$ L* M/ Y - ├── st-image-weston-openstlinux-weston-stm32mp1.ext4 Binary for rootfs partition
0 U: U# W. v9 Z( z - ├── st-image-weston-openstlinux-weston-stm32mp1.license) J% A5 E5 z: _' _, U, \
- ├── st-image-weston-openstlinux-weston-stm32mp1-license_content.html
5 @. R: Q/ K2 ^7 ^ - ├── st-image-weston-openstlinux-weston-stm32mp1.manifest5 b4 B$ |" O3 g9 y2 {
- ├── st-image-weston-openstlinux-weston-stm32mp1_nand_4_256_multivolume.ubi
8 E4 a7 u& C* k1 B6 L - ├── tee-header_v2-stm32mp157a-dk1-optee.stm324 `0 i: |6 h) Z
- ├── tee-header_v2-stm32mp157c-dk2-optee.stm32( n7 P ^9 E$ ^; h. \, o
- ├── tee-header_v2-stm32mp157c-ev1-optee.stm32
$ {+ N; |- g2 ~/ [. a4 _# z - ├── tee-pageable_v2-stm32mp157a-dk1-optee.stm32" P" j# }6 r1 A( V" Q1 f# X6 \
- ├── tee-pageable_v2-stm32mp157c-dk2-optee.stm32
' @" X6 s7 o+ B! C$ j% D - ├── tee-pageable_v2-stm32mp157c-ev1-optee.stm32$ b) W0 N( A; @8 p
- ├── tee-pager_v2-stm32mp157a-dk1-optee.stm32
6 m, u/ J: f8 ~ - ├── tee-pager_v2-stm32mp157c-dk2-optee.stm32
3 C- c: q9 M; w - ├── tee-pager_v2-stm32mp157c-ev1-optee.stm32
- J) w5 I1 ^7 ?* a - ├── tf-a-stm32mp157c-dk1-optee.stm32 TF-A binary for FSBL partition (optee boot chain) → STM32MP15 Discovery kits3 a9 T1 l V5 U/ t( j) f
- ├── tf-a-stm32mp157c-dk1-trusted.stm32 TF-A binary for FSBL partition (trusted boot chain) → STM32MP15 Discovery kits& M( q# C0 e6 h! C/ b
- ├── tf-a-stm32mp157c-dk2-optee.stm32 TF-A binary for FSBL partition (optee boot chain) → STM32MP15 Discovery kits
: _8 w5 r. V4 ^4 D. r" k2 u, ^ - ├── tf-a-stm32mp157c-dk2-trusted.stm32 TF-A binary for FSBL partition (trusted boot chain) → STM32MP15 Discovery kits# ?+ j6 B" h# _2 u" i$ t
- ├── tf-a-stm32mp157c-ev1-optee.stm32 TF-A binary for FSBL partition (optee boot chain) → STM32MP15 Evaluation boards
- X& F" V1 P( H) @ - ├── tf-a-stm32mp157c-ev1-trusted.stm32 TF-A binary for FSBL partition (trusted boot chain) → STM32MP15 Evaluation boards- A* P+ { Z6 n6 |0 W- l1 t
- ├── u-boot-spl.stm32-stm32mp157c-dk1-basic U-Boot binary for FSBL partition (basic boot chain) → STM32MP15 Discovery kits- |7 \& C( N* u" _
- ├── u-boot-spl.stm32-stm32mp157c-dk2-basic U-Boot binary for FSBL partition (basic boot chain) → STM32MP15 Discovery kits
6 T' H$ z8 w" z7 A - ├── u-boot-spl.stm32-stm32mp157c-ev1-basic U-Boot binary for FSBL partition (basic boot chain) → STM32MP15 Evaluation boards
+ E0 k# E$ `! |" c - ├── u-boot-stm32mp157c-dk1-basic.img U-Boot binary for SSBL partition (basic boot chain) → STM32MP15 Discovery kits
5 j! x6 U9 ?6 n6 J - ├── u-boot-stm32mp157c-dk1-trusted.stm32 U-Boot binary for SSBL partition (trusted boot chain) → STM32MP15 Discovery kits8 E& @0 q; U1 z" W7 s; A
- ├── u-boot-stm32mp157c-dk1-optee.stm32 U-Boot binary for SSBL partition (optee boot chain) → STM32MP15 Discovery kits
# o3 Q+ h4 [, K! L; [8 U. v: m! O - ├── u-boot-stm32mp157c-dk2-basic.img U-Boot binary for SSBL partition (basic boot chain) → STM32MP15 Discovery kits S) W P( c' F" ^+ [
- ├── u-boot-stm32mp157c-dk2-trusted.stm32 U-Boot binary for SSBL partition (trusted boot chain) → STM32MP15 Discovery kits& t8 J; W6 A, l
- ├── u-boot-stm32mp157c-dk2-optee.stm32 U-Boot binary for SSBL partition (optee boot chain) → STM32MP15 Discovery kits0 R8 W7 x1 U* T+ E" L% {9 i
- ├── u-boot-stm32mp157c-ev1-basic.img U-Boot binary for SSBL partition (basic boot chain) → STM32MP15 Evaluation boards: ]2 U* L7 N) V& S$ A" E) C
- ├── u-boot-stm32mp157c-ev1-trusted.stm32 U-Boot binary for SSBL partition (trusted boot chain) → STM32MP15 Evaluation boards) G: l- U/ Y, s- _! E/ M
- └── u-boot-stm32mp157c-ev1-optee.stm32 U-Boot binary for SSBL partition (optee boot chain) → STM32MP15 Evaluation boards
" t' E: l& W' n1 X
烧录固件到STM32MP1# |+ Y" {! T; B( q
烧录按照如下流程：
- M- s; N9 i; u: H' t; P1.将开发板BOOT0,BOOT2拨码开关拨到OFF位置. l" C& U$ \4 O, p/ P1 L
2.使用type-C OTG（HDMI旁边的type-C）将开发板连接到主机( b( n# H7 U7 \ `1 Y
3.插入microSD卡
: R; c% ]+ r& H o; f0 @4.使用type-C POWER（RJ45旁边的type-C）给开发板供电（建议@5V3A）) T' Y D7 b/ C2 r/ o2 N- ]3 ]7 ~
5.按下开发板RESET按键，复位开发板
; m, b, `6 y3 {4 a6.主机切换到固件包目录下
. Q+ V6 D3 w- w) A( I" B1 Q7 u3 B& q- PC gt; cd <Starter Package installation directory>/stm32mp1-openstlinux-4.19-thud-mp1-19-10-09/images/stm32mp13 I, n% V$ A' j( o+ L8 L
- //for example; V0 d& L8 F- ]8 j
- PC gt;cd ~/STMicroelectronics/STM32Cube/STM32CubeProgrammer/Starter-Package/stm32mp1-openstlinux-4.19-thud-mp1-19-10-09/images/stm32mp1
3 S5 t8 Z2 X* c4 @9 l+ m) _7.检查STM32CubeProgrammer是否安装成功
% K& M, w9 O8 i6 ]# a0 m" r- PC gt;STM32_Programmer_CLI --h
e& | r) T) ]. ?; F - -------------------------------------------------------------------. h; Z$ W$ Y7 M' d" M
- STM32CubeProgrammer v2.2.0 3 B0 }5 N# o; [- s, P' {
- -------------------------------------------------------------------
0 I5 r* c) T0 _1 `( Q) v8.获取本地USB端口! h) F- A8 o7 y* J7 m
- PC gt;STM32_Programmer_CLI -l usb
8 @6 z9 x: W+ G$ h - -------------------------------------------------------------------
4 Z2 w2 r# p0 p - STM32CubeProgrammer v2.2.0
- C$ Q/ t3 _! w! @4 i5 c - -------------------------------------------------------------------
9 g/ h1 b9 u: ? o* H8 v1 N3 } - 4 H7 w; R, I# \9 f8 z2 i
- ===== DFU Interface =====7 [: p4 ^6 C% `& }$ s- i# ]" }
- 3 [ }3 C3 r) w2 v- Q
- Total number of available STM32 device in DFU mode: 1: L: d( m9 t' i5 t" ]( p& u$ J
- " x/ Z3 W' R/ V* o3 Q) o
- Device Index : USB1
' @+ l, K7 Q2 A5 G m - USB Bus Number : 001
Z+ y( y" g* ]. h' T; [' \ - USB Address Number : 001: F0 ]. `& P1 o* j0 @9 n( H; r
- Product ID : DFU in HS Mode @Device ID /0x500, @Revision ID /0x0000
3 q" ?1 X9 h: S% V( W/ d3 Z - Serial number : 001700293338510A39303435
2 w. x- ?. Z! R, {: u. g) e! z - Firmware version : 0x0110
- x; l6 }, @) }3 C - Device ID : 0x0500
% {# N* i* k. ?8 [! C+ P9.烧写固件
/ D h% o- s1 R& m$ N- PC gt; STM32_Programmer_CLI -c port=usb1 -w flashlayout_st-image-weston/FlashLayout_sdcard_stm32mp157a-dk1-trusted.tsv
$ I# A& x* c& c9 E o - -------------------------------------------------------------------
! y8 w- {: u4 m% `. K6 T; g - STM32CubeProgrammer v2.2.0 2 F; _" p' V7 ?; U
- -------------------------------------------------------------------
" k5 n! d6 U& O
& z' j' q: E# q3 G- % v8 e: V* f8 q. z. ]9 X6 n
- ( n5 c- i0 v. p, D- v( R7 @
- USB speed : High Speed (480MBit/s)
- m7 T$ ~- m7 f. d4 E ?/ [9 p - Manuf. ID : STMicroelectronics* z0 q; }1 Y+ p: k$ i* S' \8 K
- Product ID : DFU in HS Mode @Device ID /0x500, @Revision ID /0x0000! D% J1 Q/ ?: Q% A$ w& }! j+ M' [
- SN : 001700293338510A39303435
m2 K: G1 z* g - FW version : 0x0110
( g1 p6 v/ q4 L) e3 |' x7 X8 X/ V - Device ID : 0x0500 A7 h8 F$ \3 D/ \+ p
- Device name : STM32MPxxx
5 {- s; V2 s2 h& z - Device type : MPU
" a6 A3 k$ `0 g9 g9 l A0 L - Device CPU : Cortex-A72 P, H$ C( q, V5 O
- - n# a) P9 m3 B( x( B
- . n3 p# V, v6 A2 t6 L0 d
- Start Embedded Flashing service" O8 U, |" l% k- F! Z- s
4 V, W/ a# N3 z# ^; v% ^* ?8 G
3 v) v$ B, s, |! g/ q$ t$ y) z3 L- * z3 n- ?* A4 U6 c
- Memory Programming ...
( J+ N- \3 w2 h7 `+ [) m I - Opening and parsing file: tf-a-stm32mp157a-dk1-trusted.stm32
9 {* y9 y" G8 {" _9 F0 @ - File : tf-a-stm32mp157a-dk1-trusted.stm32
1 y0 |# P5 h1 r7 j/ L9 e - Size : 245364 Bytes8 ]0 h4 H; T- K/ J6 l/ C
- Partition ID : 0x01
- l g9 a* `; |+ Z+ t A - + H; D& g: E! i) F
- Download in Progress:3 ]- G2 ^0 `$ K# R7 g5 w2 Y
- [==================================================] 100% , ~; d' s7 c. J% B W' A! L
& {$ U S3 q% @ S/ Z% C- File download complete
1 k/ z$ [/ T4 G8 K: H' E5 D - Time elapsed during download operation: 00:00:01.960
! R; Y! p3 B d- [. b' i6 F
) T! F: ]; ^* E8 @- RUNNING Program ... 1 O8 G/ k" ]8 B9 n6 M
- PartID: :0x01
: v/ T B: b4 Q: _ - Start operation done successfully at partition 0x01
' f( r% u3 e# ]/ D8 w" |' }+ N
+ j! A+ F4 h0 w9 y! c) i+ E- Flashlayout Programming ...
, T7 ]( _- x/ U) q - [==================================================] 100% # g( `# L4 u6 O5 N$ x' C
- Running Flashlayout Partition ...
# x: K8 |+ K! [7 E. U2 J - Flashlayout partition started successfully# w; l9 s( f6 x# I
- m2 }# e P( A; m2 p
* F. m+ O" [. K1 X' X2 `6 D! y- Memory Programming ...3 f0 A& e2 Q6 } C, c* x
- Opening and parsing file: u-boot-stm32mp157a-dk1-trusted.stm32) S }; T: m4 Y
- File : u-boot-stm32mp157a-dk1-trusted.stm32
5 V6 [0 Z5 X% D, J \- k - Size : 803725 Bytes) G9 W6 D7 G; Z$ D6 `
- Partition ID : 0x03 C/ o% v( c5 T. b/ }$ k1 a
- * c" ` F/ ^2 R5 ?: [7 F
- Download in Progress:* t2 g3 f* H2 r% n5 Z& C i7 P8 g% J
- [==================================================] 100%
% \/ z( P/ k- Y# j2 y
1 V" ?8 v4 K( {* \( O9 Y9 N/ F0 s }! u- File download complete, d! M4 _# @) R# A2 |2 b" x
- Time elapsed during download operation: 00:00:06.051 s+ V* l7 S4 g; I* B
* b c1 j5 O" S, ~; }- RUNNING Program ... " D2 L M2 _; F2 P9 f0 T0 ~" N, Q
- PartID: :0x03
% T, ?4 ?# l7 B* ~ - 5 d- l# O$ ^0 X
- reconnecting the device ...
- W+ T* J) ]3 \' S( Y( e2 }1 }7 b
@' x0 T, S7 d# e! D! p2 ]- USB speed : High Speed (480MBit/s)9 ~5 ?* W! K6 P# \. N
- Manuf. ID : STMicroelectronics0 E% P( L3 L2 Q. l) P- A
- Product ID : USB download gadget@Device ID /0x500, @Revision ID /0x0000& H) c, A9 p, j9 N
- SN : 001700293338510A39303435
7 F8 X% Q3 `6 ?8 C' j - FW version : 0x0110) |, o0 R$ y: {8 H
- Device ID : 0x0500
9 p& k+ t% L0 S6 ?9 C. v - Start operation done successfully at partition 0x032 l/ l& H/ U. G1 T3 m) r2 v4 U8 `
8 c+ M: H0 A0 X/ R) v- , }8 i; H9 [* K- i
- Memory Programming ...
) s5 ~7 b Z' T6 D8 L* l4 P) r - Opening and parsing file: tf-a-stm32mp157a-dk1-trusted.stm321 G) |- O# _; o6 U. Y% u& c
- File : tf-a-stm32mp157a-dk1-trusted.stm321 m) A. c+ q( Q: Q; _: v# e- O
- Size : 245364 Bytes
% z+ K8 a, c2 x$ Y. F3 A, \2 \; K4 ] - Partition ID : 0x04 ) m3 Z }% e3 h, t& A
% t" h: w# t+ ]4 Y1 D. Q- Download in Progress:
3 R4 {% J7 B) m, w3 ? t( L - [==================================================] 100%
" \3 [6 U% ?: x! M/ q% g* `
4 ?- a* T' y- K. M! B/ ~% x- File download complete
9 m4 L* C9 L7 G. N - Time elapsed during download operation: 00:00:00.421
6 ]4 h/ f) g$ _' Q. C0 T
1 O7 h6 Q2 O' ]0 j8 \+ b' C3 L- RUNNING Program ...
: B& x6 j/ K7 k N - PartID: :0x04 h7 {) W8 L6 H* @ M0 |
- Start operation done successfully at partition 0x046 M1 H1 ^3 I1 C k" T
- Z) j! o3 u5 @$ \% k- E9 `- 7 \! Z% Z B+ D2 ?! w$ n
- Memory Programming ...1 u/ W3 l0 k x, A1 D: |& y. C
- Opening and parsing file: tf-a-stm32mp157a-dk1-trusted.stm32 R- c3 I1 m7 l+ s& x* Z" k, |
- File : tf-a-stm32mp157a-dk1-trusted.stm32
3 ^) z: a$ Y0 }" p( I4 H - Size : 245364 Bytes
* \# A! Z+ a" A+ g$ i - Partition ID : 0x05 4 U9 D7 I/ G q$ ~" ~$ H
- ; {4 G+ P5 z/ q9 r; t+ i5 O
- Download in Progress:
1 \. d) N, ^; s, C) q7 K' M - [==================================================] 100%
' l3 u8 k5 Z' o2 J F. y - # F! j* G0 v8 \' a
- File download complete
. U# ?9 w% T$ D: y* K - Time elapsed during download operation: 00:00:00.414
8 j9 ~: Y/ ?2 X6 k( J3 f H, l: J - 4 A7 S9 H+ \% X+ f+ M {
- RUNNING Program ...
! g M( q% ]4 u' Z - PartID: :0x05
* z2 L& L. v3 U# ] - Start operation done successfully at partition 0x05
( {4 ?6 {* r1 n5 I6 K8 L- C
8 a. o1 y* U. S4 ?* ~( t& v
% s9 l H7 [! ?, [6 W- Memory Programming ...7 n4 s; u9 H; o+ X
- Opening and parsing file: u-boot-stm32mp157a-dk1-trusted.stm32
% v$ b2 O8 H4 o - File : u-boot-stm32mp157a-dk1-trusted.stm32& r4 @' P" x q: n: z- M; w& V
- Size : 803725 Bytes
* `) n( a j: _2 o - Partition ID : 0x06 ( o3 u! u: L$ a3 E/ }% o W
0 m( z; A6 R8 s( B) Y$ q- Download in Progress:
* i! j3 B. O: M - [==================================================] 100% 1 {9 J2 j j! ?) r! `5 A0 I6 |. n# ~
, D4 o9 t0 J: x% w1 c- File download complete
* f) z+ D$ l# S2 K - Time elapsed during download operation: 00:00:01.355! G* A0 m- A3 s- t2 ]
" X. F! n7 ?! v- RUNNING Program ...
) x6 t3 b3 T5 U* F6 Z - PartID: :0x06
1 d/ Q, C8 v4 D! y5 e/ `2 b - Start operation done successfully at partition 0x06
( o! x# S2 |6 j# B" _7 j2 G$ _
, f* w% K5 p2 C
, p% ]3 e o' S" t6 |! ~( }- Memory Programming .... l' i1 R6 Y$ p! `7 R$ N5 a7 b, L+ A
- Opening and parsing file: st-image-bootfs-openstlinux-weston-stm32mp1.ext4/ }9 v9 L8 S( j% I2 P
- File : st-image-bootfs-openstlinux-weston-stm32mp1.ext4
% [+ M: q+ o& R( F9 {3 \% z - Size : 64 MBytes
$ ?8 s) l8 _9 m* S( b. i+ O - Partition ID : 0x21 6 i3 d i) f3 @
" @+ d! P+ J9 L0 {+ T! S' p9 X- Download in Progress:! l4 A6 }' k* k" d; p
- [==================================================] 100%
! ?, h( p/ ?4 d; S! F/ S5 n$ U2 b - 9 m: X* \. M* s- e
- File download complete
( J+ r2 ^6 j1 J) A4 l3 g - Time elapsed during download operation: 00:02:01.3826 i- a" I0 E2 T* L' ?4 M8 I
( u! M- b' d |" V/ k- RUNNING Program ... 2 e, S# u2 @, Y; D7 E; x
- PartID: :0x21 + s: Y0 f) X! d) I% {/ ?. M& K
- Start operation done successfully at partition 0x21
( u1 z9 m( J9 W9 b: F: _5 Z9 d
- d; [" w- q0 w! R [
) ~- ^) w" d6 R! {- Memory Programming ...+ v% w& I$ h- d$ J0 v' b
- Opening and parsing file: st-image-vendorfs-openstlinux-weston-stm32mp1.ext4! Z# u- ?0 b W/ X V/ ~. L
- File : st-image-vendorfs-openstlinux-weston-stm32mp1.ext49 M5 k& J/ c2 ^8 J. a6 n
- Size : 16 MBytes
# {2 a4 Y- Z: Z* b/ @0 ` - Partition ID : 0x22
' {# }" d$ @$ A* o" g/ v
' P7 Y8 `' ]) f; K1 v/ m- Download in Progress:4 A1 I7 _ x& k7 l5 l0 M" c' j
- [==================================================] 100%
% D" {; H( `3 D) f$ Y - ; w6 _5 d0 G- z- Q5 a" n. Y
- File download complete- i* B* o4 n( h+ I. I. h
- Time elapsed during download operation: 00:00:30.362
1 t6 x3 q( V+ X5 l
, w- V& O* l; Q, n1 [6 k; M- RUNNING Program ... 5 W9 r- A% c* y
- PartID: :0x22
/ p a/ ]! B7 J1 e5 ^ - Start operation done successfully at partition 0x22* ^% c3 B) ]2 u" u
- d; o" X0 D, Q0 w0 ~- 7 Q2 r' a. T% P# H, u6 A' ]7 f; u. B
- Memory Programming ...
( @8 H( c9 S2 r - Opening and parsing file: st-image-weston-openstlinux-weston-stm32mp1.ext4
, {, b% ^, ^- }- O3 h' o - File : st-image-weston-openstlinux-weston-stm32mp1.ext43 s# g0 l$ `! @; t0 R7 |
- Size : 512996 KBytes
6 W. G9 U! w; m* b2 f* ] - Partition ID : 0x23 ( _( B9 z: O# }. K+ P5 i
$ ^" O! t% H T0 d; U- Download in Progress:
1 }; n& S* w3 r3 c5 W) ^) y9 |; A7 C - [==================================================] 100%
9 R+ q, O9 S4 Y# H: |
& t1 J8 [+ Q, O% t- File download complete
; @; P- e- ~7 V, _/ t - Time elapsed during download operation: 00:16:31.909* F! S) |8 w6 M2 i5 q
{4 @+ w% k0 g& d+ M$ e4 }) k- RUNNING Program ...
3 l" k/ i4 V0 [ - PartID: :0x23 & L8 T4 G J2 I g4 A
- Start operation done successfully at partition 0x23
$ I+ u. d8 ~( w: o" ^
/ _! B# f+ G0 y- $ |7 A& A6 V2 q6 _* I
- Memory Programming ...
- Z7 C0 G- e) z1 h9 f. G* e - Opening and parsing file: st-image-userfs-openstlinux-weston-stm32mp1.ext48 P4 {, V7 D7 ^" M! m8 M7 r
- File : st-image-userfs-openstlinux-weston-stm32mp1.ext4
" C- }1 {, I( `5 {# Q - Size : 97807 KBytes
+ F$ w! w" ?# e$ E# X9 }/ X - Partition ID : 0x24 " h, _5 @ x3 a9 t7 R7 f
- ' U) A/ |) E8 s5 v' ]
- Download in Progress:
2 M9 V/ f% n- G1 X H - [==================================================] 100% , c$ W/ H% ]. t) {( S; u6 b
+ v( a* a i/ `- o2 t P$ T- File download complete
! b3 e5 R1 W/ I& o: G - Time elapsed during download operation: 00:03:03.2452 a5 c; w* r5 D2 K" W0 {3 k' B
- 4 s; A8 S: J3 O$ x' O( f
- RUNNING Program ... + z, B3 h( P5 {7 L+ H
- PartID: :0x24
! q% @$ p& D( r. M" { - Start operation done successfully at partition 0x24
2 j6 E6 L3 J5 M$ Q& l: X - Flashing service completed successfully
启动开发板) W- J5 d* X) E" V
1.将BOOT0，BOOT2拨到ON9 B/ C* X7 Y8 J2 h5 z
2.连接鼠标键盘: a: e3 { j$ a: X
3.连接电源
, p7 w* J m: w( b" r4.插入microSD卡
' t' B1 L3 R: h, f4 _' p0 a$ C5.插入网线9 K% \- C: J' I' x0 ?. C8 b$ r
6.插入microUSB，连接主机和开发板9 d! M2 s/ O. I! F1 h; m
7.插入HDMI连接显示器- F) M/ N- l7 G) L- ]9 a. o
8.按下复位按键，启动开发板6 g0 {& j: g# P. P: T5 \8 V
————————————————
# F( k- g: ? N0 s6 W3 h2 R8 e版权声明：IntelligeWither
; m/ J$ ~6 ~% K4 A8 U |( h$ t2 p: H% U0 A1 X: _2 l# v
|
.png)
STMCU小助手
发布时间：2022-10-4 17:25
微信公众号
手机版
