因为需要，最近新花了40元买了一块STM32F103C8T6的小型开发板。早在网站就听说系统工程生成器STM32Cudemx，借实验这块小开发板尝试这款软件试试。软件是早就下载了并且安装了，但没有用，因此版本是4.19.0的。因为网上已有较详细的使用介绍，本实验不在进行介绍。

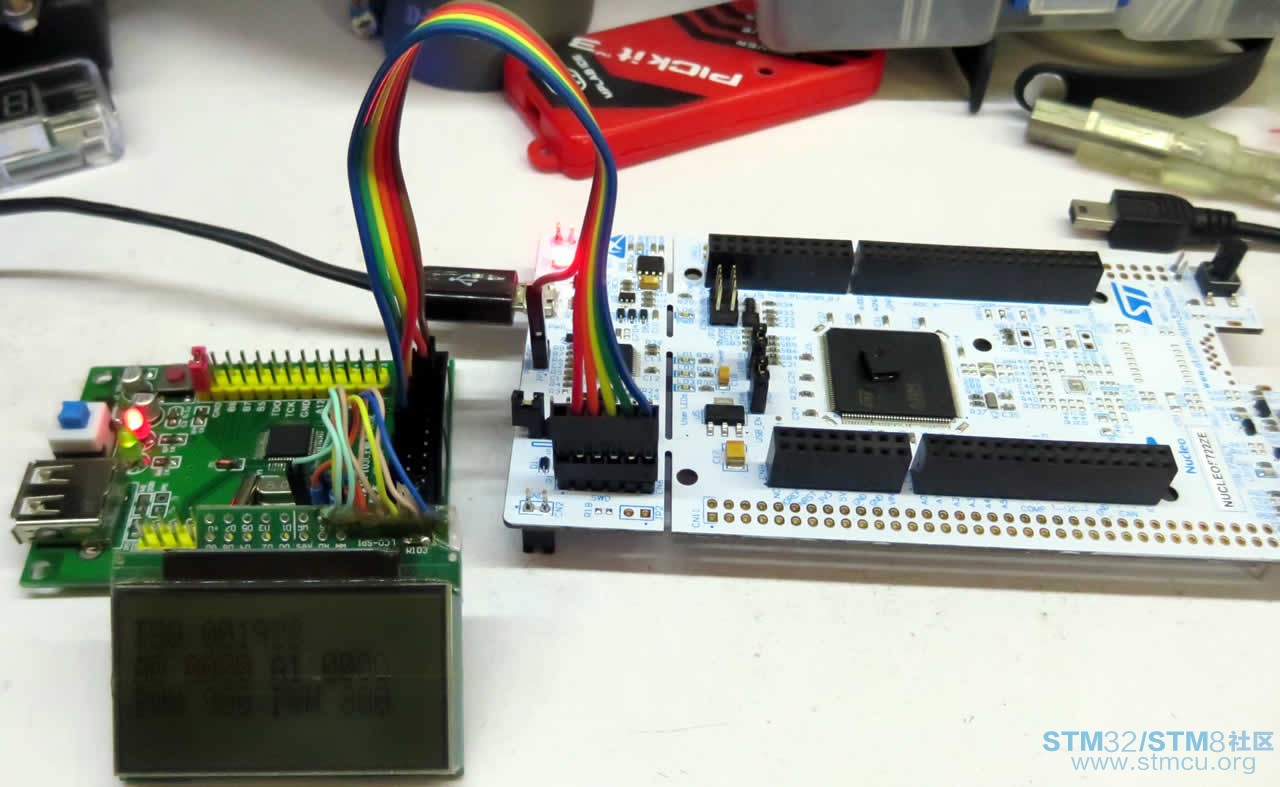

开始比较简单，按照默认的，只是打开了GPIO口来测试班子的好坏——以为是二手的，去掉快递费应该只有30元吧。将板上所有印字的IO口都做了输出实验，连接双向二极管测好坏，一会就完成了。之后测试LCD驱显，采用无背光的KS0713LCD。默认的时钟就是8MHz，结果LCD刷屏明显，看手册F103有PLL，就想将他的SysClock升高，起码不闪屏就好，结果多次摸索，结果看图11。按照图11，选择为内部时钟，倍频16倍得到64MHz，USB是不能用了，因为USB时钟最低除以1.5还是超了，于是关掉USB。其他的各项筛选后都没有红色警告了，见图11。

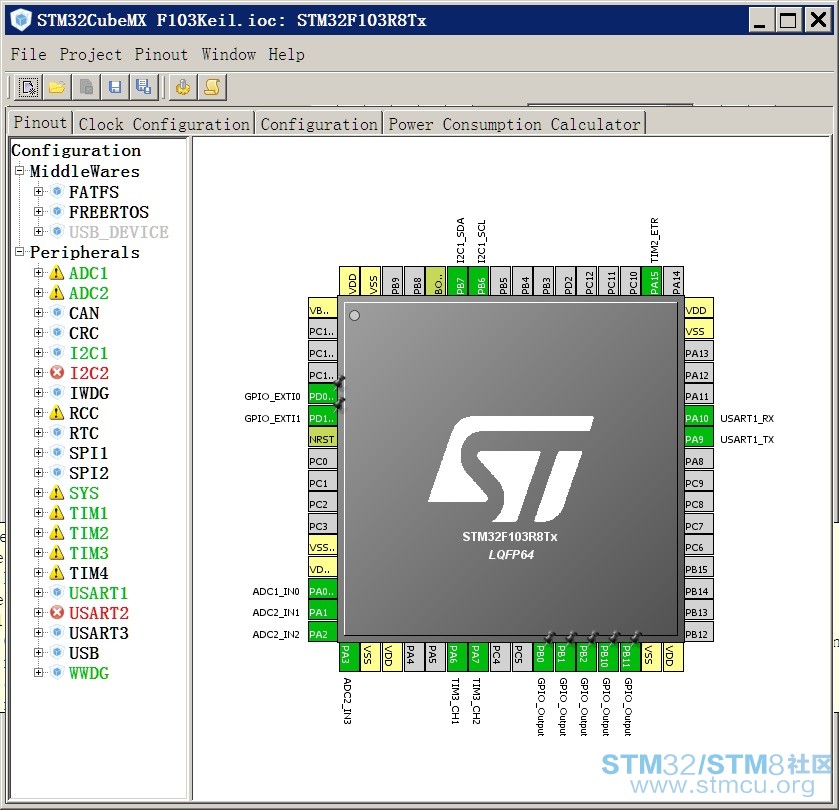

GPIO的选择见图12，设置了3路Timer，其中1个外部输入2路PWM，1路输出控制、2路ADC分别1+3个通道、1路I2C、1路USART、看门狗，还有PB_0,1,2,9,10,11，其中PB_9是测试LED。

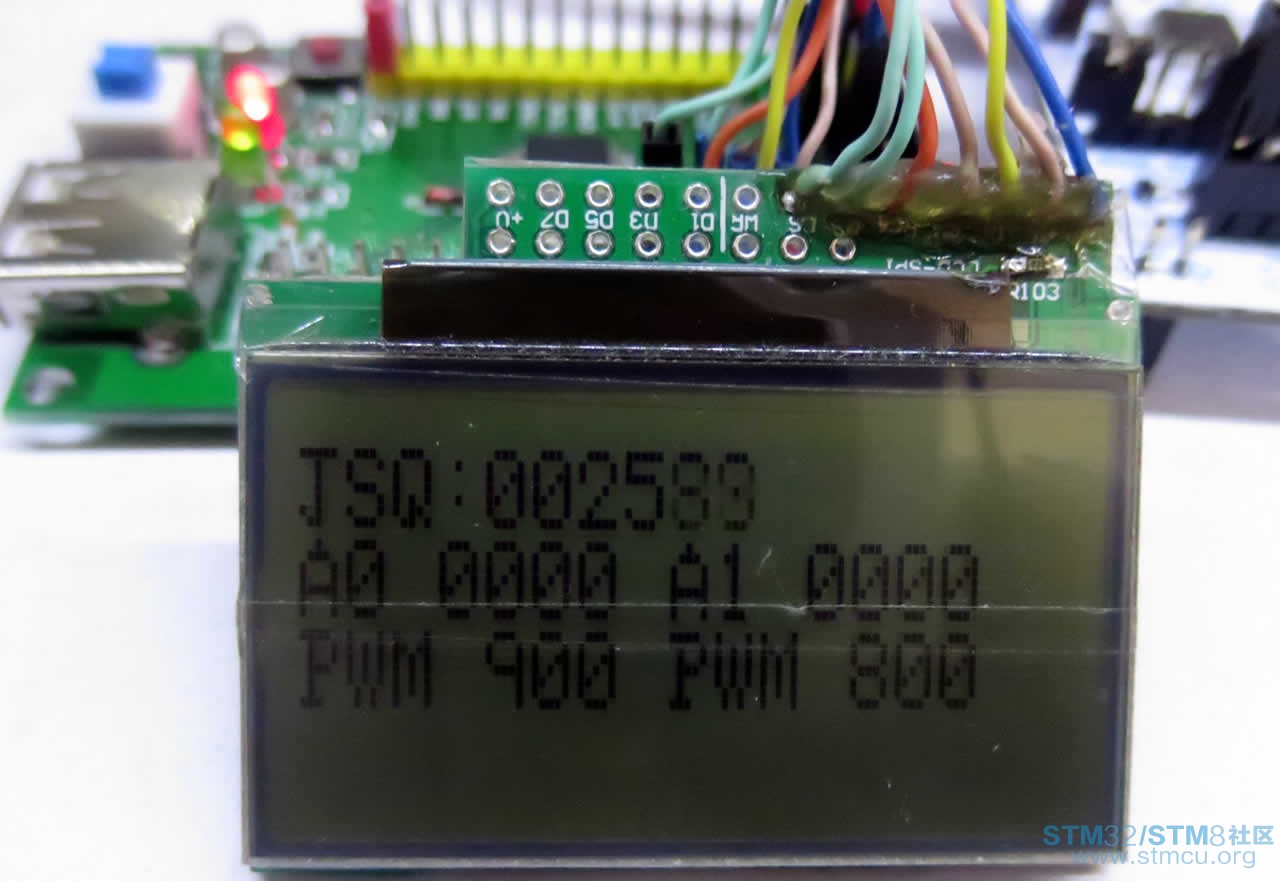

本实验主要是完成驱显，而后逐步完成设置的内容。KS0713的所有驱动创建了一个0713.h文档，保存在incs文件夹下，内容如下：
#include "main.h"
#include "stm32f1xx_hal.h"
//KS0713 LCD
const unsigned char asc2[][6]={//8x8 Dots 32-126[0-94]
{0x00,0x3E,0x45,0x49,0x51,0x3E},//0
{0x00,0x00,0x21,0x7F,0x01,0x00},//1
{0x00,0x31,0x43,0x45,0x49,0x31},//2
{0x00,0x22,0x49,0x49,0x49,0x36},//3
{0x00,0x04,0x0C,0x14,0x7F,0x04},//4
{0x00,0x72,0x51,0x51,0x51,0x4E},//5-5
{0x00,0x3E,0x49,0x49,0x49,0x06},//6
{0x00,0x40,0x43,0x4C,0x50,0x60},//7
{0x00,0x36,0x49,0x49,0x49,0x36},//8
{0x00,0x30,0x48,0x48,0x48,0x3F},//9
{0x00,0x1F,0x24,0x64,0x24,0x1F},//A-10
{0x00,0x41,0x7F,0x49,0x49,0x36},//B
{0x00,0x3E,0x41,0x41,0x41,0x22},//C
{0x00,0x41,0x7F,0x41,0x41,0x3E},//D
{0x00,0x41,0x7F,0x49,0x49,0x63},//E
{0x00,0x41,0x7F,0x49,0x5C,0x60},//F-15
{0x00,0x3E,0x41,0x45,0x47,0x24},//G
{0x41,0x7F,0x08,0x08,0x08,0x7F},//H
{0x00,0x00,0x41,0x7F,0x41,0x00},//I
{0x00,0x42,0x41,0x7F,0x40,0x40},//J
{0x00,0x41,0x7F,0x59,0x24,0x43},//K-20
{0x00,0x40,0x7F,0x41,0x01,0x03},//L
{0x00,0x7F,0x20,0x1E,0x20,0x7F},//M
{0x00,0x7F,0x30,0x18,0x06,0x7F},//N
{0x00,0x3E,0x41,0x41,0x41,0x3E},//O
{0x00,0x41,0x7F,0x49,0x48,0x30},//P-25
{0x00,0x3E,0x41,0x47,0x42,0x3D},//Q
{0x00,0x41,0x7F,0x49,0x4C,0x33},//R
{0x00,0x32,0x49,0x49,0x49,0x26},//S
{0x00,0x60,0x41,0x7F,0x41,0x60},//T
{0x00,0x7E,0x01,0x01,0x01,0x7E},//U-30
{0x00,0x7C,0x02,0x01,0x02,0x7C},//V
{0x00,0x7C,0x03,0x3C,0x03,0x7C},//W
{0x00,0x43,0x24,0x18,0x24,0x43},//X
{0x00,0x60,0x18,0x07,0x18,0x60},//Y
{0x00,0x63,0x45,0x49,0x51,0x63},//Z-35
{0x00,0x00,0x00,0x01,0x00,0x00},//.
{0x00,0x14,0x14,0x14,0x14,0x14},//=
{0x00,0x08,0x08,0x3E,0x08,0x08},//+
{0x00,0x08,0x08,0x08,0x08,0x08},//-
{0x00,0x00,0x00,0x24,0x00,0x00},//:-40
};
//Write Plus
void wri(void){
HAL_GPIO_WritePin(GPIOB,GPIO_PIN_10,GPIO_PIN_RESET);
HAL_GPIO_WritePin(GPIOB,GPIO_PIN_10,GPIO_PIN_SET);
}
//a B Data to LCD,dt:data,com:1-dat/0-com//1=clk,2=dat,3=reg,4=res
void b2l(unsigned char dt,unsigned char com){
unsigned char i;
HAL_GPIO_WritePin(GPIOB, GPIO_PIN_0, GPIO_PIN_RESET);
if(com)HAL_GPIO_WritePin(GPIOB, GPIO_PIN_1, GPIO_PIN_SET);else HAL_GPIO_WritePin(GPIOB, GPIO_PIN_1, GPIO_PIN_RESET);;
for(i=0;i<8;i++){
  if(dt&0x80){HAL_GPIO_WritePin(GPIOB, GPIO_PIN_11, GPIO_PIN_SET);}else{HAL_GPIO_WritePin(GPIOB, GPIO_PIN_11, GPIO_PIN_RESET);};
  dt=dt<<1;
  wri();
}
HAL_GPIO_WritePin(GPIOB, GPIO_PIN_11, GPIO_PIN_SET);
}
//Set LCD X:0-102 Y:0-3
void setXY(unsigned char pag,unsigned char col){
b2l(0xB0+pag,0);//page
//col+=0x04;//+4-->4bit
b2l(0x12+((col&0x70)>>4),0);//如果反着，0x10+
b2l(col&0x0F,0);//row-L4
}
//LCD Clear
void lcdClear(void){
unsigned char pag,col;
for(pag=0;pag<8;pag++){
  setXY(pag,0);
  for(col=0;col<132;col++){b2l(0x00,1);};
}
}
//c:Char,cha[]
void c2l(unsigned char pag,unsigned char col,unsigned char c){
unsigned char line;
setXY(pag,col*6);//6
for (line=0;line<6;line++)//6
b2l(asc2[c][line],1);
}
//KS0713LCD Initial
void lcdInit(void){
HAL_GPIO_WritePin(GPIOB, GPIO_PIN_2, GPIO_PIN_RESET);
HAL_Delay(10);
HAL_GPIO_WritePin(GPIOB, GPIO_PIN_2, GPIO_PIN_SET);
HAL_Delay(10);
b2l(0xAE,0);//AE=关闭显示/AF=开显示
b2l(0xE2,0);//LCD初始化
b2l(0xA0,0);//刷新行顺序A0=1~132列/A1=132~1
b2l(0xC0,0);//刷新纵顺序C0=1~64行/C8=64~1
b2l(0xA2,0);//A2=1/65=1/7__A3=1/65=1/9速率
b2l(0x2F,0);//电源模式28+VC+VR+VF
HAL_Delay(1);
b2l(0x23,0);//20~27=1.9,2.19,2.55,3.02,3.61,4.35,5.29,6.48V/偏压
HAL_Delay(1);
b2l(0x81,0);//V0电压,后跟参数
b2l(0x2C,0);//000000~111111=0~63=8.83~11.17V/30=10V
HAL_Delay(1);
b2l(0xAD,0);//AC=关闭游标/AD=打开游标
b2l(0x00,0);//跟上00=OFF/01=1S/02=0.5S/03=AllOn
b2l(0xAF,0);//开始显示
HAL_Delay(10);
}
//0713 Display ASCII Test
void dispAsc(void){
int i,j,k=0;
for(i=0;i<4;i++){
  for(j=0;j<16;j++){
c2l(i,j,k);
if(k>39){k=0;}else{k++;}
  }
}
}
//END Files//

main主函数内容如下[许多是自己生成的，还没有改，一些说明在这里删除了，可以减少一点]：
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "stm32f1xx_hal.h"
#include "0713.h"
/* Private variables ---------------------------------------------------------*/
ADC_HandleTypeDef hadc1;
ADC_HandleTypeDef hadc2;
I2C_HandleTypeDef hi2c1;
TIM_HandleTypeDef htim1;
TIM_HandleTypeDef htim2;
TIM_HandleTypeDef htim3;
UART_HandleTypeDef huart1;
WWDG_HandleTypeDef hwwdg;
/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
void Error_Handler(void);
static void MX_GPIO_Init(void);
static void MX_ADC1_Init(void);
static void MX_ADC2_Init(void);
static void MX_I2C1_Init(void);
static void MX_TIM1_Init(void);
static void MX_TIM2_Init(void);
static void MX_TIM3_Init(void);
static void MX_USART1_UART_Init(void);
static void MX_WWDG_Init(void);
void HAL_TIM_MspPostInit(TIM_HandleTypeDef *htim);

uint32_t js;
uint16_t val0,val1,val2,val3,pwmdir0=1,pwmdir1=1,duty,dut0=900,dut1=800,ddu0=3,ddu1=4;

//LED Test Program
void led(void){
if(HAL_GPIO_ReadPin(GPIOB,GPIO_PIN_9)) HAL_GPIO_WritePin(GPIOB,GPIO_PIN_9,GPIO_PIN_RESET);
else HAL_GPIO_WritePin(GPIOB,GPIO_PIN_9,GPIO_PIN_SET);
}
//Display BaseData
void dispBase(void){
c2l(3,0,19);c2l(3,1,28);c2l(3,2,26);c2l(3,3,40);//JSQ:
c2l(2,0,10);c2l(2,1,0);c2l(2,8,10);c2l(2,9,1);//A0A1:
c2l(1,0,25);c2l(1,1,32);c2l(1,2,22);//PWM
c2l(1,8,25);c2l(1,9,32);c2l(1,10,22);//PWM
}
//Disp Meseger
void dispMes(void){
c2l(3,4,(js/100000)%10);c2l(3,5,(js/10000)%10);c2l(3,6,(js/1000)%10);c2l(3,7,(js/100)%10);c2l(3,8,(js/10)%10);c2l(3,9,(js)%10);
c2l(2,3,(val0/1000)%10);c2l(2,4,(val0/100)%10);c2l(2,5,(val0/10)%10);c2l(2,6,(val0)%10);
c2l(2,11,(val1/1000)%10);c2l(2,12,(val1/100)%10);c2l(2,13,(val1/10)%10);c2l(2,14,(val1)%10);
c2l(1,4,(dut0/100)%10);c2l(1,5,(dut0/10)%10);c2l(1,6,(dut0)%10);
c2l(1,12,(dut1/100)%10);c2l(1,13,(dut1/10)%10);c2l(1,14,(dut1)%10);
}
//
int main(void){
/* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();
/* Configure the system clock */
  SystemClock_Config();
/* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_ADC1_Init();
  MX_ADC2_Init();
  MX_I2C1_Init();
  MX_TIM1_Init();
  MX_TIM2_Init();
  MX_TIM3_Init();
  MX_USART1_UART_Init();
  MX_WWDG_Init();
  lcdInit();
  lcdClear();
  dispBase();
  while (1){
js++;
dispMes();
led();
HAL_Delay(10);
  }
}

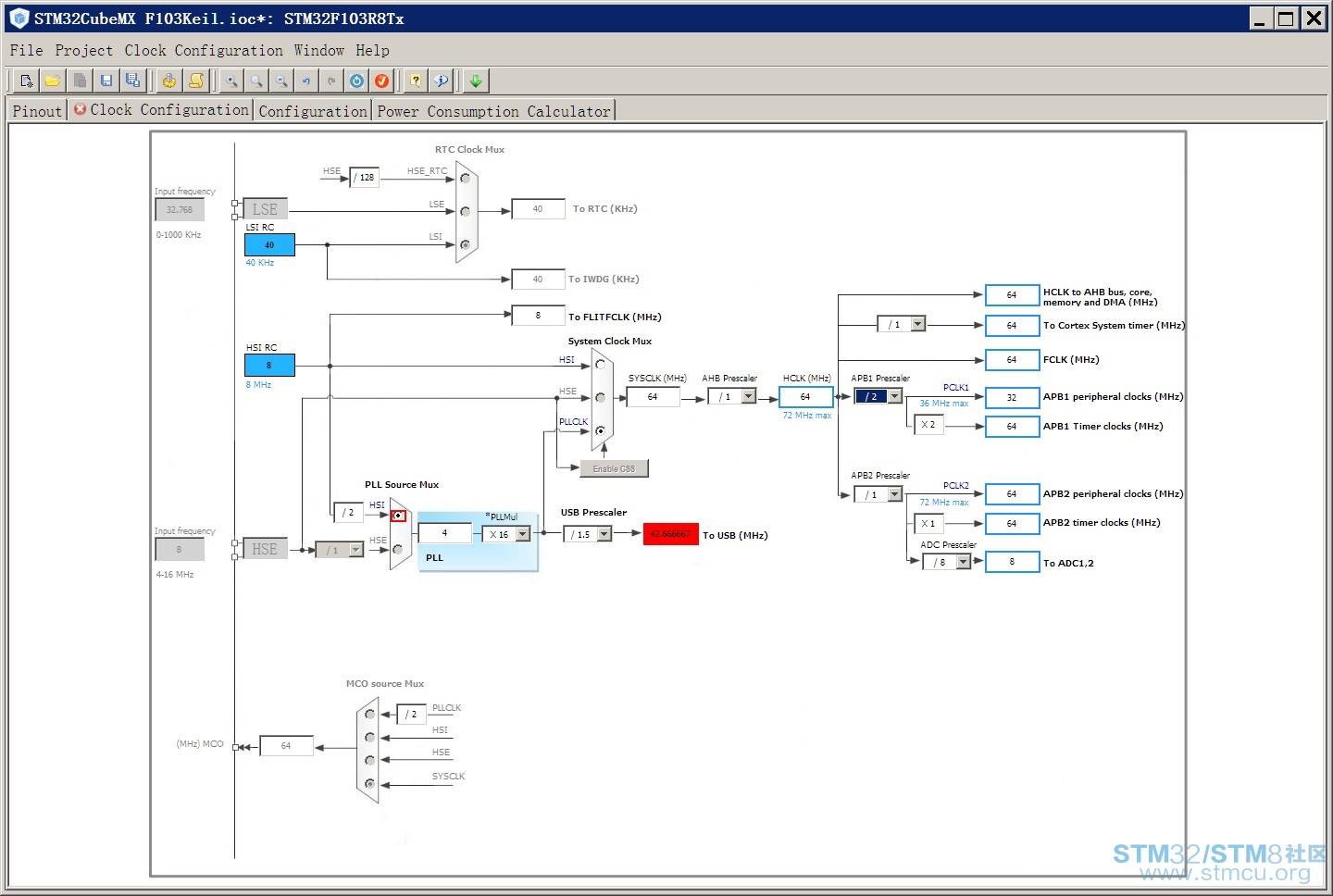

/** System Clock Configuration
*/
void SystemClock_Config(void){
  RCC_OscInitTypeDef RCC_OscInitStruct;
  RCC_ClkInitTypeDef RCC_ClkInitStruct;
  RCC_PeriphCLKInitTypeDef PeriphClkInit;
/**Initializes the CPU, AHB and APB busses clocks */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.HSICalibrationValue = 16;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSI_DIV2;
  RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL16;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK){
Error_Handler();
  }
/**Initializes the CPU, AHB and APB busses clocks */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK|RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;
  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK){
Error_Handler();
  }
  PeriphClkInit.PeriphClockSelection = RCC_PERIPHCLK_ADC;
  PeriphClkInit.AdcClockSelection = RCC_ADCPCLK2_DIV8;
  if (HAL_RCCEx_PeriphCLKConfig(&PeriphClkInit) != HAL_OK){
Error_Handler();
  }
/**Configure the Systick interrupt time*/
  HAL_SYSTICK_Config(HAL_RCC_GetHCLKFreq()/1000);
/**Configure the Systick */
  HAL_SYSTICK_CLKSourceConfig(SYSTICK_CLKSOURCE_HCLK);
/* SysTick_IRQn interrupt configuration */
  HAL_NVIC_SetPriority(SysTick_IRQn, 0, 0);
}
/* ADC1 init function */
static void MX_ADC1_Init(void){
  ADC_ChannelConfTypeDef sConfig;
/**Common config */
  hadc1.Instance = ADC1;
  hadc1.Init.ScanConvMode = ADC_SCAN_DISABLE;
  hadc1.Init.ContinuousConvMode = DISABLE;
  hadc1.Init.DiscontinuousConvMode = DISABLE;
  hadc1.Init.ExternalTrigConv = ADC_SOFTWARE_START;
  hadc1.Init.DataAlign = ADC_DATAALIGN_RIGHT;
  hadc1.Init.NbrOfConversion = 1;
  if (HAL_ADC_Init(&hadc1) != HAL_OK){
Error_Handler();
  }
/**Configure Regular Channel*/
  sConfig.Channel = ADC_CHANNEL_0;
  sConfig.Rank = 1;
  sConfig.SamplingTime = ADC_SAMPLETIME_1CYCLE_5;
  if (HAL_ADC_ConfigChannel(&hadc1, &sConfig) != HAL_OK){
Error_Handler();
  }
}
/* ADC2 init function */
static void MX_ADC2_Init(void){
  ADC_ChannelConfTypeDef sConfig;
/**Common config */
  hadc2.Instance = ADC2;
  hadc2.Init.ScanConvMode = ADC_SCAN_DISABLE;
  hadc2.Init.ContinuousConvMode = DISABLE;
  hadc2.Init.DiscontinuousConvMode = DISABLE;
  hadc2.Init.ExternalTrigConv = ADC_SOFTWARE_START;
  hadc2.Init.DataAlign = ADC_DATAALIGN_RIGHT;
  hadc2.Init.NbrOfConversion = 1;
  if (HAL_ADC_Init(&hadc2) != HAL_OK){
Error_Handler();
  }
/**Configure Regular Channel */
  sConfig.Channel = ADC_CHANNEL_1;
  sConfig.Rank = 1;
  sConfig.SamplingTime = ADC_SAMPLETIME_1CYCLE_5;
  if (HAL_ADC_ConfigChannel(&hadc2, &sConfig) != HAL_OK){
Error_Handler();
  }
}
/* I2C1 init function */
static void MX_I2C1_Init(void){
  hi2c1.Instance = I2C1;
  hi2c1.Init.ClockSpeed = 100000;
  hi2c1.Init.DutyCycle = I2C_DUTYCYCLE_2;
  hi2c1.Init.OwnAddress1 = 0;
  hi2c1.Init.AddressingMode = I2C_ADDRESSINGMODE_7BIT;
  hi2c1.Init.DualAddressMode = I2C_DUALADDRESS_DISABLE;
  hi2c1.Init.OwnAddress2 = 0;
  hi2c1.Init.GeneralCallMode = I2C_GENERALCALL_DISABLE;
  hi2c1.Init.NoStretchMode = I2C_NOSTRETCH_DISABLE;
  if (HAL_I2C_Init(&hi2c1) != HAL_OK){
Error_Handler();
  }
}
/* TIM1 init function */
static void MX_TIM1_Init(void){
  TIM_ClockConfigTypeDef sClockSourceConfig;
  TIM_SlaveConfigTypeDef sSlaveConfig;
  TIM_MasterConfigTypeDef sMasterConfig;
  TIM_OC_InitTypeDef sConfigOC;
  TIM_BreakDeadTimeConfigTypeDef sBreakDeadTimeConfig;
  htim1.Instance = TIM1;
  htim1.Init.Prescaler = 0;
  htim1.Init.CounterMode = TIM_COUNTERMODE_UP;
  htim1.Init.Period = 0;
  htim1.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
  htim1.Init.RepetitionCounter = 0;
  if (HAL_TIM_Base_Init(&htim1) != HAL_OK){
Error_Handler();
  }
  sClockSourceConfig.ClockSource = TIM_CLOCKSOURCE_INTERNAL;
  if (HAL_TIM_ConfigClockSource(&htim1, &sClockSourceConfig) != HAL_OK){
Error_Handler();
  }
  if (HAL_TIM_OC_Init(&htim1) != HAL_OK){
Error_Handler();
  }
  sSlaveConfig.SlaveMode = TIM_SLAVEMODE_DISABLE;
  sSlaveConfig.InputTrigger = TIM_TS_ITR0;
  if (HAL_TIM_SlaveConfigSynchronization(&htim1, &sSlaveConfig) != HAL_OK){
Error_Handler();
  }
  sMasterConfig.MasterOutputTrigger = TIM_TRGO_RESET;
  sMasterConfig.MasterSlaveMode = TIM_MASTERSLAVEMODE_DISABLE;
  if (HAL_TIMEx_MasterConfigSynchronization(&htim1, &sMasterConfig) != HAL_OK){
Error_Handler();
  }
  sConfigOC.OCMode = TIM_OCMODE_TIMING;
  sConfigOC.Pulse = 0;
  sConfigOC.OCPolarity = TIM_OCPOLARITY_HIGH;
  sConfigOC.OCNPolarity = TIM_OCNPOLARITY_HIGH;
  sConfigOC.OCFastMode = TIM_OCFAST_DISABLE;
  sConfigOC.OCIdleState = TIM_OCIDLESTATE_RESET;
  sConfigOC.OCNIdleState = TIM_OCNIDLESTATE_RESET;
  if (HAL_TIM_OC_ConfigChannel(&htim1, &sConfigOC, TIM_CHANNEL_1) != HAL_OK){
Error_Handler();
  }
  sBreakDeadTimeConfig.OffStateRunMode = TIM_OSSR_DISABLE;
  sBreakDeadTimeConfig.OffStateIDLEMode = TIM_OSSI_DISABLE;
  sBreakDeadTimeConfig.LockLevel = TIM_LOCKLEVEL_OFF;
  sBreakDeadTimeConfig.DeadTime = 0;
  sBreakDeadTimeConfig.BreakState = TIM_BREAK_DISABLE;
  sBreakDeadTimeConfig.BreakPolarity = TIM_BREAKPOLARITY_HIGH;
  sBreakDeadTimeConfig.AutomaticOutput = TIM_AUTOMATICOUTPUT_DISABLE;
  if (HAL_TIMEx_ConfigBreakDeadTime(&htim1, &sBreakDeadTimeConfig) != HAL_OK){
Error_Handler();
  }
}
/* TIM2 init function */
static void MX_TIM2_Init(void){
  TIM_SlaveConfigTypeDef sSlaveConfig;
  TIM_MasterConfigTypeDef sMasterConfig;
  htim2.Instance = TIM2;
  htim2.Init.Prescaler = 0;
  htim2.Init.CounterMode = TIM_COUNTERMODE_UP;
  htim2.Init.Period = 0;
  htim2.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
  if (HAL_TIM_Base_Init(&htim2) != HAL_OK)  {
Error_Handler();
  }
  sSlaveConfig.SlaveMode = TIM_SLAVEMODE_EXTERNAL1;
  sSlaveConfig.InputTrigger = TIM_TS_ETRF;
  sSlaveConfig.TriggerPolarity = TIM_TRIGGERPOLARITY_NONINVERTED;
  sSlaveConfig.TriggerPrescaler = TIM_TRIGGERPRESCALER_DIV1;
  sSlaveConfig.TriggerFilter = 0;
  if (HAL_TIM_SlaveConfigSynchronization(&htim2, &sSlaveConfig) != HAL_OK){
Error_Handler();
  }
  sMasterConfig.MasterOutputTrigger = TIM_TRGO_RESET;
  sMasterConfig.MasterSlaveMode = TIM_MASTERSLAVEMODE_DISABLE;
  if (HAL_TIMEx_MasterConfigSynchronization(&htim2, &sMasterConfig) != HAL_OK){
Error_Handler();
  }
}
/* TIM3 init function */
static void MX_TIM3_Init(void){
  TIM_SlaveConfigTypeDef sSlaveConfig;
  TIM_MasterConfigTypeDef sMasterConfig;
  TIM_OC_InitTypeDef sConfigOC;
  htim3.Instance = TIM3;
  htim3.Init.Prescaler = 0;
  htim3.Init.CounterMode = TIM_COUNTERMODE_UP;
  htim3.Init.Period = 0;
  htim3.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
  if (HAL_TIM_Base_Init(&htim3) != HAL_OK){
Error_Handler();
  }
  if (HAL_TIM_PWM_Init(&htim3) != HAL_OK){
Error_Handler();
  }
  sSlaveConfig.SlaveMode = TIM_SLAVEMODE_EXTERNAL1;
  sSlaveConfig.InputTrigger = TIM_TS_ITR1;
  if (HAL_TIM_SlaveConfigSynchronization(&htim3, &sSlaveConfig) != HAL_OK){
Error_Handler();
  }
  sMasterConfig.MasterOutputTrigger = TIM_TRGO_RESET;
  sMasterConfig.MasterSlaveMode = TIM_MASTERSLAVEMODE_DISABLE;
  if (HAL_TIMEx_MasterConfigSynchronization(&htim3, &sMasterConfig) != HAL_OK){
Error_Handler();
  }
  sConfigOC.OCMode = TIM_OCMODE_PWM1;
  sConfigOC.Pulse = 0;
  sConfigOC.OCPolarity = TIM_OCPOLARITY_HIGH;
  sConfigOC.OCFastMode = TIM_OCFAST_DISABLE;
  if (HAL_TIM_PWM_ConfigChannel(&htim3, &sConfigOC, TIM_CHANNEL_1) != HAL_OK){
Error_Handler();
  }
  if (HAL_TIM_PWM_ConfigChannel(&htim3, &sConfigOC, TIM_CHANNEL_2) != HAL_OK){
Error_Handler();
  }
  HAL_TIM_MspPostInit(&htim3);
}
/* USART1 init function */
static void MX_USART1_UART_Init(void){
  huart1.Instance = USART1;
  huart1.Init.BaudRate = 115200;
  huart1.Init.WordLength = UART_WORDLENGTH_8B;
  huart1.Init.StopBits = UART_STOPBITS_1;
  huart1.Init.Parity = UART_PARITY_NONE;
  huart1.Init.Mode = UART_MODE_TX_RX;
  huart1.Init.HwFlowCtl = UART_HWCONTROL_NONE;
  huart1.Init.OverSampling = UART_OVERSAMPLING_16;
  if (HAL_MultiProcessor_Init(&huart1, 0, UART_WAKEUPMETHOD_IDLELINE) != HAL_OK){
Error_Handler();
  }
}
/* WWDG init function */
static void MX_WWDG_Init(void){
  hwwdg.Instance = WWDG;
  hwwdg.Init.Prescaler = WWDG_PRESCALER_1;
  hwwdg.Init.Window = 64;
  hwwdg.Init.Counter = 64;
  if (HAL_WWDG_Init(&hwwdg) != HAL_OK){
Error_Handler();
  }
}

static void MX_GPIO_Init(void){
  GPIO_InitTypeDef GPIO_InitStruct;
  /* GPIO Ports Clock Enable */
  __HAL_RCC_GPIOD_CLK_ENABLE();
  __HAL_RCC_GPIOA_CLK_ENABLE();
  __HAL_RCC_GPIOB_CLK_ENABLE();
  /*Configure GPIO pin Output Level */
  HAL_GPIO_WritePin(GPIOB, GPIO_PIN_0|GPIO_PIN_1|GPIO_PIN_2|GPIO_PIN_9|GPIO_PIN_10|GPIO_PIN_11, GPIO_PIN_RESET);
/*Configure GPIO pins : PD0 PD1 */
  GPIO_InitStruct.Pin = GPIO_PIN_0|GPIO_PIN_1;
  GPIO_InitStruct.Mode = GPIO_MODE_IT_RISING;
  GPIO_InitStruct.Pull = GPIO_NOPULL;
  HAL_GPIO_Init(GPIOD, &GPIO_InitStruct);
/*Configure GPIO pins : PB0 PB1 PB2 PB_9 PB10 PB11 */
  GPIO_InitStruct.Pin = GPIO_PIN_0|GPIO_PIN_1|GPIO_PIN_2|GPIO_PIN_9|GPIO_PIN_10|GPIO_PIN_11;
  GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
  HAL_GPIO_Init(GPIOB, &GPIO_InitStruct);
/*Configure peripheral I/O remapping */
  __HAL_AFIO_REMAP_PD01_ENABLE();
}

void Error_Handler(void){
  /* USER CODE BEGIN Error_Handler */
  /* User can add his own implementation to report the HAL error return state */
  while(1){
  }
  /* USER CODE END Error_Handler */
}

#ifdef USE_FULL_ASSERT

void assert_failed(uint8_t* file, uint32_t line){
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}

#endif

小开发板没有下载仿真接口，只能借助于其他STM开发板的SWD下载程序，下载前还需要按下Reset键，硬件连接见照片13。编译下载后的结果见照片14。

11-SysClockè®¾ç½®
