（一）模式设置
ESP8266有两种模式，AP和Station。可设置为AP、Station、AP&Station三种工作模式。
AP模式：无线接入点，例如路由器。
Station：AP的Client模式，例如手机连接路由器，手机就是Station模式。

1、AP模式设置
设置为AP模式：
AT+AT+CWMODE_DEF=2

设置WIFI名、密码、通道、加密方式、最大连接数：
AT+CWSAP_DEF="esp8266-ap","1234567890",5,3,1

设置WIFI的IP地址、网关、掩码：
AT+CIPAP_DEF="192.168.166.4.1","192.168.4.1","255.255.255.0"

重启使配置生效（选做，如果命令不带DEF字样，此步骤不需要）：
AT+RST

开启WIFI多连接：
AT+CIPMUX=1

开启WIFI服务器：
AT+CIPSERVER=1

AP模式ESP8266数据接收并解析：

void WIFI_APModeRecvHanler(void)
{
if (WIFI_RX_STA & 0x8000)
{
char* start = NULL;
const char* header = "+IPD,0,";
if ((start = strstr((const char *) WIFI_RX_BUF, header)) != NULL)
{
if ((start = strstr((const char *) start, ":")) != NULL)
{
uint32_t datalen = WIFI_RX_STA & 0x3FFF;
const uint8_t* dataptr = (uint8_t *) (start + 1);
WIFI_RX_BUF[datalen] = '\0';
printf("tcp:%s\r\n", dataptr);
}
}
WIFI_RX_STA = 0;
}
}

复制代码

2、Station模式与透传
设置为Station模式：
AT+CWMODE_DEF=1

加入路由器：
AT+CWJAP_DEF="路由器WIFI名","密码"

重启配置生效（不带DEF字样，此步骤不需要）：
AT+RST

关闭多连接（多连接模式关闭才能开启透传）：
AT+CIPMUX=0

设置为透传模式：
AT+CIPMODE=1

连接到服务器：
AT+CIPSTART="TCP","服务器IP地址",服务器端口号

进入透传模式：
AT+CIPSEND

退出透传模式（不加回车）：
+++

（二）固件更新

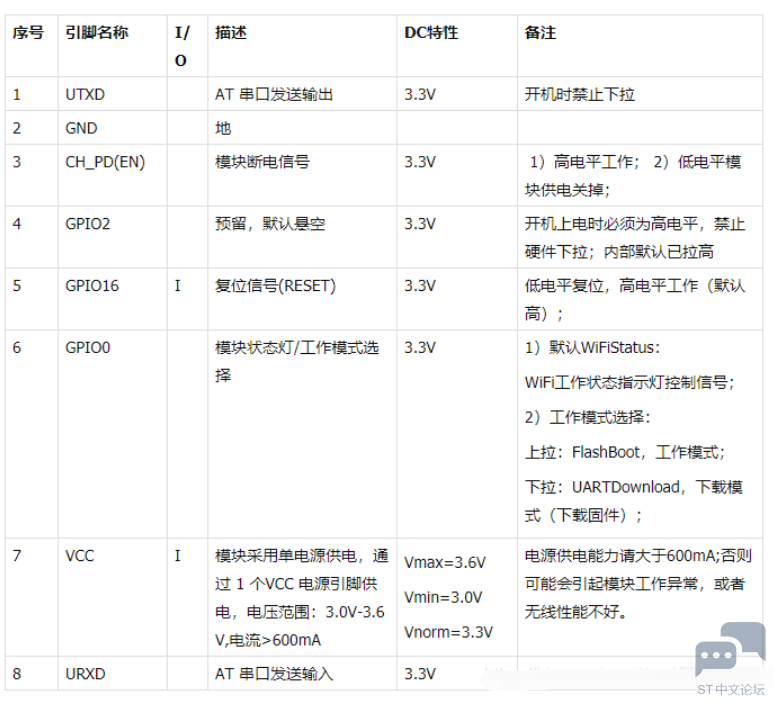

ESP8266-01S引脚说明：

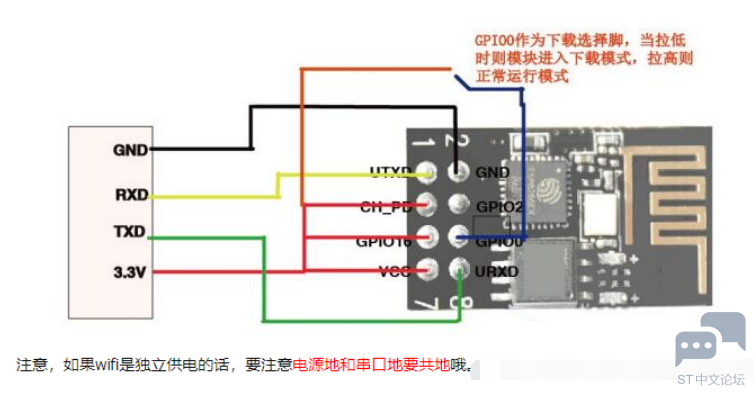

所以ESP8266-01S刷机需要将GPIO0拉低，接线图如下：

${XQZ[4B8CQW_RZZH00I{6MX.png$
注意：如果点击start后，一直处于等待上电同步，需要我们拉低一下复位引脚，或者直接断电再上电。

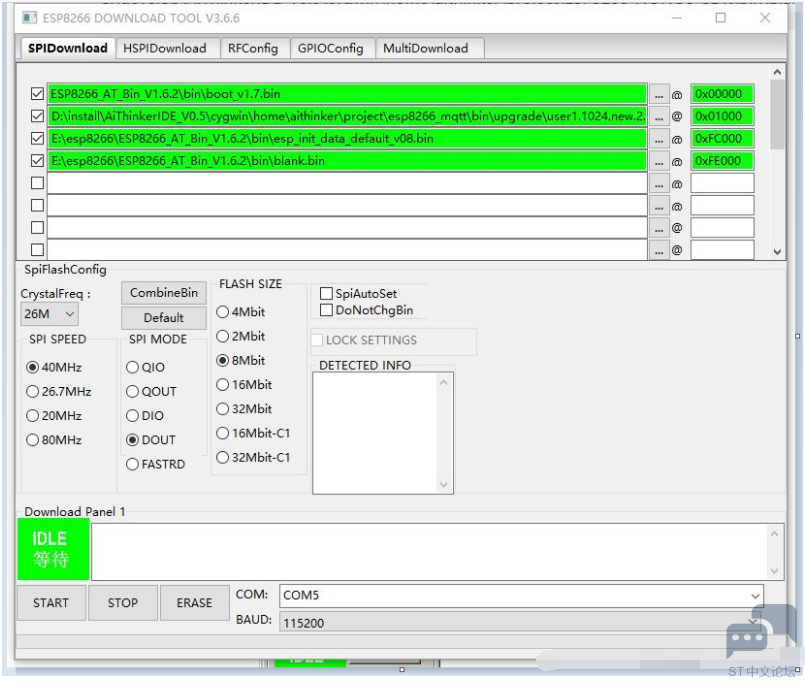

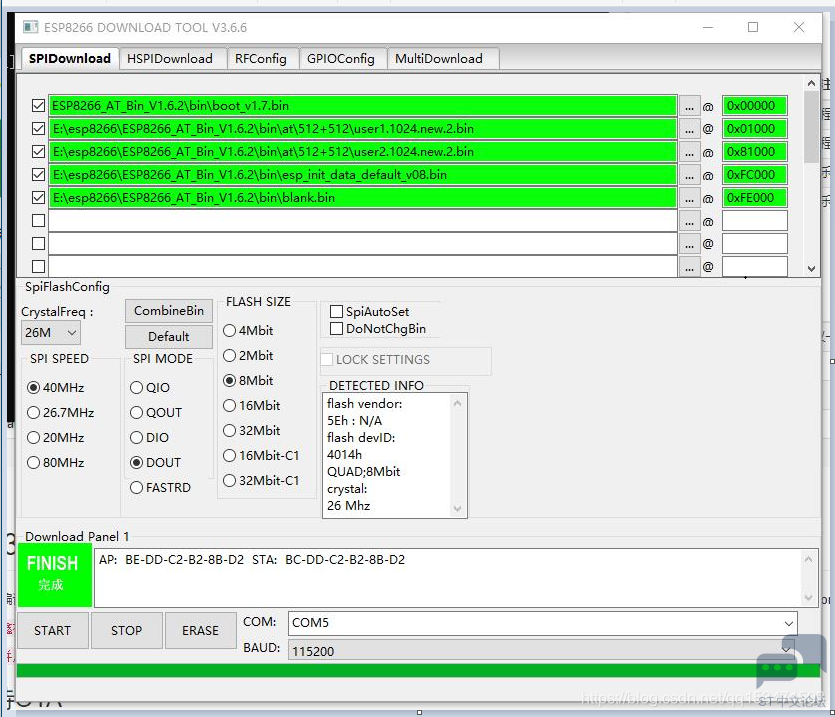

刷AT固件配置：

刷MQTT固件配置：


（三）STM32移植MQTT
平台：战舰mini板(stm32f03rb)
软件版本：STM32CUBEMX V5.3、TrueSTUDIO V9.3
MQTT服务器：emqx
效果：stm32订阅主题led_control，数据为on和off，以此来控制mini板上的led灯。

注意：ESP8266需要首先初始化为Station模式并进入透传。

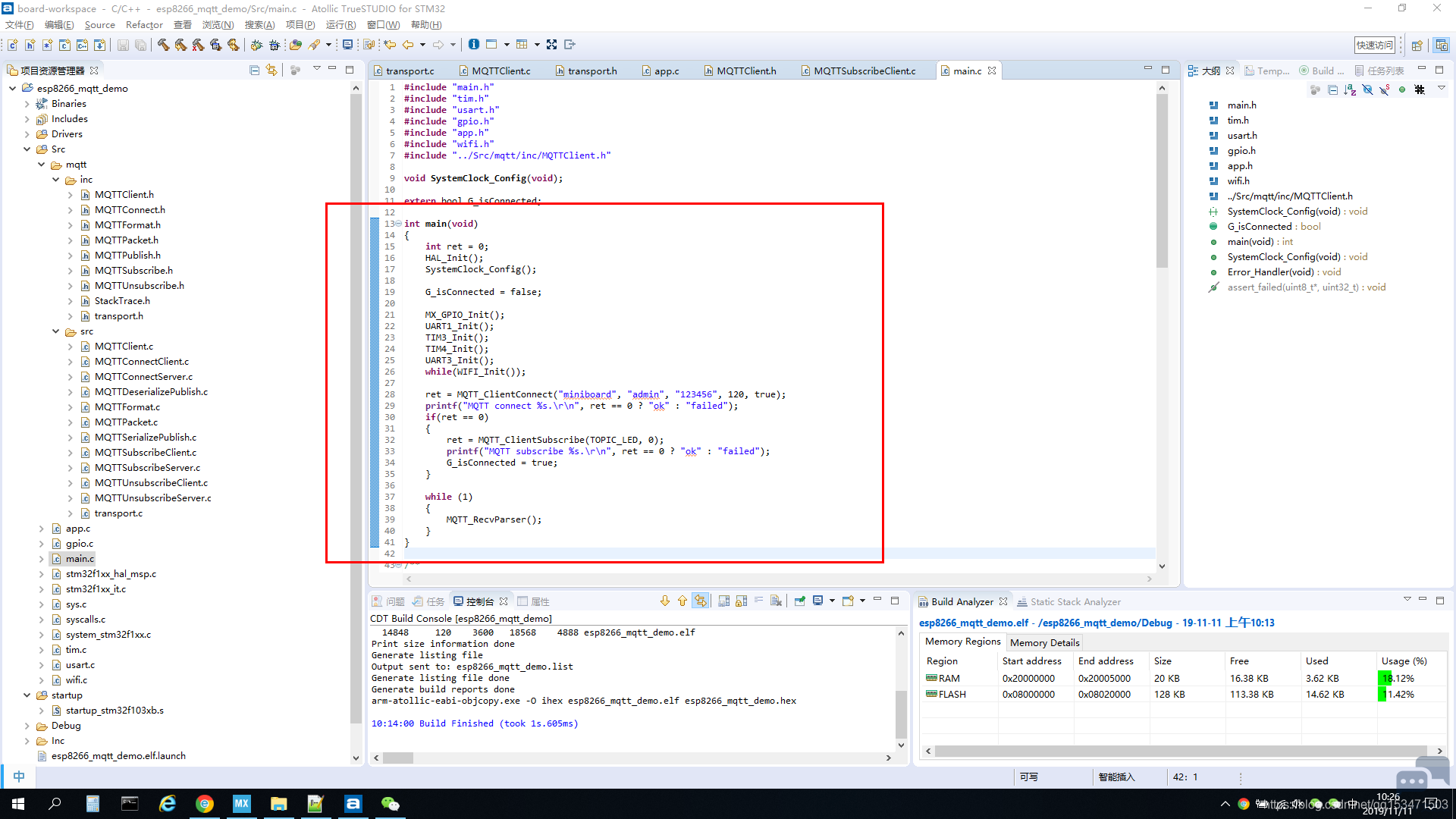

嵌入式移植工作比较简单，只需要修改transport文件的硬件驱动读写函数即可，打开和关闭

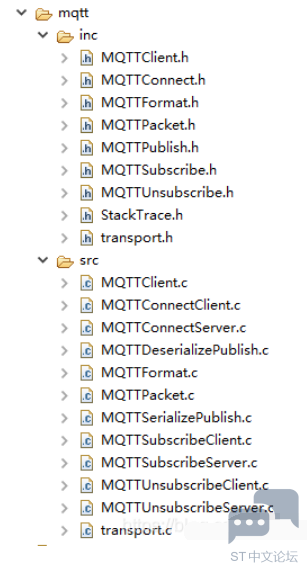

函数暂时不需要。MQTTClient.c和MQTTClient.h文件是我自己编写，可根据需要自行修改。完整目录如下图所示：


transport.c

#include "../inc/transport.h"
#include "../Inc/usart.h"
#include "../Inc/main.h"
#include "../Inc/app.h"
int transport_sendPacketBuffer(unsigned char* buf, int buflen)
{
if (HAL_UART_Transmit(&huart3, (uint8_t *) buf, buflen, 0xFFFF) == HAL_OK)
return buflen;
return 0;
}
int transport_getdata(unsigned char* buf, int count)
{
static uint32_t index = 0;
uint32_t datalen = WIFI_RX_STA & 0x3FFF;
if (WIFI_RX_STA & 0x8000)
{
if(datalen >= count)
{
memcpy(buf, WIFI_RX_BUF + index, count);
index += count;
if(index == datalen)
{
WIFI_RX_STA = 0;
index = 0;
}
return count;
}
}
return 0;
}

复制代码

MQTTClient.c

/*
* MQTTClient.c
*
* Created on:
* Author:
*/
#include "../inc/MQTTClient.h"
#include "../Inc/app.h"
uint8_t MQTT_ClientConnect(const void* clientId, const void* username, const void* password, uint16_t keepalive, bool cleansession)
{
int len = 0;
int buflen = 256;
uint8_t buf[256];
uint8_t sessionPresent, connack_rc;
MQTTPacket_connectData data = MQTTPacket_connectData_initializer;
data.clientID.cstring = (char *) clientId;
data.keepAliveInterval = keepalive;
data.cleansession = cleansession;
data.username.cstring = (char *) username;
data.password.cstring = (char *) password;
data.MQTTVersion = 4;
if ((len = MQTTSerialize_connect((unsigned char *) buf, buflen, &data)) <= 0)
return 1;
WIFI_RX_STA = 0;
if (transport_sendPacketBuffer(buf, len) != len)
return 2;
delay_ms(1000);
if (MQTTPacket_read(buf, buflen, transport_getdata) != CONNACK)
return 3;
if (MQTTDeserialize_connack(&sessionPresent, &connack_rc, buf, buflen) != 1 || connack_rc != 0)
return 4;
return 0;
}
uint8_t MQTT_ClientPublish(const void* topic, const void* data)
{
uint8_t buf[256];
MQTTString topicString = MQTTString_initializer;
int len = 0;
topicString.cstring = (char *) topic;
if ((len = MQTTSerialize_publish((uint8_t *) buf, sizeof(buf), 0, 0, 0, 0,
topicString, (uint8_t*) data, strlen((const char*) data))) <= 0)
return 1;
if (transport_sendPacketBuffer(buf, len) != len)
return 2;
return 0;
}
uint8_t MQTT_ClientSubscribe(const void* topic, int qos)
{
uint8_t buf[200] =
{ 0 };
uint32_t buflen = sizeof(buf);
uint32_t len = 0;
uint16_t packetid;
int maxcount = 1;
int count;
int grantedQoSs;
MQTTString topicString = MQTTString_initializer;
topicString.cstring = (char *) topic;
if ((len = MQTTSerialize_subscribe(buf, buflen, 0, 1, 1, &topicString, &qos)) <= 0)
return 1;
WIFI_RX_STA = 0;
if (transport_sendPacketBuffer(buf, len) != len)
return 2;
delay_ms(1000);
if (MQTTPacket_read(buf, buflen, transport_getdata) != SUBACK)
return 3;
if (MQTTDeserialize_suback(&packetid, maxcount, &count, &grantedQoSs, buf, buflen) == 0)
return 4;
return 0;
}
extern bool G_isConnected;
void MQTT_RecvParser(void)
{
size_t topiclen = 0;
size_t datalen = 0;
static uint8_t topic[0xFF];
static uint8_t message[0xFF];
static const uint8_t* buf = WIFI_RX_BUF;
if(G_isConnected == true)
{
if (WIFI_RX_STA & 0x8000)
{
WIFI_RX_BUF[WIFI_RX_STA & 0x3FFF] = '\0';
if(strstr((char *)WIFI_RX_BUF, "CLOSED") != 0)
{
G_isConnected = false;
WIFI_RX_STA = 0;
return;
}
topiclen = buf[3];
datalen = buf[1] - buf[3] - 2;
memcpy((char *) topic, (const char *) (buf + 4), topiclen);
memcpy((char *) message, (const char *) (buf + 4 + topiclen), datalen);
topic[topiclen] = '\0';
message[datalen] = '\0';
if(strncmp(TOPIC_LED, (const char *)topic, strlen(TOPIC_LED)) == 0)
{
if(strncmp(MSG_LED_ON, (const char *)message, strlen(MSG_LED_ON)) == 0)
{
HAL_GPIO_WritePin(LED1_GPIO_Port, LED1_Pin, GPIO_PIN_RESET);
}else if(strncmp(MSG_LED_OFF, (const char *)message, strlen(MSG_LED_OFF)) == 0){
HAL_GPIO_WritePin(LED1_GPIO_Port, LED1_Pin, GPIO_PIN_SET);
}
}
printf("\r\n");
printf("topic:%s\r\ndara:%s\r\n", (char *) topic, (char *) message);
WIFI_RX_STA = 0;
}
}
}
