AI工具训练营-用ChatGPT解决HID Keyboard实现的问题

[复制链接]
cm32 发布时间：2025-12-17 22:54

把话说在前头：CubeMX的Human Interface Device Class只支持HID配置为鼠标，要配置为键盘必须修改库文件。 我遇到的问题是尝试使用F072的USB-HID功能，想要作为键盘使用，但是事与愿违，按下按键时是鼠标动了。问了GPT之后也是成功把问题解决了。 最开始我以为是配置的问题，但是没找到配置“鼠标”或者是“键盘”的选项，于是问了GPT： 7d03ceef-5945-4808-abbd-d3fbb1119eb7.png

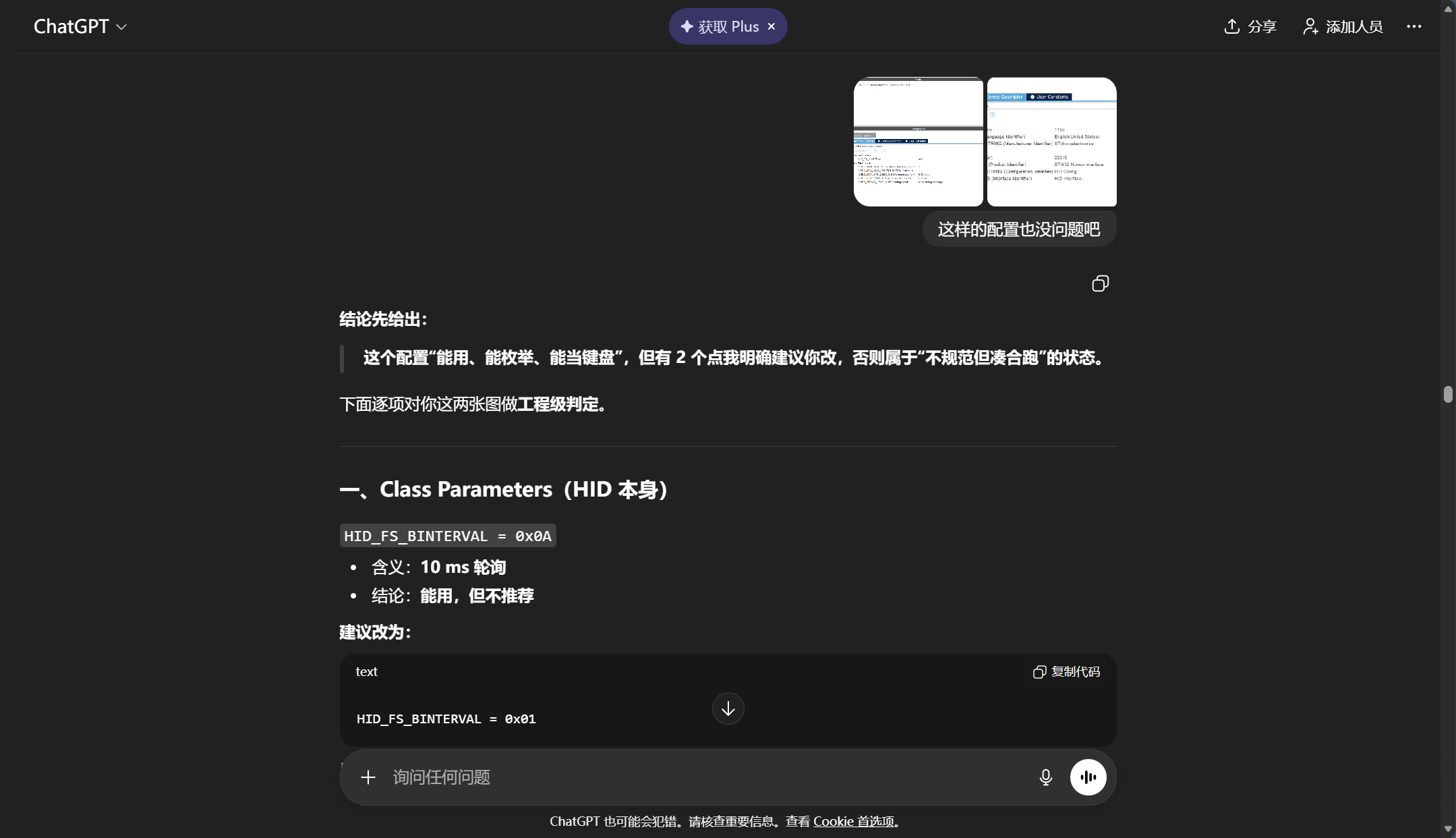

我：这样的配置也没问题吧

GPT：结论先给出：

这个配置“能用、能枚举、能当键盘”，但有 2 个点我明确建议你改，否则属于“不规范但凑合跑”的状态。

下面逐项对你这两张图做工程级判定 。

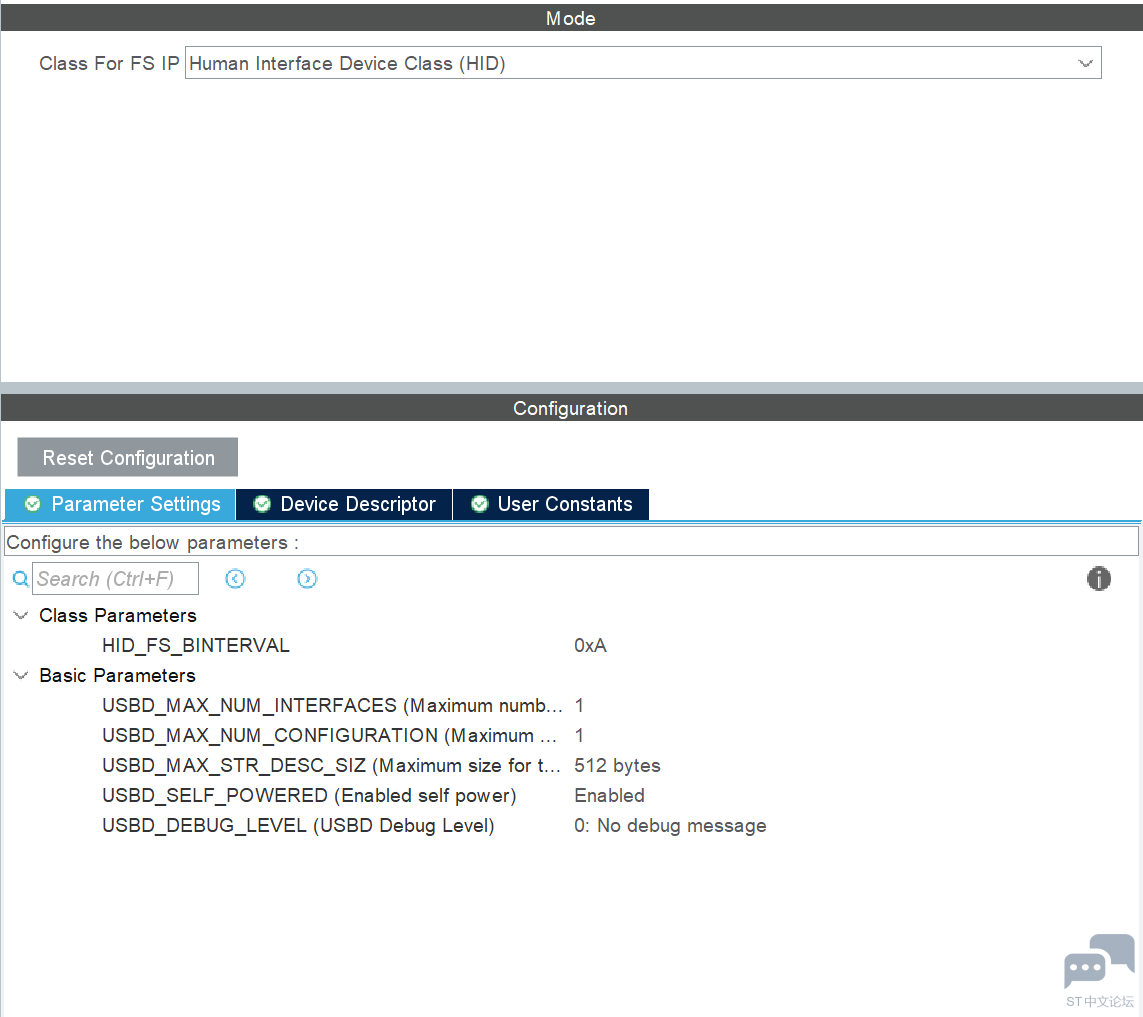

一、Class Parameters（HID 本身）

HID_FS_BINTERVAL = 0x0A

  • 含义：10 ms 轮询
  • 结论：能用，但不推荐

建议改为：

<pre class="overflow-visible! px-0!" data-start="205" data-end="240"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-text"><span><span>HID_FS_BINTERVAL = 0x01 </span></span></code></div></div></pre>

原因：

  • HID Keyboard 的典型值就是 1 ms
  • 延迟更低
  • 对 STM32F073 完全无压力
  • 各操作系统兼容性最好

📌 不是致命问题，但这是“规范值”

二、Basic Parameters（这里有一个必须说清楚的点）

1️⃣ USBD_SELF_POWERED = Enabled ⚠

这是你当前配置里唯一“概念上不对”的地方 。

这个选项的真实含义是：

“设备不是靠 USB 供电，而是有自己的电源 ”

而你的情况是：

  • F072B-DISCO
  • 插 USB 线供电
  • 没有独立外部电源

👉 严格来说，这里应该是：

<pre class="overflow-visible! px-0!" data-start="569" data-end="608"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-text"><span><span>USBD_SELF_POWERED = Disable </span></span></code></div></div></pre>

⚠ 现在这样：

  • 大概率仍然能正常工作
  • 但 USB 描述符是“说谎的”
  • 在严格 USB Host / Hub 场景下可能被标记为不规范设备

📌 强烈建议改掉

2️⃣ 其他 Basic 参数

这些都 完全没问题 ：

参数 判定
USBD_MAX_NUM_INTERFACES = 1 ✅
USBD_MAX_NUM_CONFIGURATION = 1 ✅
USBD_MAX_STR_DESC_SIZ = 512 ✅
USBD_DEBUG_LEVEL = 0 ✅

三、Device Descriptor（第二张图）

1️⃣ VID / PID

  • VID = 1155（ST 官方 VID）
  • PID = 22315

✅ 用于学习 / 实验完全没问题

⚠ 注意：

  • 商业产品不能用
  • 实验 / 课程 / 个人项目 OK

2️⃣ 字符串描述符

<pre class="overflow-visible! px-0!" data-start="1093" data-end="1175"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-text"><span><span>Manufacturer : STMicroelectronics Product : STM32 Human interface </span></span></code></div></div></pre>

✅ 全部 OK

只影响设备管理器显示，不影响功能。

四、综合判定（你问“有没有问题”）

✔ 能不能用？

能，用来做 PA0 → CTRL+C 完全没问题

❌ 有没有“不推荐的地方”？

有两个：

  1. HID_FS_BINTERVAL = 0x0A → 建议 0x01
  2. USBD_SELF_POWERED = Enabled → 建议 Disable

五、我给你的“推荐最终配置”（照着改）

<pre class="overflow-visible! px-0!" data-start="1421" data-end="1505"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-text"><span><span>HID_FS_BINTERVAL = 0x01 USBD_SELF_POWERED = Disable 其余全部保持默认 </span></span></code></div></div></pre>

六、一句话工程结论

**你这套配置已经是“正确方向 + 80 分状态”，

把上面两个点一改，就是“规范、稳定、无坑”的 HID 键盘配置。**

你现在这个进度非常好，下一步再做：

  • 多个按键 → 不同组合键
  • 或切回 HID + Custom HID 复合设备

都会很顺。

只能说杯水车薪，完全没有效果。

于是继续追问：

是不是发送的数据有问题，动作不是复制动作，而是鼠标往下移动点击

结论先给出（非常关键）：

**不是 PA0 或 USB 配置问题，而是——

你现在发送的“键盘数据”，被主机当成了“鼠标报告”。**

所以电脑看到的不是 Ctrl + C ，而是

👉 鼠标移动 / 点击 。

一、为什么会出现“发键盘，电脑却当鼠标”的现象？

这是 HID 最经典、也最容易踩的坑 。

根本原因只有一个：

你工程里当前使用的 HID Report Descriptor ≠ 键盘描述符

而是 鼠标（Mouse）描述符 。

二、现象 ↔ 原因 一一对应

现象 实际原因
鼠标往下移动 你发的0x01 / 0x06 被当成 X/Y 位移
发生点击 Byte0 被当成Mouse Button
完全不像键盘 因为系统认为你是HID Mouse

👉 HID 是“描述符决定语义”，不是你代码决定语义

三、你现在的工程“很可能是这样”的状态

在 usbd_hid.c 或 usbd_hid_if.c 中，你的 Report Descriptor 很可能是：

<pre class="overflow-visible! px-0!" data-start="569" data-end="756"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span><span class="hljs-comment">// Mouse Report Descriptor（CubeMX 默认很常见）</span></span><span> </span><span><span class="hljs-number">0x05</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-comment">// Usage Page (Generic Desktop)</span></span><span> </span><span><span class="hljs-number">0x09</span></span><span>, </span><span><span class="hljs-number">0x02</span></span><span>, </span><span><span class="hljs-comment">// Usage (Mouse)</span></span><span> </span><span><span class="hljs-number">0xA1</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-comment">// Collection (Application)</span></span><span> ... </span></span></code></div></div></pre>

👉 而不是 Keyboard

四、立刻验证（30 秒就能确认）

打开文件：

<pre class="overflow-visible! px-0!" data-start="816" data-end="849"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre!"><span><span>USB_DEVICE/App/usbd_hid.c </span></span></code></div></div></pre>

或

<pre class="overflow-visible! px-0!" data-start="854" data-end="890"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre!"><span><span>USB_DEVICE/App/usbd_hid_if.c </span></span></code></div></div></pre>

找到类似：

<pre class="overflow-visible! px-0!" data-start="899" data-end="980"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span>__ALIGN_BEGIN </span><span><span class="hljs-type">static</span></span><span> </span><span><span class="hljs-type">uint8_t</span></span><span> HID_ReportDesc[] __ALIGN_END = { ... }; </span></span></code></div></div></pre>

看这两行之一：

❌ 如果你看到的是：

<pre class="overflow-visible! px-0!" data-start="1011" data-end="1033"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span>Usage (Mouse) </span></span></code></div></div></pre>

那就是 鼠标

✅ 键盘必须是：

<pre class="overflow-visible! px-0!" data-start="1061" data-end="1086"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span>Usage (Keyboard) </span></span></code></div></div></pre>

五、正确的「键盘 HID Report Descriptor」（标准版）

你现在必须确保你的工程用的是这个，而不是 Mouse。

<pre class="overflow-visible! px-0!" data-start="1167" data-end="2049"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span>__ALIGN_BEGIN </span><span><span class="hljs-type">static</span></span><span> </span><span><span class="hljs-type">uint8_t</span></span><span> HID_ReportDesc[] __ALIGN_END = { </span><span><span class="hljs-number">0x05</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-comment">// Usage Page (Generic Desktop)</span></span><span> </span><span><span class="hljs-number">0x09</span></span><span>, </span><span><span class="hljs-number">0x06</span></span><span>, </span><span><span class="hljs-comment">// Usage (Keyboard)</span></span><span> </span><span><span class="hljs-number">0xA1</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-comment">// Collection (Application)</span></span><span> </span><span><span class="hljs-number">0x05</span></span><span>, </span><span><span class="hljs-number">0x07</span></span><span>, </span><span><span class="hljs-comment">// Usage Page (Key Codes)</span></span><span> </span><span><span class="hljs-number">0x19</span></span><span>, </span><span><span class="hljs-number">0xE0</span></span><span>, </span><span><span class="hljs-comment">// Usage Minimum (224)</span></span><span> </span><span><span class="hljs-number">0x29</span></span><span>, </span><span><span class="hljs-number">0xE7</span></span><span>, </span><span><span class="hljs-comment">// Usage Maximum (231)</span></span><span> </span><span><span class="hljs-number">0x15</span></span><span>, </span><span><span class="hljs-number">0x00</span></span><span>, </span><span><span class="hljs-number">0x25</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-number">0x75</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-number">0x95</span></span><span>, </span><span><span class="hljs-number">0x08</span></span><span>, </span><span><span class="hljs-number">0x81</span></span><span>, </span><span><span class="hljs-number">0x02</span></span><span>, </span><span><span class="hljs-comment">// Input (Data, Variable, Absolute) ; Modifier</span></span><span> </span><span><span class="hljs-number">0x95</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-number">0x75</span></span><span>, </span><span><span class="hljs-number">0x08</span></span><span>, </span><span><span class="hljs-number">0x81</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-comment">// Input (Constant) ; Reserved</span></span><span> </span><span><span class="hljs-number">0x95</span></span><span>, </span><span><span class="hljs-number">0x05</span></span><span>, </span><span><span class="hljs-number">0x75</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-number">0x05</span></span><span>, </span><span><span class="hljs-number">0x08</span></span><span>, </span><span><span class="hljs-number">0x19</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-number">0x29</span></span><span>, </span><span><span class="hljs-number">0x05</span></span><span>, </span><span><span class="hljs-number">0x91</span></span><span>, </span><span><span class="hljs-number">0x02</span></span><span>, </span><span><span class="hljs-comment">// Output (LEDs)</span></span><span> </span><span><span class="hljs-number">0x95</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-number">0x75</span></span><span>, </span><span><span class="hljs-number">0x03</span></span><span>, </span><span><span class="hljs-number">0x91</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-comment">// Output (Constant)</span></span><span> </span><span><span class="hljs-number">0x95</span></span><span>, </span><span><span class="hljs-number">0x06</span></span><span>, </span><span><span class="hljs-number">0x75</span></span><span>, </span><span><span class="hljs-number">0x08</span></span><span>, </span><span><span class="hljs-number">0x15</span></span><span>, </span><span><span class="hljs-number">0x00</span></span><span>, </span><span><span class="hljs-number">0x25</span></span><span>, </span><span><span class="hljs-number">0x65</span></span><span>, </span><span><span class="hljs-number">0x05</span></span><span>, </span><span><span class="hljs-number">0x07</span></span><span>, </span><span><span class="hljs-number">0x19</span></span><span>, </span><span><span class="hljs-number">0x00</span></span><span>, </span><span><span class="hljs-number">0x29</span></span><span>, </span><span><span class="hljs-number">0x65</span></span><span>, </span><span><span class="hljs-number">0x81</span></span><span>, </span><span><span class="hljs-number">0x00</span></span><span>, </span><span><span class="hljs-comment">// Input (Data, Array)</span></span><span> </span><span><span class="hljs-number">0xC0</span></span><span> }; </span></span></code></div></div></pre>

六、为什么你“发的代码看起来没问题，但行为完全错”

你发的是：

<pre class="overflow-visible! px-0!" data-start="2093" data-end="2160"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span>hid_report[</span><span><span class="hljs-number">0</span></span><span>] = </span><span><span class="hljs-number">0x01</span></span><span>; </span><span><span class="hljs-comment">// CTRL</span></span><span> hid_report[</span><span><span class="hljs-number">2</span></span><span>] = </span><span><span class="hljs-number">0x06</span></span><span>; </span><span><span class="hljs-comment">// C</span></span><span> </span></span></code></div></div></pre>

在「键盘描述符」下：

✔ 这是 Ctrl + C

在「鼠标描述符」下：

  • Byte0 → 鼠标按键
  • Byte1 → X 位移
  • Byte2 → Y 位移

👉 所以 鼠标动了

七、正确修复步骤（按顺序）

① 确认 HID 类型

在 CubeMX：

  • Middleware → USB_DEVICE
  • 确认选的是 HID（Keyboard），不是 Mouse

⚠ 有些 CubeMX 版本：

  • HID 默认是 Mouse
  • 需要手动切到 Keyboard

② 强制检查 / 修改 Report Descriptor

直接改 usbd_hid.c，确保是 Keyboard

③ 重新生成代码 → 重新下载

④ 拔 USB → 重插（必须）

Windows 会缓存 HID 类型。

八、最终一句话（你现在的问题本质）

**HID 行为完全由 Report Descriptor 决定。

你现在的 Descriptor 是“鼠标”，但你在发“键盘数据”。**

把 Descriptor 改成 Keyboard ，

你 一行发送代码都不用改 ，CTRL+C 会立刻生效。

如果你愿意，下一步我可以：

  • 直接帮你 确认你当前那份 Descriptor 是 Mouse 还是 Keyboard
  • 或一步步带你 把 CubeMX 的 HID 切成 Keyboard 模板
  • 或直接帮你 升级成 Keyboard + Custom HID 复合设备

ALIGN_BEGIN static uint8_t USBD_HID_CfgFSDesc[USB_HID_CONFIG_DESC_SIZ] ALIGN_END = { 0x09, / bLength: Configuration Descriptor size / USB_DESC_TYPE_CONFIGURATION, / bDescriptorType: Configuration / USB_HID_CONFIG_DESC_SIZ, / wTotalLength: Bytes returned / 0x00, 0x01, /bNumInterfaces: 1 interface/ 0x01, /bConfigurationValue: Configuration value/ 0x00, /iConfiguration: Index of string descriptor describing the configuration/ 0xE0, /bmAttributes: bus powered and Support Remote Wake-up / 0x32, /MaxPower 100 mA: this current is used for detecting Vbus/

/** Descriptor of Joystick Mouse interface ****/ / 09 / 0x09, /bLength: Interface Descriptor size/ USB_DESC_TYPE_INTERFACE,/bDescriptorType: Interface descriptor type/ 0x00, /bInterfaceNumber: Number of Interface/ 0x00, /bAlternateSetting: Alternate setting/ 0x01, /bNumEndpoints/ 0x03, /bInterfaceClass: HID/ 0x01, /bInterfaceSubClass : 1=BOOT, 0=no boot/ 0x02, /nInterfaceProtocol : 0=none, 1=keyboard, 2=mouse/ 0, /iInterface: Index of string descriptor/ /**** Descriptor of Joystick Mouse HID ****/ / 18 / 0x09, /bLength: HID Descriptor size/ HID_DESCRIPTOR_TYPE, /bDescriptorType: HID/ 0x11, /bcdHID: HID Class Spec release number/ 0x01, 0x00, /bCountryCode: Hardware target country/ 0x01, /bNumDescriptors: Number of HID class descriptors to follow/ 0x22, /bDescriptorType/ HID_MOUSE_REPORT_DESC_SIZE,/wItemLength: Total length of Report descriptor/ 0x00, /**** Descriptor of Mouse endpoint ****/ / 27 / 0x07, /bLength: Endpoint Descriptor size/ USB_DESC_TYPE_ENDPOINT, /bDescriptorType:/

HID_EPIN_ADDR, /bEndpointAddress: Endpoint Address (IN)/ 0x03, /bmAttributes: Interrupt endpoint/ HID_EPIN_SIZE, /wMaxPacketSize: 4 Byte max / 0x00, HID_FS_BINTERVAL, /bInterval: Polling Interval / / 34 / };

很好，这段代码已经把“问题的根因”完全暴露出来了 。

结论非常明确，我先给结论，再逐字节对你这段描述符做“对号入座”的解释，最后给最小修改方案 。

一、结论（一句话）

你现在枚举出来的 USB 设备是「HID Mouse（鼠标）」而不是「HID Keyboard（键盘）」

所以你发送的 0x01 / 0x06 被主机当成了 鼠标按键 / 位移 ，

这就是为什么会出现“鼠标下移、点击”的行为。

二、直接证据（就在你贴的代码里）

1️⃣ 接口协议字段 —— 明确写着 Mouse

<pre class="overflow-visible! px-0!" data-start="296" data-end="456"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span><span class="hljs-number">0x03</span></span><span>, </span><span><span class="hljs-comment">/bInterfaceClass: HID/</span></span><span> </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-comment">/bInterfaceSubClass : 1=BOOT/</span></span><span> </span><span><span class="hljs-number">0x02</span></span><span>, </span><span><span class="hljs-comment">/nInterfaceProtocol : 0=none, 1=keyboard, 2=mouse/</span></span><span> </span></span></code></div></div></pre>

👉 0x02 = Mouse

如果是键盘，这里必须是 ：

<pre class="overflow-visible! px-0!" data-start="499" data-end="526"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span><span class="hljs-number">0x01</span></span><span> </span><span><span class="hljs-comment">// Keyboard</span></span><span> </span></span></code></div></div></pre>

2️⃣ HID 描述符里用的是「鼠标报告描述符」

<pre class="overflow-visible! px-0!" data-start="563" data-end="598"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span>HID_MOUSE_REPORT_DESC_SIZE </span></span></code></div></div></pre>

👉 这说明你当前绑定的是 Mouse Report Descriptor

而不是 Keyboard 的 8 字节报告。

3️⃣ 端点最大包长也是鼠标的典型值

<pre class="overflow-visible! px-0!" data-start="697" data-end="753"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span>HID_EPIN_SIZE, </span><span><span class="hljs-comment">/ wMaxPacketSize: 4 Byte max /</span></span><span> </span></span></code></div></div></pre>

  • 鼠标：4 字节
  • 键盘：8 字节

👉 你现在的端点尺寸 100% 是鼠标配置

4️⃣ 注释已经把答案写出来了（非常诚实）

<pre class="overflow-visible! px-0!" data-start="844" data-end="925"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span><span class="hljs-comment">/** Descriptor of Joystick Mouse interface ****/</span></span><span> </span></span></code></div></div></pre>

三、为什么你“代码发 Ctrl+C，但系统却动鼠标”

你现在的 HID 语义是这样的：

Byte 在「鼠标」里的含义
Byte0 鼠标按键（Left / Right / Middle）
Byte1 X 位移
Byte2 Y 位移
Byte3 Wheel

而你发的是：

<pre class="overflow-visible! px-0!" data-start="1115" data-end="1194"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span>hid_report[</span><span><span class="hljs-number">0</span></span><span>] = </span><span><span class="hljs-number">0x01</span></span><span>; </span><span><span class="hljs-comment">// 被当成：鼠标左键</span></span><span> hid_report[</span><span><span class="hljs-number">2</span></span><span>] = </span><span><span class="hljs-number">0x06</span></span><span>; </span><span><span class="hljs-comment">// 被当成：Y 轴向下移动</span></span><span> </span></span></code></div></div></pre>

👉 现象完全对得上

四、你现在有两个修复路径（选一个）

✅ 方案 A（最“正统”、最省事，强烈推荐）

👉 直接把 HID 改成「Keyboard」

你要做的事情只有 4 步。

🔧 ① 修改接口协议：Mouse → Keyboard

<pre class="overflow-visible! px-0!" data-start="1354" data-end="1416"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span><span class="hljs-comment">// 原来</span></span><span> </span><span><span class="hljs-number">0x02</span></span><span>, </span><span><span class="hljs-comment">/ Mouse /</span></span><span>

</span><span><span class="hljs-comment">// 改成</span></span><span> </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-comment">/ Keyboard /</span></span><span> </span></span></code></div></div></pre>

🔧 ② 换成键盘 Report Descriptor

把：

<pre class="overflow-visible! px-0!" data-start="1460" data-end="1495"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span>HID_MOUSE_REPORT_DESC_SIZE </span></span></code></div></div></pre>

换成：

<pre class="overflow-visible! px-0!" data-start="1502" data-end="1540"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span>HID_KEYBOARD_REPORT_DESC_SIZE </span></span></code></div></div></pre>

并确保你工程里有 Keyboard 的 Report Descriptor 。

🔧 ③ 改端点最大包长为 8

<pre class="overflow-visible! px-0!" data-start="1612" data-end="1657"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span><span class="hljs-comment">// 原来</span></span><span> HID_EPIN_SIZE </span><span><span class="hljs-comment">// = 4</span></span><span>

</span><span><span class="hljs-comment">// 改为</span></span><span> </span><span><span class="hljs-number">8</span></span><span> </span></span></code></div></div></pre>

🔧 ④ 拔 USB → 重新插（非常重要）

Windows 会缓存 HID 类型，不拔不行。

✅ 方案 B（不推荐，仅用于理解）

继续当鼠标用，但“伪造鼠标动作”

❌ 完全不适合你

❌ 和你目标（Ctrl+C）背道而驰

👉 忽略

五、标准 HID Keyboard 接口应长什么样（对照用）

<pre class="overflow-visible! px-0!" data-start="1848" data-end="2215"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span><span class="hljs-comment">/ Interface Descriptor /</span></span><span> </span><span><span class="hljs-number">0x09</span></span><span>, USB_DESC_TYPE_INTERFACE, </span><span><span class="hljs-number">0x00</span></span><span>, </span><span><span class="hljs-number">0x00</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-number">0x03</span></span><span>, </span><span><span class="hljs-comment">// HID</span></span><span> </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-comment">// BOOT</span></span><span> </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-comment">// KEYBOARD</span></span><span> </span><span><span class="hljs-number">0x00</span></span><span>,

</span><span><span class="hljs-comment">/ HID Descriptor /</span></span><span> </span><span><span class="hljs-number">0x09</span></span><span>, HID_DESCRIPTOR_TYPE, </span><span><span class="hljs-number">0x11</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-number">0x00</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-number">0x22</span></span><span>, HID_KEYBOARD_REPORT_DESC_SIZE, </span><span><span class="hljs-number">0x00</span></span><span>,

</span><span><span class="hljs-comment">/ Endpoint /</span></span><span> </span><span><span class="hljs-number">0x07</span></span><span>, USB_DESC_TYPE_ENDPOINT, HID_EPIN_ADDR, </span><span><span class="hljs-number">0x03</span></span><span>, </span><span><span class="hljs-number">0x08</span></span><span>, </span><span><span class="hljs-number">0x00</span></span><span>, </span><span><span class="hljs-comment">// 8 bytes</span></span><span> HID_FS_BINTERVAL, </span></span></code></div></div></pre>

六、总结（非常关键）

**HID 里，“你发什么数据”不重要，

“你在描述符里说自己是什么”才重要。**

你现在：

  • 描述符：Mouse
  • 行为：Mouse（完全正确）
  • 但期望：Keyboard

👉 不是 USB 发错了，是“身份声明错了”

七、下一步我可以直接帮你做的事

如果你愿意，我可以：

  1. 直接给你一份“最小可用的 HID Keyboard 描述符” （可直接替换）
  2. 帮你确认 CubeMX 有没有被生成成 Mouse 模板
  3. 帮你一步升级到 Keyboard + Custom HID 复合设备

你只要说一句：

👉「我想用 CubeMX 继续生成，还是手改描述符？」

我：HID_KEYBOARD_REPORT_DESC_SIZE undeclared

这个报错非常正常，而且信息量很大 ，说明你已经走到“从 Mouse 切到 Keyboard 的关键一步”了。

一、结论先给出

**HID_KEYBOARD_REPORT_DESC_SIZE 未定义，说明：

你当前这个工程的 USB HID 库“只提供了 Mouse 模板”，并没有包含 Keyboard 模板。**

所以：

  • 不是你写错

  • 不是 MDK 问题

  • 不是 USB 问题

    👉 是 CubeMX 给你生成的是「Mouse 工程骨架」

二、为什么会这样（原理）

在 STM32 USB Device Library 里：

  • Mouse
    • 有： <pre class="overflow-visible! px-0!" data-start="338" data-end="408"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span>HID_MOUSE_REPORT_DESC_SIZE HID_MOUSE_ReportDesc[] </span></span></code></div></div></pre>
  • Keyboard
    • 只有在「Keyboard 示例 / 模板」里才会有： <pre class="overflow-visible! px-0!" data-start="459" data-end="535"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span>HID_KEYBOARD_REPORT_DESC_SIZE HID_KEYBOARD_ReportDesc[] </span></span></code></div></div></pre>

而你现在的工程：

  • usbd_hid.c
  • usbd_hid_if.c

👉 只带了 Mouse 那一套宏和描述符

所以编译器非常诚实地告诉你：

<pre class="overflow-visible! px-0!" data-start="623" data-end="683"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre!"><span><span><span class="hljs-attr">undeclared identifier:</span></span><span> </span><span><span class="hljs-string">HID_KEYBOARD_REPORT_DESC_SIZE</span></span><span> </span></span></code></div></div></pre>

三、正确解决方案（推荐顺序）

你有 两种正解 ，我按工程规范程度 排序。

✅ 方案 A（最推荐）：自己补一套 Keyboard 描述符

这是最干净、最可控、最工程化 的做法。

① 在 usbd_hid.c（或 usbd_hid_if.c）里新增键盘 Report Descriptor

<pre class="overflow-visible! px-0!" data-start="866" data-end="1539"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span>ALIGN_BEGIN </span><span><span class="hljs-type">static</span></span><span> </span><span><span class="hljs-type">uint8_t</span></span><span> HID_Keyboard_ReportDesc[] ALIGN_END = { </span><span><span class="hljs-number">0x05</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-comment">// Usage Page (Generic Desktop)</span></span><span> </span><span><span class="hljs-number">0x09</span></span><span>, </span><span><span class="hljs-number">0x06</span></span><span>, </span><span><span class="hljs-comment">// Usage (Keyboard)</span></span><span> </span><span><span class="hljs-number">0xA1</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-comment">// Collection (Application)</span></span><span> </span><span><span class="hljs-number">0x05</span></span><span>, </span><span><span class="hljs-number">0x07</span></span><span>, </span><span><span class="hljs-comment">// Usage Page (Key Codes)</span></span><span> </span><span><span class="hljs-number">0x19</span></span><span>, </span><span><span class="hljs-number">0xE0</span></span><span>, </span><span><span class="hljs-comment">// Usage Minimum (224)</span></span><span> </span><span><span class="hljs-number">0x29</span></span><span>, </span><span><span class="hljs-number">0xE7</span></span><span>, </span><span><span class="hljs-comment">// Usage Maximum (231)</span></span><span> </span><span><span class="hljs-number">0x15</span></span><span>, </span><span><span class="hljs-number">0x00</span></span><span>, </span><span><span class="hljs-number">0x25</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-number">0x75</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-number">0x95</span></span><span>, </span><span><span class="hljs-number">0x08</span></span><span>, </span><span><span class="hljs-number">0x81</span></span><span>, </span><span><span class="hljs-number">0x02</span></span><span>, </span><span><span class="hljs-comment">// Input (Modifier)</span></span><span> </span><span><span class="hljs-number">0x95</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-number">0x75</span></span><span>, </span><span><span class="hljs-number">0x08</span></span><span>, </span><span><span class="hljs-number">0x81</span></span><span>, </span><span><span class="hljs-number">0x01</span></span><span>, </span><span><span class="hljs-comment">// Input (Reserved)</span></span><span> </span><span><span class="hljs-number">0x95</span></span><span>, </span><span><span class="hljs-number">0x06</span></span><span>, </span><span><span class="hljs-number">0x75</span></span><span>, </span><span><span class="hljs-number">0x08</span></span><span>, </span><span><span class="hljs-number">0x15</span></span><span>, </span><span><span class="hljs-number">0x00</span></span><span>, </span><span><span class="hljs-number">0x25</span></span><span>, </span><span><span class="hljs-number">0x65</span></span><span>, </span><span><span class="hljs-number">0x05</span></span><span>, </span><span><span class="hljs-number">0x07</span></span><span>, </span><span><span class="hljs-number">0x19</span></span><span>, </span><span><span class="hljs-number">0x00</span></span><span>, </span><span><span class="hljs-number">0x29</span></span><span>, </span><span><span class="hljs-number">0x65</span></span><span>, </span><span><span class="hljs-number">0x81</span></span><span>, </span><span><span class="hljs-number">0x00</span></span><span>, </span><span><span class="hljs-comment">// Input (Key array)</span></span><span> </span><span><span class="hljs-number">0xC0</span></span><span> }; </span></span></code></div></div></pre>

② 自己定义 HID_KEYBOARD_REPORT_DESC_SIZE

在同一个文件顶部加：

<pre class="overflow-visible! px-0!" data-start="1602" data-end="1683"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span><span class="hljs-meta">#<span class="hljs-keyword">define</span></span></span><span> HID_KEYBOARD_REPORT_DESC_SIZE (sizeof(HID_Keyboard_ReportDesc)) </span></span></code></div></div></pre>

👉 这一步就是你现在缺的

③ 在配置描述符里用它

把你原来的：

<pre class="overflow-visible! px-0!" data-start="1734" data-end="1769"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span>HID_MOUSE_REPORT_DESC_SIZE </span></span></code></div></div></pre>

改成：

<pre class="overflow-visible! px-0!" data-start="1776" data-end="1814"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span>HID_KEYBOARD_REPORT_DESC_SIZE </span></span></code></div></div></pre>

④ 同时把端点包长改为 8 字节

<pre class="overflow-visible! px-0!" data-start="1843" data-end="1886"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span><span class="hljs-number">0x08</span></span><span>, </span><span><span class="hljs-number">0x00</span></span><span> </span><span><span class="hljs-comment">// wMaxPacketSize = 8</span></span><span> </span></span></code></div></div></pre>

✅ 方案 B（偷懒但可行）：直接“硬编码 size”

不推荐长期用，但验证阶段可以。

<pre class="overflow-visible! px-0!" data-start="1941" data-end="1990"><div class="contain-inline-size rounded-2xl corner-superellipse/1.1 relative bg-token-sidebar-surface-primary"><div class="@w-xl/main:top-9 sticky top-[calc(--spacing(9)+var(--header-height))]"><div class="absolute end-0 bottom-0 flex h-9 items-center pe-2"><div class="bg-token-bg-elevated-secondary text-token-text-secondary flex items-center gap-4 rounded-sm px-2 font-sans text-xs"></div></div></div><div class="overflow-y-auto p-4" dir="ltr"><code class="whitespace-pre! language-c"><span><span><span class="hljs-meta">#<span class="hljs-keyword">define</span></span></span><span> HID_KEYBOARD_REPORT_DESC_SIZE 63 </span></span></code></div></div></pre>

（上面这套键盘描述符长度正好是 63 字节 ）

⚠ 缺点：

  • 不可维护
  • 改描述符就忘记同步 size

❌ 不推荐的做法

  • ❌ 试图在 usbd_hid.h 里“找现成宏”
  • ❌ 继续混用 Mouse 描述符 + Keyboard 数据
  • ❌ 以为 CubeMX 会自动帮你补 Keyboard（不会）

四、你现在这一步说明什么（其实是好消息）

说明你已经：

  • ✅ 正确定位到 HID 描述符层
  • ✅ 明白 Mouse / Keyboard 的本质区别
  • ✅ 不再纠结 USB / FS / 硬件

你现在做的事情，已经是 USB HID 的“真·工程层”了 。

五、最终检查清单（改完后必须对）

  1. bInterfaceProtocol = 0x01（Keyboard）
  2. Report Descriptor 是 Usage (Keyboard)
  3. wMaxPacketSize = 8
  4. 使用的是 HID_Keyboard_ReportDesc
  5. 拔 USB → 重新插

只要这 5 条满足：

**你之前写的 Send_Ctrl_C() 一行都不用改，

CTRL + C 会立刻变成真正的“复制”。**

六、下一步你可以怎么走

如果你愿意，我可以直接帮你：

  • 🔧 整理一份“最小 HID Keyboard 可编译工程结构”
  • 🔄 帮你把当前工程 彻底从 Mouse 改成 Keyboard
  • 🚀 或一步到位 Keyboard + Custom HID 复合设备

你只要告诉我一句：

👉「我想最少改代码跑起来」还是「我想把结构搞规范」。

到这里已经很清晰了，GPT也知道问题出现在设备描述符上面。但众所周知，CubeMX会非常无情的替换所有没写在UserCode区域文本。

于是我按照提示新建了usbd_hid_keyboard.h和usbd_hid_keyboard.c，并且做出如下修改：

在.h文件中

定义一个HID_EPIN_SIZE_KEYBOARD为0x08U，而不是鼠标的0x04U；

#define HID_EPIN_SIZE_KEYBOARD        0x08U

定义HID_KEYBOARD_REPORT_DESC_SIZE为63U；

#define HID_KEYBOARD_REPORT_DESC_SIZE    63U

将

extern USBD_ClassTypeDef  USBD_HID;
#define USBD_HID_CLASS    &USBD_HID

改为

extern USBD_ClassTypeDef  USBD_HID_KEYBOARD;
#define USBD_HID_KEYBOARD_CLASS    &USBD_HID_KEYBOARD

将函数声明

uint8_t USBD_HID_SendReport(USBD_HandleTypeDef *pdev,
                            uint8_t *report,
                            uint16_t len);

uint32_t USBD_HID_GetPollingInterval(USBD_HandleTypeDef *pdev);

改为

uint8_t USBD_HID_Keyboard_SendReport(USBD_HandleTypeDef *pdev,
                            uint8_t *report,
                            uint16_t len);

uint32_t USBD_HID_Keyboard_GetPollingInterval(USBD_HandleTypeDef *pdev);

在.c文件中

将类型定义

USBD_ClassTypeDef  USBD_HID =
{
  USBD_HID_Init,
  USBD_HID_DeInit,
  USBD_HID_Setup,
  NULL, /*EP0_TxSent*/
  NULL, /*EP0_RxReady*/
  USBD_HID_DataIn, /*DataIn*/
  NULL, /*DataOut*/
  NULL, /*SOF */
  NULL,
  NULL,
  USBD_HID_GetHSCfgDesc,
  USBD_HID_GetFSCfgDesc,
  USBD_HID_GetOtherSpeedCfgDesc,
  USBD_HID_GetDeviceQualifierDesc,
};

改为

USBD_ClassTypeDef  USBD_HID_KEYBOARD =
{
  USBD_HID_Init,
  USBD_HID_DeInit,
  USBD_HID_Setup,
  NULL, /*EP0_TxSent*/
  NULL, /*EP0_RxReady*/
  USBD_HID_DataIn, /*DataIn*/
  NULL, /*DataOut*/
  NULL, /*SOF */
  NULL,
  NULL,
  USBD_HID_GetHSCfgDesc,
  USBD_HID_GetFSCfgDesc,
  USBD_HID_GetOtherSpeedCfgDesc,
  USBD_HID_GetDeviceQualifierDesc,
};

将所有的

HID_MOUSE_REPORT_DESC_SIZE

替换为

HID_KEYBOARD_REPORT_DESC_SIZE

添加KEYBOARD的ReportDesc：

__ALIGN_BEGIN static uint8_t HID_KEYBOARD_ReportDesc[HID_KEYBOARD_REPORT_DESC_SIZE] __ALIGN_END =
 {
   0x05, 0x01, // USAGE_PAGE (Generic Desktop) //63
   0x09, 0x06, // USAGE (Keyboard)
   0xa1, 0x01, // COLLECTION (Application)
   0x05, 0x07, // USAGE_PAGE (Keyboard)
   0x19, 0xe0, // USAGE_MINIMUM (Keyboard LeftControl)
   0x29, 0xe7, // USAGE_MAXIMUM (Keyboard Right GUI)
   0x15, 0x00, // LOGICAL_MINIMUM (0)
   0x25, 0x01, // LOGICAL_MAXIMUM (1)
   0x75, 0x01, // REPORT_SIZE (1)
   0x95, 0x08, // REPORT_COUNT (8)
   0x81, 0x02, // INPUT (Data,Var,Abs)
   0x95, 0x01, // REPORT_COUNT (1)
   0x75, 0x08, // REPORT_SIZE (8)
   0x81, 0x03, // INPUT (Cnst,Var,Abs)
   0x95, 0x05, // REPORT_COUNT (5)
   0x75, 0x01, // REPORT_SIZE (1)
   0x05, 0x08, // USAGE_PAGE (LEDs)
   0x19, 0x01, // USAGE_MINIMUM (Num Lock)
   0x29, 0x05, // USAGE_MAXIMUM (Kana)
   0x91, 0x02, // OUTPUT (Data,Var,Abs)
   0x95, 0x01, // REPORT_COUNT (1)
   0x75, 0x03, // REPORT_SIZE (3)
   0x91, 0x03, // OUTPUT (Cnst,Var,Abs)
   0x95, 0x06, // REPORT_COUNT (6)
   0x75, 0x08, // REPORT_SIZE (8)
   0x15, 0x00, // LOGICAL_MINIMUM (0)
   0x25, 0x65, // LOGICAL_MAXIMUM (101)
   0x05, 0x07, // USAGE_PAGE (Keyboard)
   0x19, 0x00, // USAGE_MINIMUM (Reserved (no event indicated))
   0x29, 0x65, // USAGE_MAXIMUM (Keyboard Application)
   0x81, 0x00, // INPUT (Data,Ary,Abs)
   0xc0,       // END_COLLECTION
 };

一键搜索所有的

  0x02,         /*nInterfaceProtocol : 0=none, 1=keyboard, 2=mouse*/

换成0x01（鼠标）

在usb_device.c中：

在用户代码中添加下面内容，保证USBD_HID_KEYBOARD能够起效：

 if (USBD_Init(&hUsbDeviceFS, &FS_Desc, DEVICE_FS) != USBD_OK)
  {
    Error_Handler();
  }
  if (USBD_RegisterClass(&hUsbDeviceFS, &USBD_HID_KEYBOARD) != USBD_OK)
  {
    Error_Handler();
  }
  if (USBD_Start(&hUsbDeviceFS) != USBD_OK)
  {
    Error_Handler();
  }

完整的函数如下：

void MX_USB_DEVICE_Init(void)
{
  /* USER CODE BEGIN USB_DEVICE_Init_PreTreatment */

  /* USER CODE END USB_DEVICE_Init_PreTreatment */

  /* Init Device Library, add supported class and start the library. */
  if (USBD_Init(&hUsbDeviceFS, &FS_Desc, DEVICE_FS) != USBD_OK)
  {
    Error_Handler();
  }
  if (USBD_RegisterClass(&hUsbDeviceFS, &USBD_HID) != USBD_OK)
  {
    Error_Handler();
  }
  if (USBD_Start(&hUsbDeviceFS) != USBD_OK)
  {
    Error_Handler();
  }

  /* USER CODE BEGIN USB_DEVICE_Init_PostTreatment */
 if (USBD_Init(&hUsbDeviceFS, &FS_Desc, DEVICE_FS) != USBD_OK)
  {
    Error_Handler();
  }
  if (USBD_RegisterClass(&hUsbDeviceFS, &USBD_HID_KEYBOARD) != USBD_OK)
  {
    Error_Handler();
  }
  if (USBD_Start(&hUsbDeviceFS) != USBD_OK)
  {
    Error_Handler();
  }
  /* USER CODE END USB_DEVICE_Init_PostTreatment */
}

我将User按钮配置为Ctrl+c，实验结果证明可以完成复制的操作：

一段文本一段文本

赞 收藏 评论0 发布时间：2025-12-17 22:54

举报

0个回答

所属标签

相似分享

官网相关资源

关于
意法半导体
我们是谁
投资者关系
意法半导体可持续发展举措
创新与技术
意法半导体官网
联系我们
联系ST分支机构
寻找销售人员和分销渠道
社区
媒体中心
活动与培训
隐私策略
隐私策略
Cookies管理
行使您的权利
官方最新发布
STM32N6 AI生态系统
STM32MCU,MPU高性能GUI
ST ACEPACK电源模块
意法半导体生物传感器
STM32Cube扩展软件包
关注我们
st-img 微信公众号
st-img 手机版
